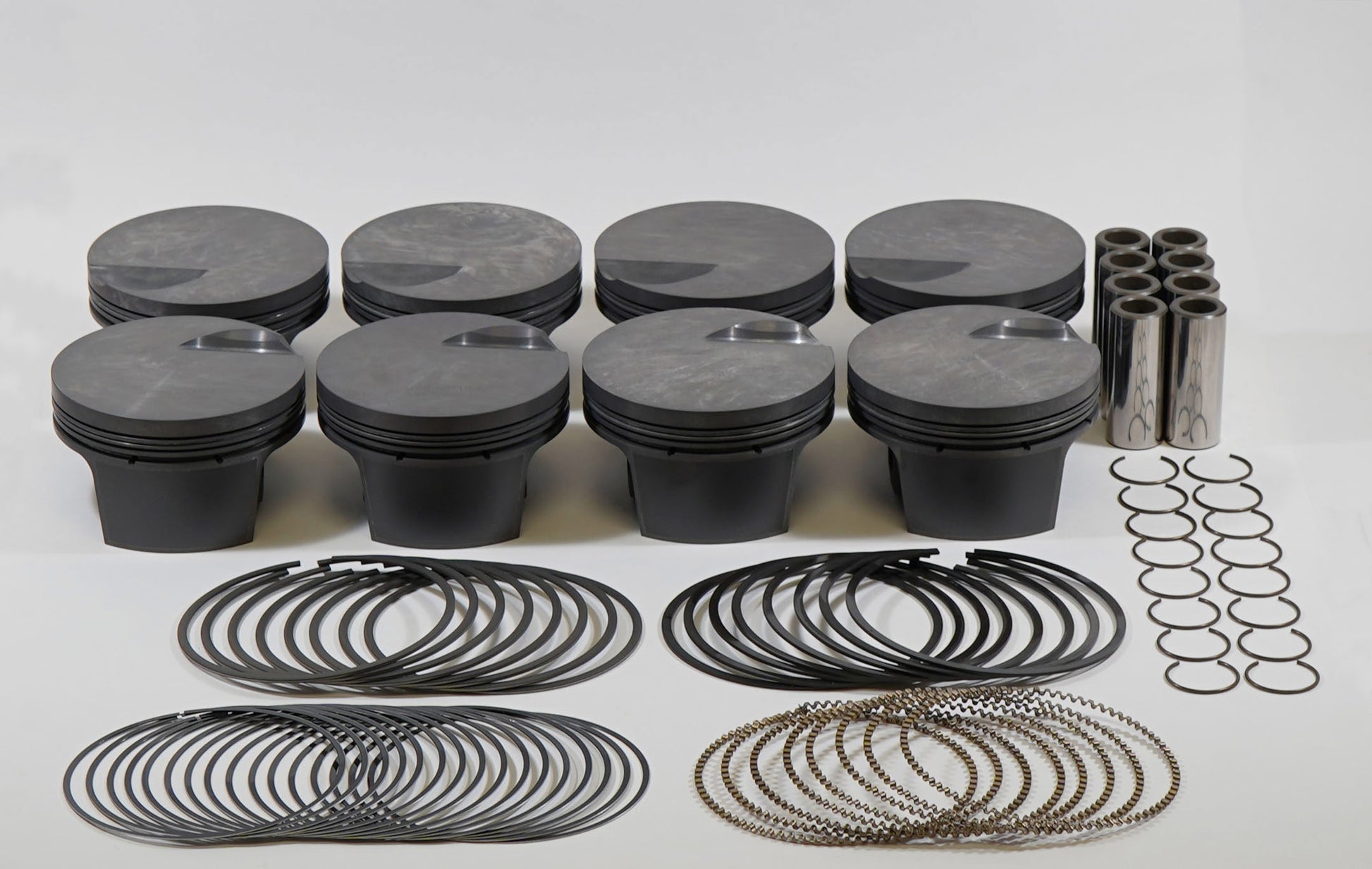

Mahle Motorsport 928906701T - Piston (set)
Piston (set) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
532cid 4.600 x 1.395CH, 4.000stroke,6.385rod,0.990pin,-3.4cc,565g,9.2CR, 4032, TBC coated
Piston Material: Forged, 4032
Piston Mass: 565g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 1.5mm
OCR Material: Chrome plated stainless steel
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.4cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
OCR Tension: Standard
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
