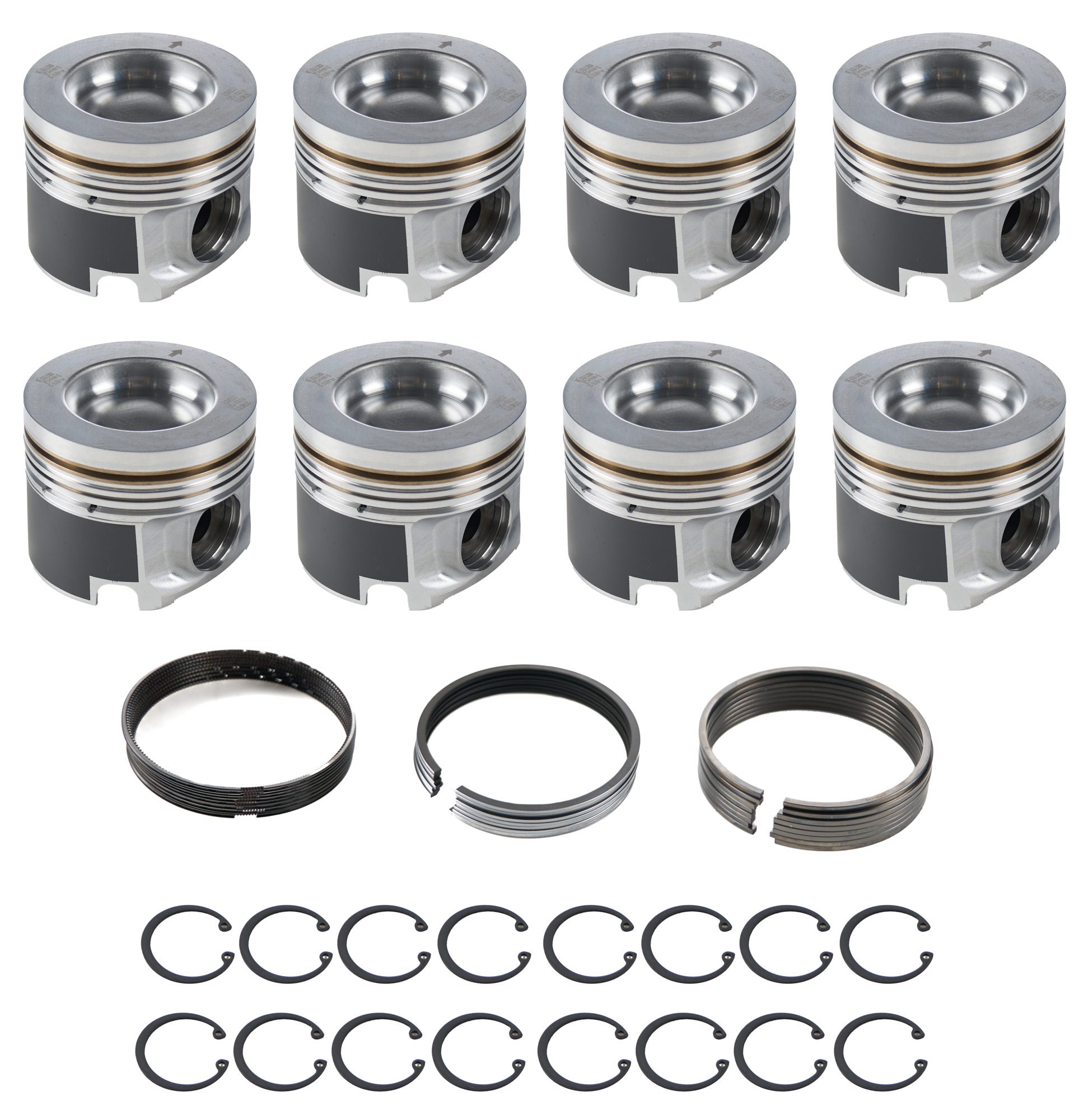

Mahle Motorsport 197987855 - Mahle MS GM 6.6L Duramax L5P 4.055in Bore 3.898in Stk 6.417in Rod 1.417 Pin -40.6cc 16.0 CR Set of 8
Mahle Motorsport 197987855 - Mahle MS GM 6.6L Duramax L5P 4.055in Bore 3.898in Stk 6.417in Rod 1.417 Pin -40.6cc 16.0 CR Set of 8
SKU: DGJH-197987855
Regular price
$1,667.99 USD
Regular price
$1,762.77 USD
Sale price
$1,667.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
Mahle Motorsport 197987855 - Mahle MS GM 6.6L Duramax L5P 4.055in Bore 3.898in Stk 6.417in Rod 1.417 Pin -40.6cc 16.0 CR Set of 8
Piston and Ring - PowerPak - Cast - Dish - 4.055 in Bore - 2.122 in Compression Height - 3 x 2 x 3.0 mm Ring Grooves - Minus 40.6 cc - GM Duramax - Kit
403cid 4.055 x 2.122CH, 3.898stroke,6.417rod,1.417pin,-40.6cc,925g,16.0CR, M174+
Pin Diameter: 36.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: N
Crown Volume: -40.6cc
UCR Thickness: 3.0mm Keystone
Clip Style: Snap Ring
Pin Wall Thickness: 0.345
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dish w/ NO Valve Reliefs
Piston Ring Thickness: K.0mm, 2.0mm, 3.0mm
Piston Material: Cast, M174+
Piston Mass: 925g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 468g
Pin Length: 78.5mm
