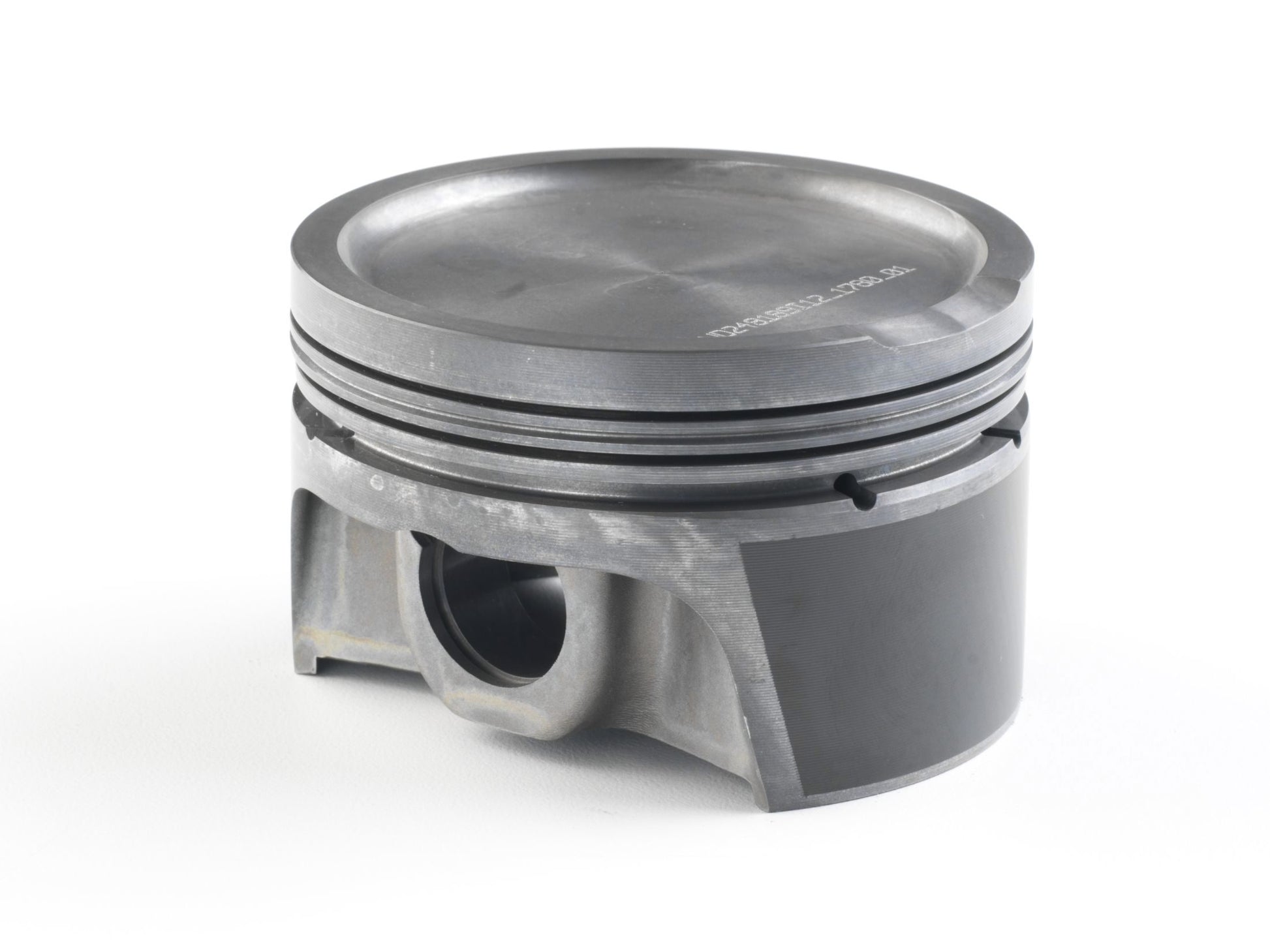

Mahle Motorsport 197915148T - Piston (set)
Mahle Motorsport 197915148T - Piston (set)
SKU: DGJH-197915148T
Regular price
$937.99 USD
Regular price
$1,107.68 USD
Sale price
$937.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 197915148T - Piston (set)
Piston (set) - AUDI DAZA / DNWA RS3 TTRS 2.5L TURBO
82.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,22mm pin,-5.0cc,322g,10.0CR, M142P, TBC coated
Clip Style: Round Wire
Pin Wall Thickness: 0.207
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, M142P
Piston Mass: 322g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 126g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 5
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -5.0cc
UCR Thickness: 1.0mm
