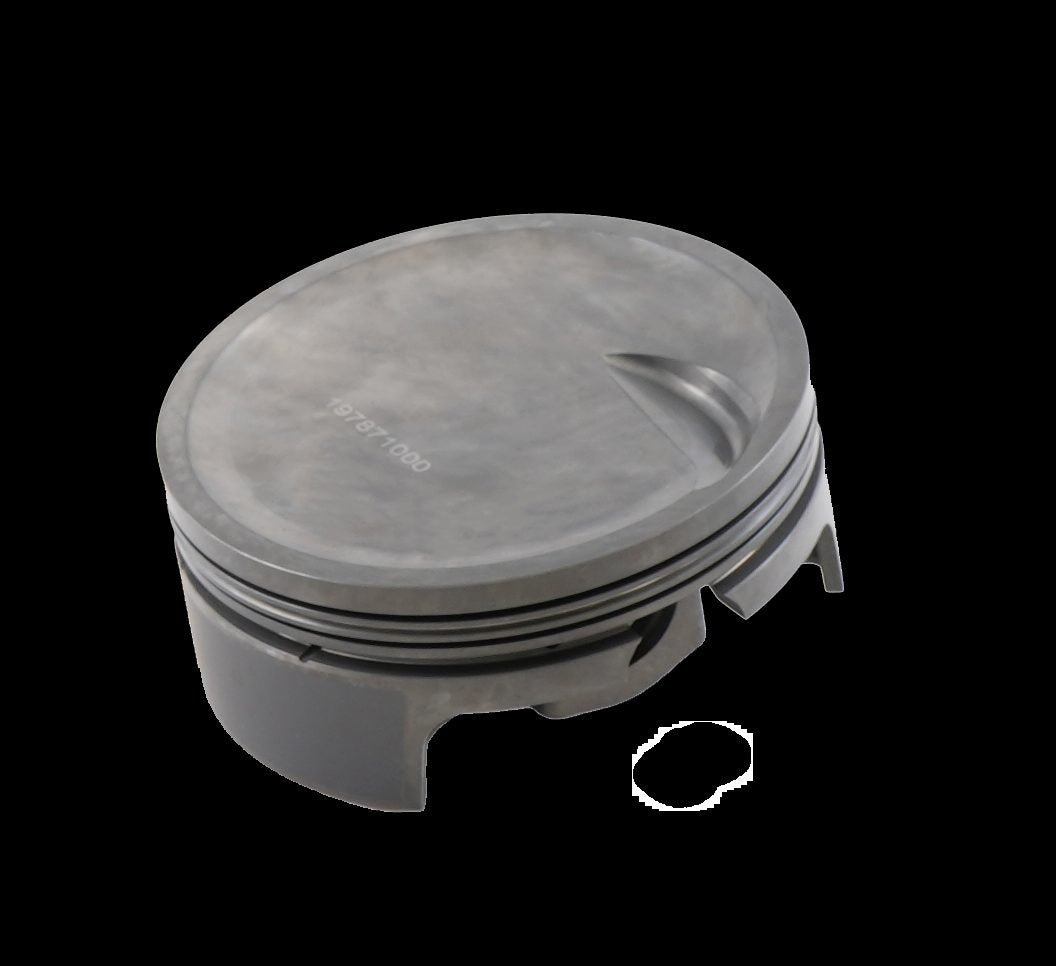

Mahle Motorsport 197871000-1 - Piston (each)
Piston (ea) - BIG BLOCK CHEVY DISH (TALL DECK 10.200)
632cid 4.600 x 1.120RCH, 4.750stroke,6.700rod,0.990pin,-18.0cc,533g,9.8CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: N
Piston Style: Dish, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 533g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -18.0cc
UCR Thickness: 1.5mm
