Mahle Motorsport 197836035-1 - Piston (each)
Mahle Motorsport 197836035-1 - Piston (each)
SKU: DGJH-197836035-1
Regular price
$102.99 USD
Regular price
$121.41 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

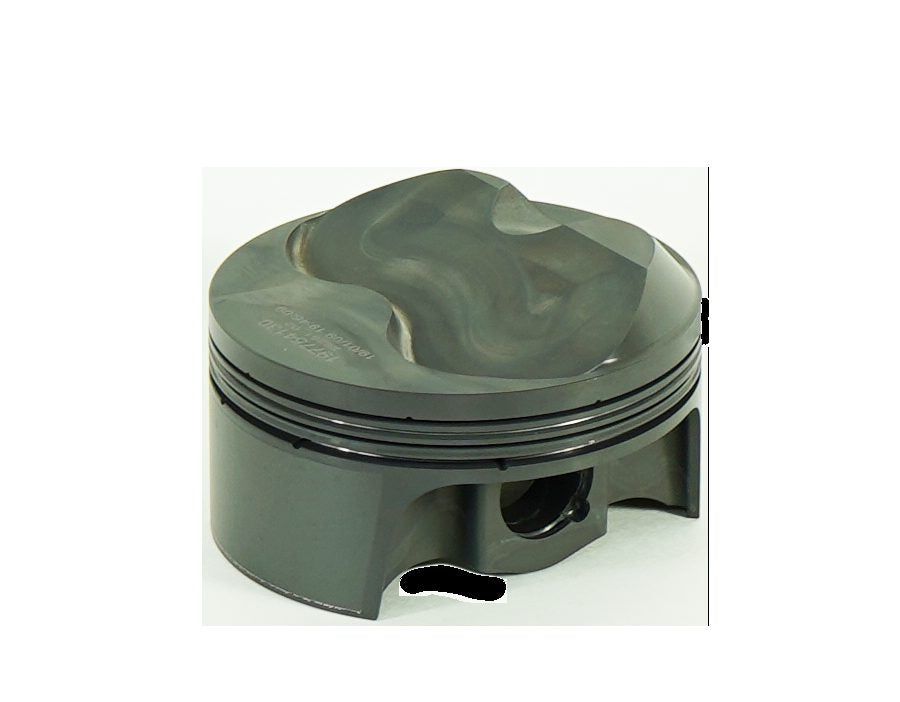

Mahle Motorsport 197836035-1 - Piston (each)
Piston (ea) - SMALL BLOCK CHEVY 23 Deg DOME
376cid 4.135 x 1.250CH, 3.500stroke,6.000rod,0.927pin,12.0cc,486g,13.7CR, 2618, SINGLE PISTON
Pin Length: 58.1mm
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 486g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Diameter: 23.55mm
UCR Coating: HV385
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 12.0cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
Rings Included: N
