Mahle Motorsport - 197800187

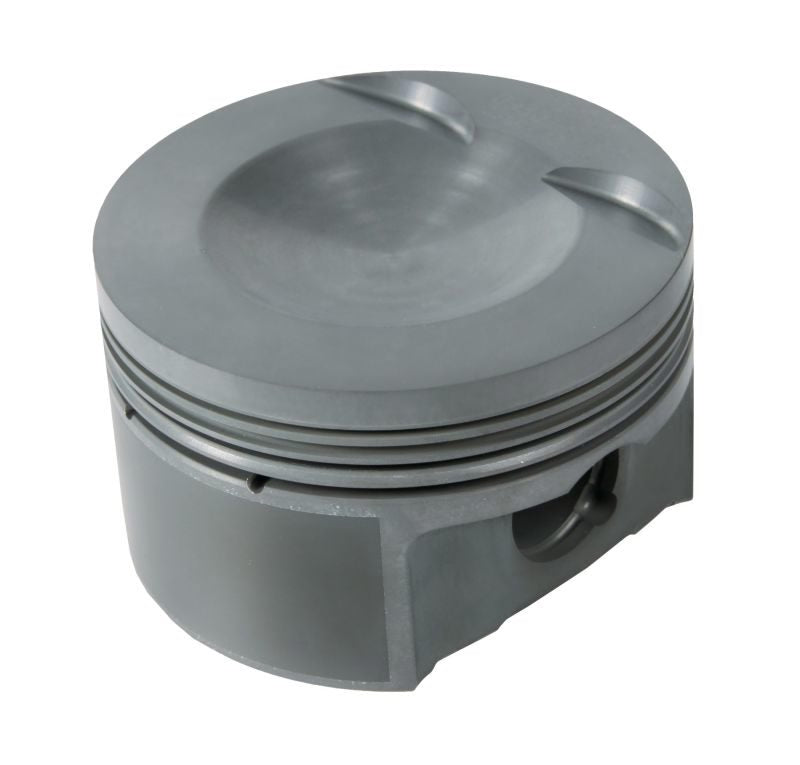

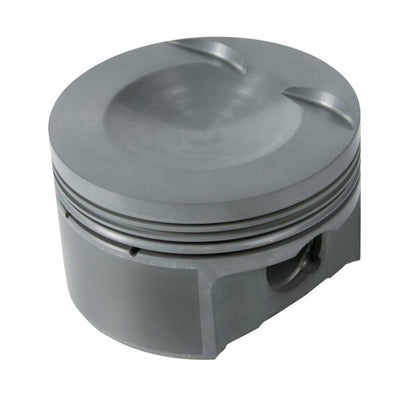

Mahle Motorsport Engine Piston Kit
VOLKSWAGEN TFSi EA113 (2006-2009) 2.0L TURBO 83.50mm x 29.6mm CH, 92.8mm stroke,144mm rod,20mm pin,-11.1cc,323g,9.4CR, M142P.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -11.1cc
Package Qty: Sold as a set of 4
Pin Diameter: 0.787
Pin Length: 2.323
Pin Mass: 106g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 323g
Piston Material: Forged, M142P
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Style: Dish, w/ 2 valve reliefs
Rings Included: Yes
