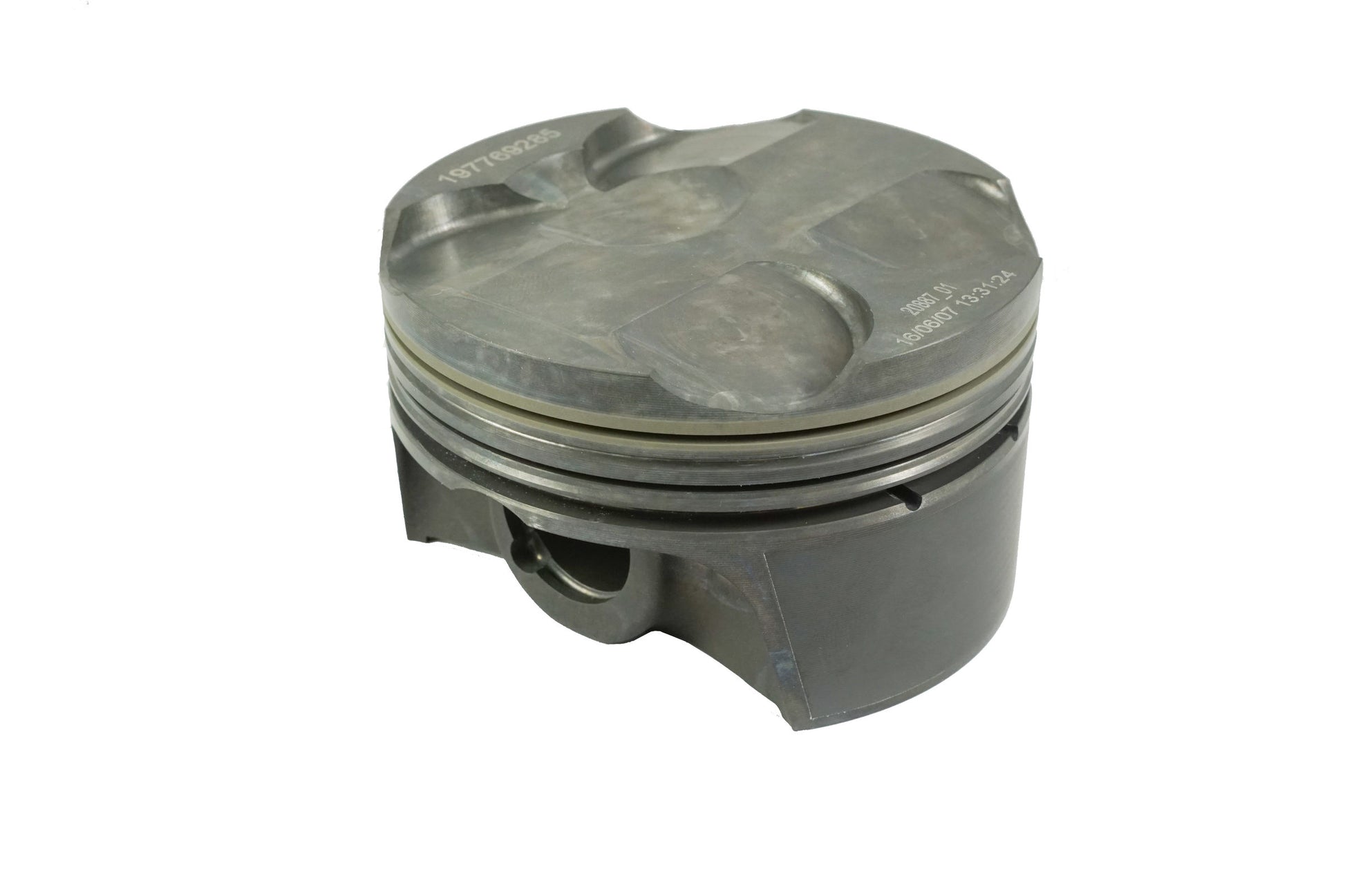

Mahle Motorsport 197769285-1 - Piston (each)
Mahle Motorsport 197769285-1 - Piston (each)
SKU: DGJH-197769285-1
Regular price
$163.99 USD
Regular price
$192.85 USD
Sale price
$163.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 197769285-1 - Piston (each)
Piston (ea) - SUBARU FA20 TURBO
86.00mm x 32.5mm CH, 86.0mm stroke,129.3mm rod,22mm pin,-8.0cc,320g,10.5CR, 2618, SINGLE PISTON
Pin Wall Thickness: 0.197
Crown Volume: -8.0cc
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Clips Included: N
Pins Included: N
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Flattop, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 320g
Pin Style: Floating
