Mahle Motorsport 197769285 - Mahle MS Piston Set Subaru FA20 TURBO 86mm Bore 86mm Stroke 129.3mm Rod -8cc 10.5 CR Set of 4
Mahle Motorsport 197769285 - Mahle MS Piston Set Subaru FA20 TURBO 86mm Bore 86mm Stroke 129.3mm Rod -8cc 10.5 CR Set of 4
SKU: DGJH-197769285
Regular price
$691.99 USD
Regular price
$806.70 USD
Sale price
$691.99 USD
Shipping calculated at checkout.
6 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

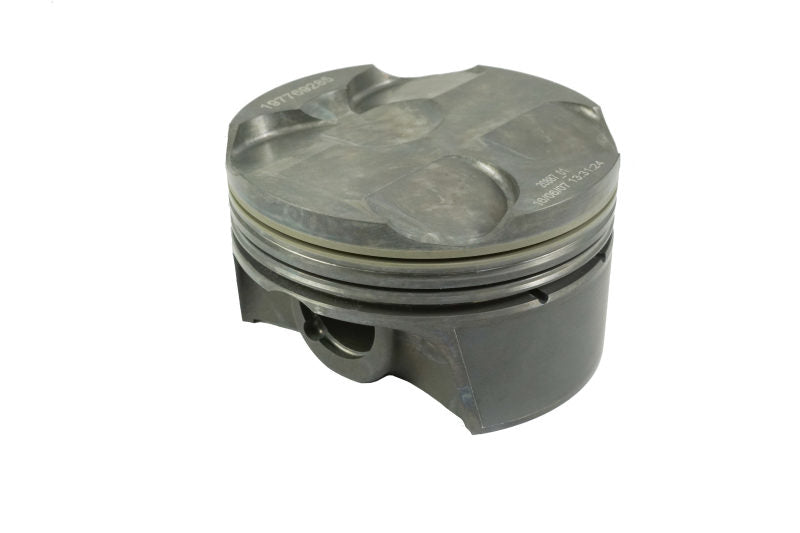

Mahle Motorsport 197769285 - Mahle MS Piston Set Subaru FA20 TURBO 86mm Bore 86mm Stroke 129.3mm Rod -8cc 10.5 CR Set of 4
Piston (set) - SUBARU FA20 TURBO
86.00mm x 32.5mm CH, 86.0mm stroke,129.3mm rod,22mm pin,-8.0cc,320g,10.5CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Flattop, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 320g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -8.0cc
UCR Thickness: 1.2mm
