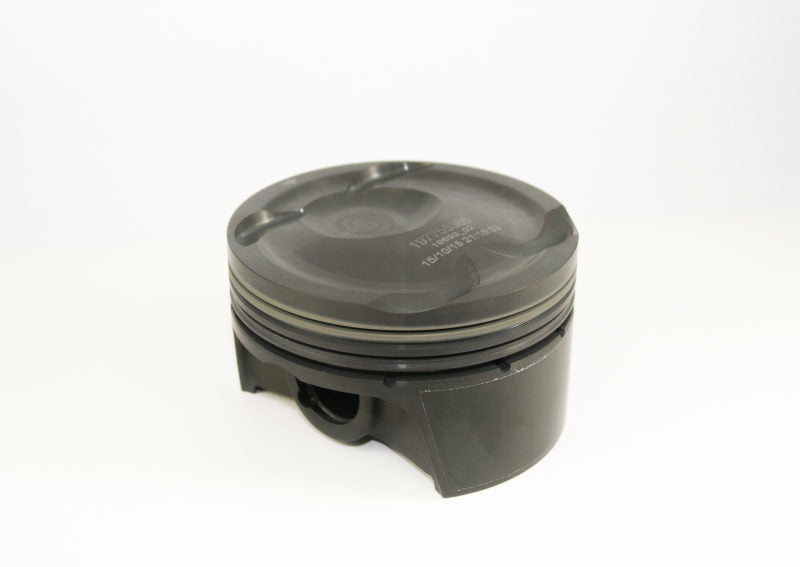

Mahle Motorsport 197755365 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.5 CR Set of 4
Mahle Motorsport 197755365 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.5 CR Set of 4
SKU: DGJH-197755365
Regular price
$806.99 USD
Regular price
$858.89 USD
Sale price
$806.99 USD
Shipping calculated at checkout.
6 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 197755365 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.5 CR Set of 4
Piston (set) - FORD EcoBoost 2.3L
88.00mm x 32.8mm CH, 94.0mm stroke,149.3mm rod,22.5mm pin,-6.5cc,382g,9.6CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 382g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 112g
Pin Length: 52.0mm
Pin Diameter: 22.5mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -6.5cc
UCR Thickness: 1.2mm
