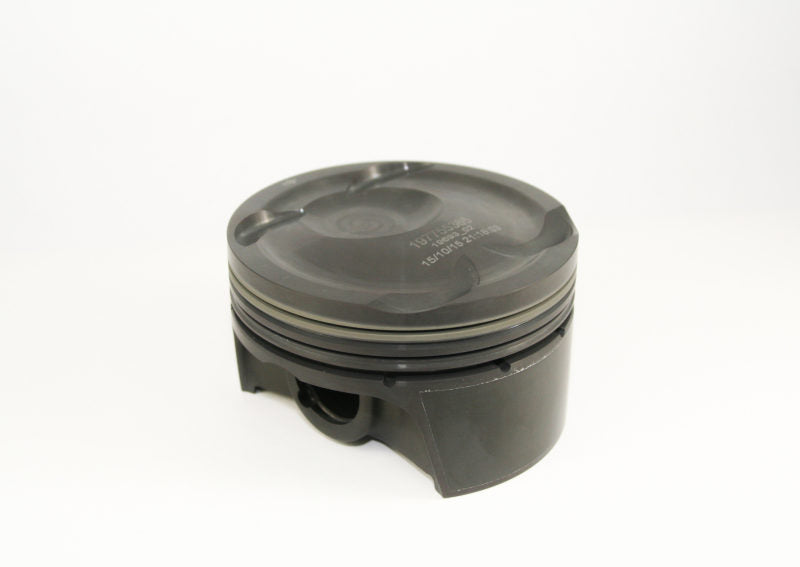

Mahle Motorsport 197755345 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.3 CR Set of 4
Mahle Motorsport 197755345 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.3 CR Set of 4
SKU: DGJH-197755345
Regular price
$818.99 USD
Regular price
$858.89 USD
Sale price
$818.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
Mahle Motorsport 197755345 - Mahle MS Piston Set Ford 2.3L EcoBoost 87.5mm Bore 83mm Stroke 156mm Rod -7cc 9.3 CR Set of 4
Piston and Ring - PowerPak - Dish - 87.51 mm Bore - 1.291 in Compression Height - 1.2 x 1.2 x 2.8 mm Ring Grooves - Minus 6.50 cc - Aluminum - Ford EcoBoost 4-Cylinder - Kit
87.51mm x 32.8mm CH, 94.0mm stroke,149.3mm rod,22.5mm pin,-6.5cc,376g,9.5CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 376g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 112g
Pin Length: 52.0mm
Pin Diameter: 22.5mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -6.5cc
UCR Thickness: 1.2mm
