Mahle Motorsport 197754925 - Piston (set)
Mahle Motorsport 197754925 - Piston (set)
SKU: DGJH-197754925
Regular price
$1,021.99 USD
Regular price
$1,190.05 USD
Sale price
$1,021.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability

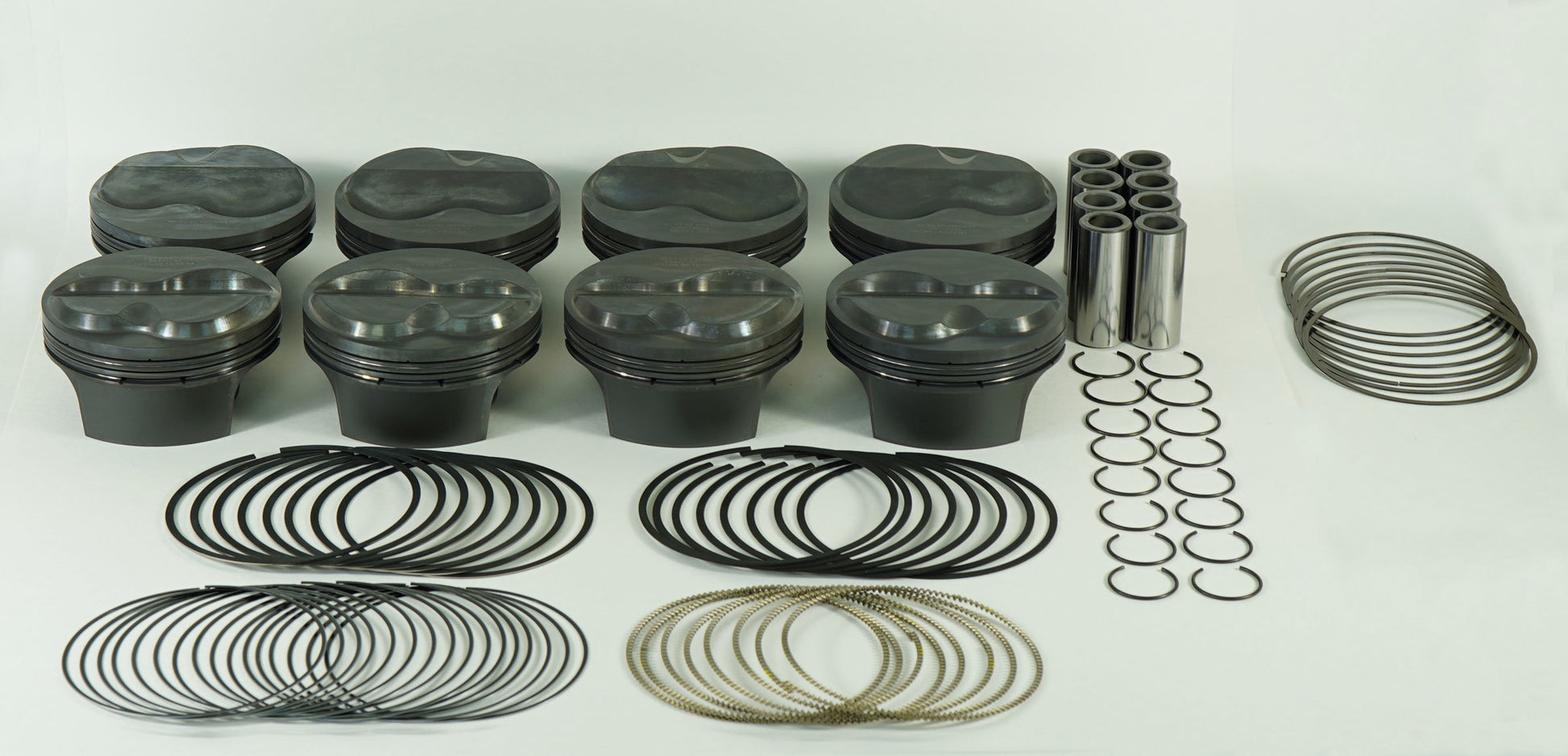

Mahle Motorsport 197754925 - Piston (set)
Piston and Ring - PowerPak - Flat Top - 4.125 in Bore - 1.062 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 4.00 cc - Oil Support Rails Included - Small Block Chevy - Kit
388cid 4.125 x 1.062RCH, 3.625stroke,6.125rod,0.927pin,4.0cc,428g,12.5CR, 2618
OCR Material: Chrome plated stainless steel
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 4.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
OCR Tension: Standard
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 428g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
LCR Thickness: 1.0mm
