Mahle Motorsport 197754755 - Mahle MS Chevrolet Small Block 393cid 4.155 x 1.062RCH 9.0cc 13.6CR Pistons (Set of 8)
Mahle Motorsport 197754755 - Mahle MS Chevrolet Small Block 393cid 4.155 x 1.062RCH 9.0cc 13.6CR Pistons (Set of 8)
SKU: DGJH-197754755
Regular price
$1,006.99 USD
Regular price
$1,094.85 USD
Sale price
$1,006.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 197754755 - Mahle MS Chevrolet Small Block 393cid 4.155 x 1.062RCH 9.0cc 13.6CR Pistons (Set of 8)
Piston and Ring - PowerPak - Dome - 4.155 in Bore - 1.0 x 1.0 x 2.0 mm Ring Groove - Plus 9.00 cc - Small Block Chevy - Kit
393cid 4.155 x 1.062RCH, 3.625stroke,6.125rod,0.927pin,9.0cc,452g,13.6CR, 2618
File Fit: Y
Crown Volume: 9.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
OCR Tension: Standard

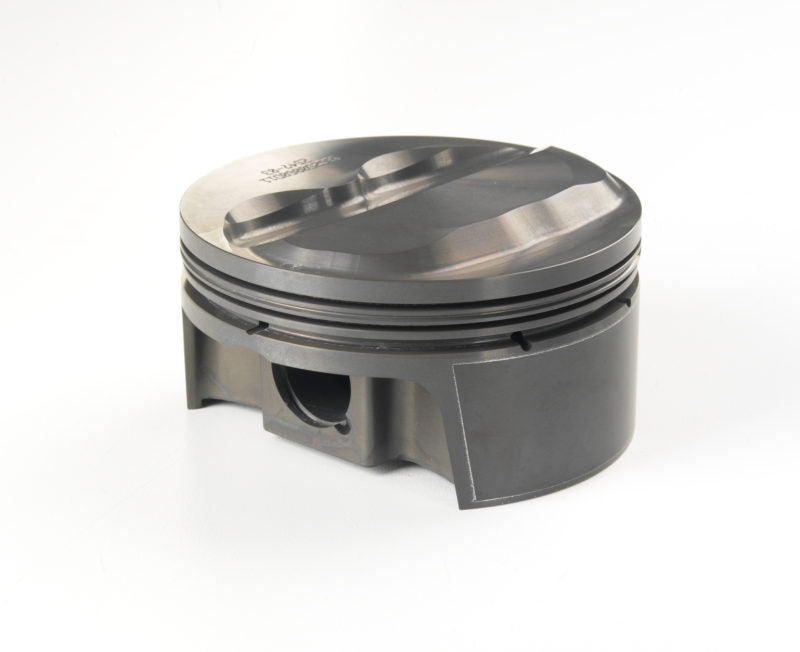

Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 452g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm

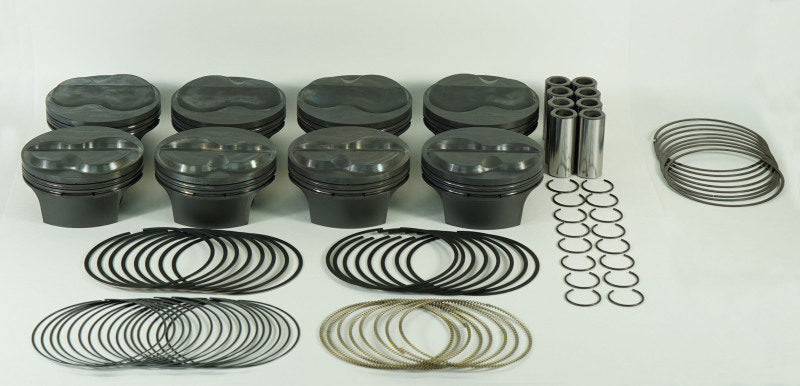

Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
LCR Thickness: 1.0mm
OCR Material: Chrome plated stainless steel
LCR Material: 9254 Steel
LCR Coating: Phosphate
