Mahle Motorsport 197754735 - Mahle MS Piston Set Chevy SB 389ci 4.135in Bore 3.625/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.5CR
Mahle Motorsport 197754735 - Mahle MS Piston Set Chevy SB 389ci 4.135in Bore 3.625/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.5CR
SKU: DGJH-197754735
Regular price
$956.99 USD
Regular price
$1,094.85 USD
Sale price
$956.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
Mahle Motorsport 197754735 - Mahle MS Piston Set Chevy SB 389ci 4.135in Bore 3.625/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.5CR

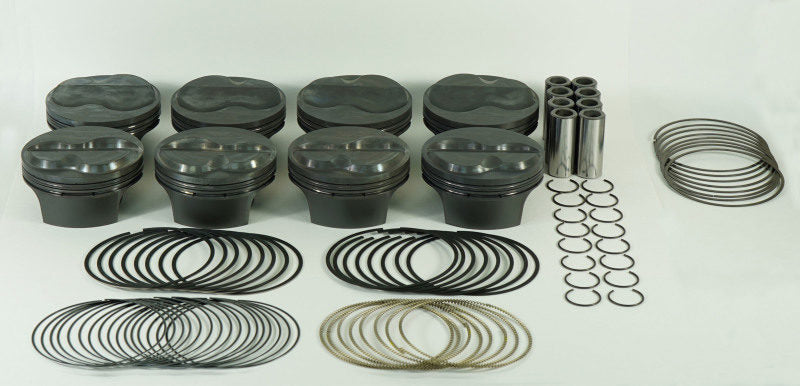

Piston and Ring - PowerPak - Dome - 4.135 in Bore - 1.062 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 9.00 cc - Small Block Chevy - Kit
389cid 4.135 x 1.062RCH, 3.625stroke,6.125rod,0.927pin,9.0cc,445g,13.5CR, 2618

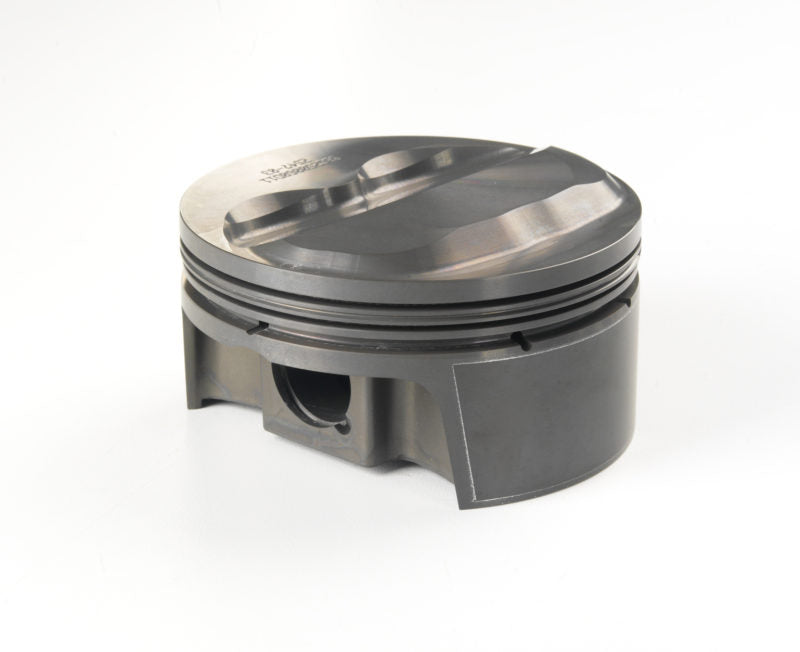

Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 445g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 9.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
