Mahle Motorsport 197754555 - Piston (set)
Mahle Motorsport 197754555 - Piston (set)
SKU: DGJH-197754555
Regular price
$918.99 USD
Regular price
$1,145.39 USD
Sale price
$918.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability

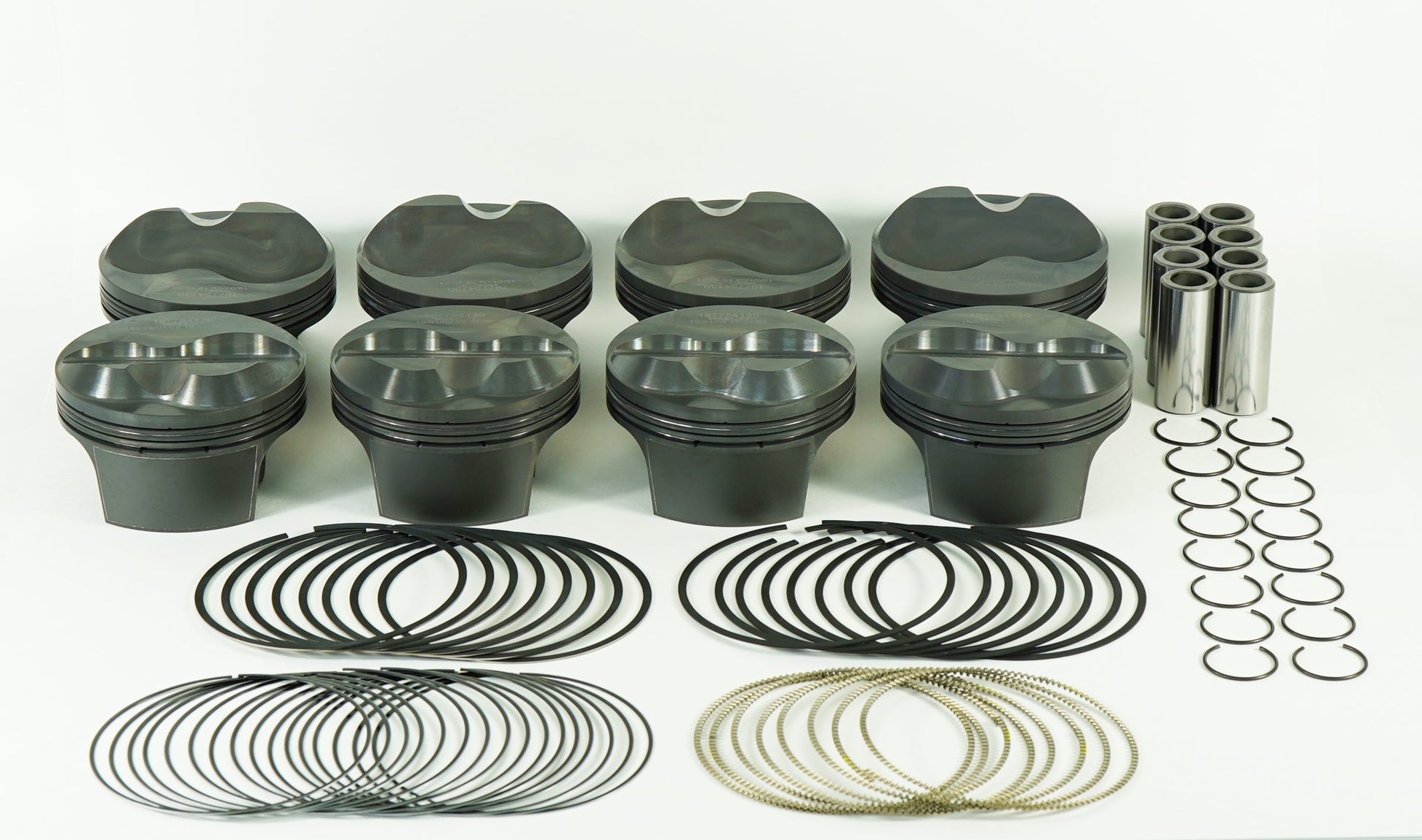

Mahle Motorsport 197754555 - Piston (set)
Piston and Ring - PowerPak - Forged - Dome - 4.155 in Bore - 1.125 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Grooves - Plus 9.00 cc - Small Block Chevy - Kit
407cid 4.155 x 1.125CH, 3.500stroke,6.125rod,0.927pin,9.0cc,457g,13.2CR, 2618
LCR Thickness: 1.0mm
Piston Mass: 457g
Pins Included: Y
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Material: 9254 Steel
Piston Style: Dome, w/ 2 valve reliefs
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 9.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
