Mahle Motorsport 197754545 - Mahle MS Piston Set Chevy SB 405ci 4.145in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 Pin 9cc 13.0/13.9CR
Mahle Motorsport 197754545 - Mahle MS Piston Set Chevy SB 405ci 4.145in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 Pin 9cc 13.0/13.9CR
SKU: DGJH-197754545
Regular price
$968.99 USD
Regular price
$1,053.76 USD
Sale price
$968.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 197754545 - Mahle MS Piston Set Chevy SB 405ci 4.145in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 Pin 9cc 13.0/13.9CR

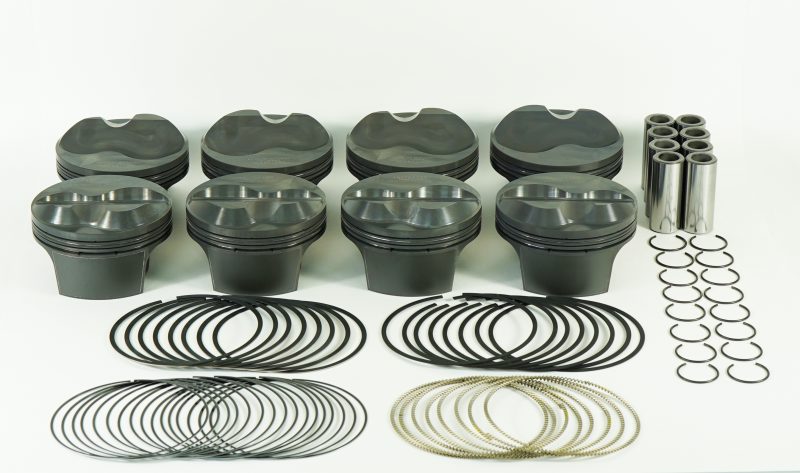

Piston (set) - SMALL BLOCK CHEVY 23 Deg DOME
405cid 4.145 x 1.125CH, 3.500stroke,6.125rod,0.927pin,9.0cc,454g,13.1CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y

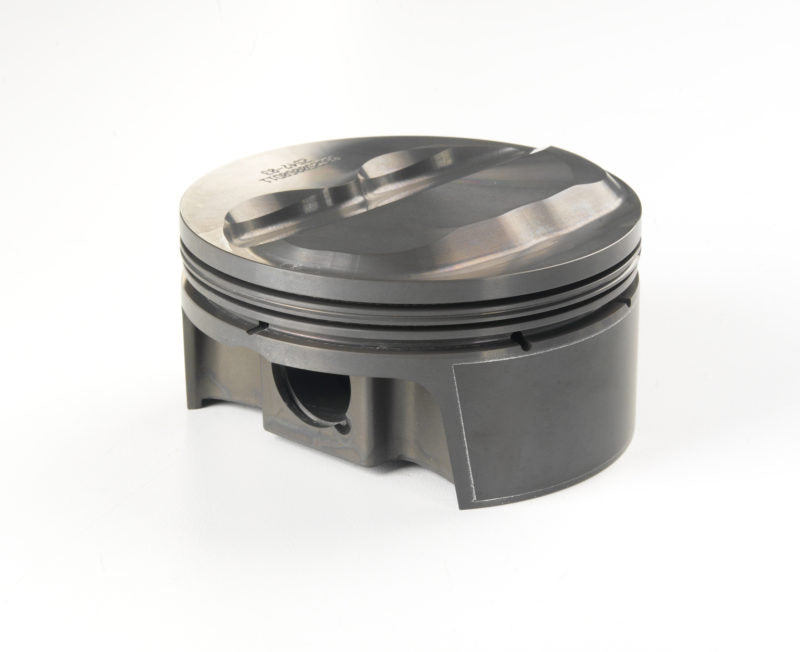

Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 454g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 9.0cc
UCR Thickness: 1.0mm
