Mahle Motorsport 197725130 - Piston (set)
Mahle Motorsport 197725130 - Piston (set)
SKU: DGJH-197725130
Regular price
$678.99 USD
Regular price
$844.10 USD
Sale price
$678.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability

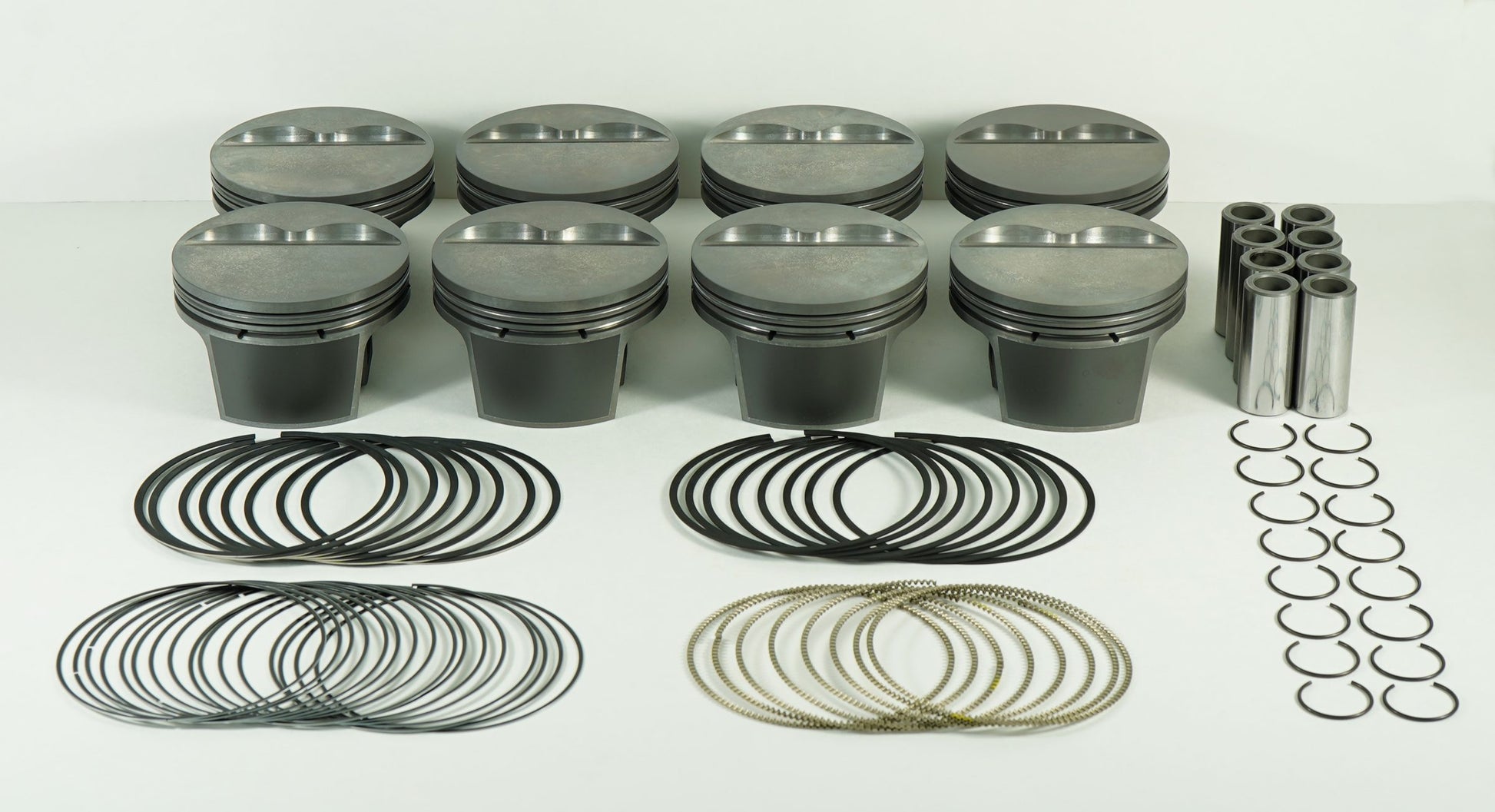

Mahle Motorsport 197725130 - Piston (set)
Piston - Power Pak - Flat Top - 4.030 in Bore - 1.550 in Compression Height - 1.5 mm / 1.5 mm / 3.0 mm Ring Grooves - Minus 5.00 cc - Small Block Chevy - Kit
355cid 4.030 x 1.550CH, 3.480/3.500stroke,5.700rod,0.927pin,-5.0cc,463g,10.2CR, 4032
Crown Volume: -5.0cc
UCR Thickness: 1.5mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 463g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: Y
