Leed Brakes MC004 - Master cylinder 1 inch bore Ford style with left side outlets
Leed Brakes MC004 - Master cylinder 1 inch bore Ford style with left side outlets
SKU: HBCJ-MC004
Regular price
$86.99 USD
Regular price
$95.69 USD
Sale price
$86.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability

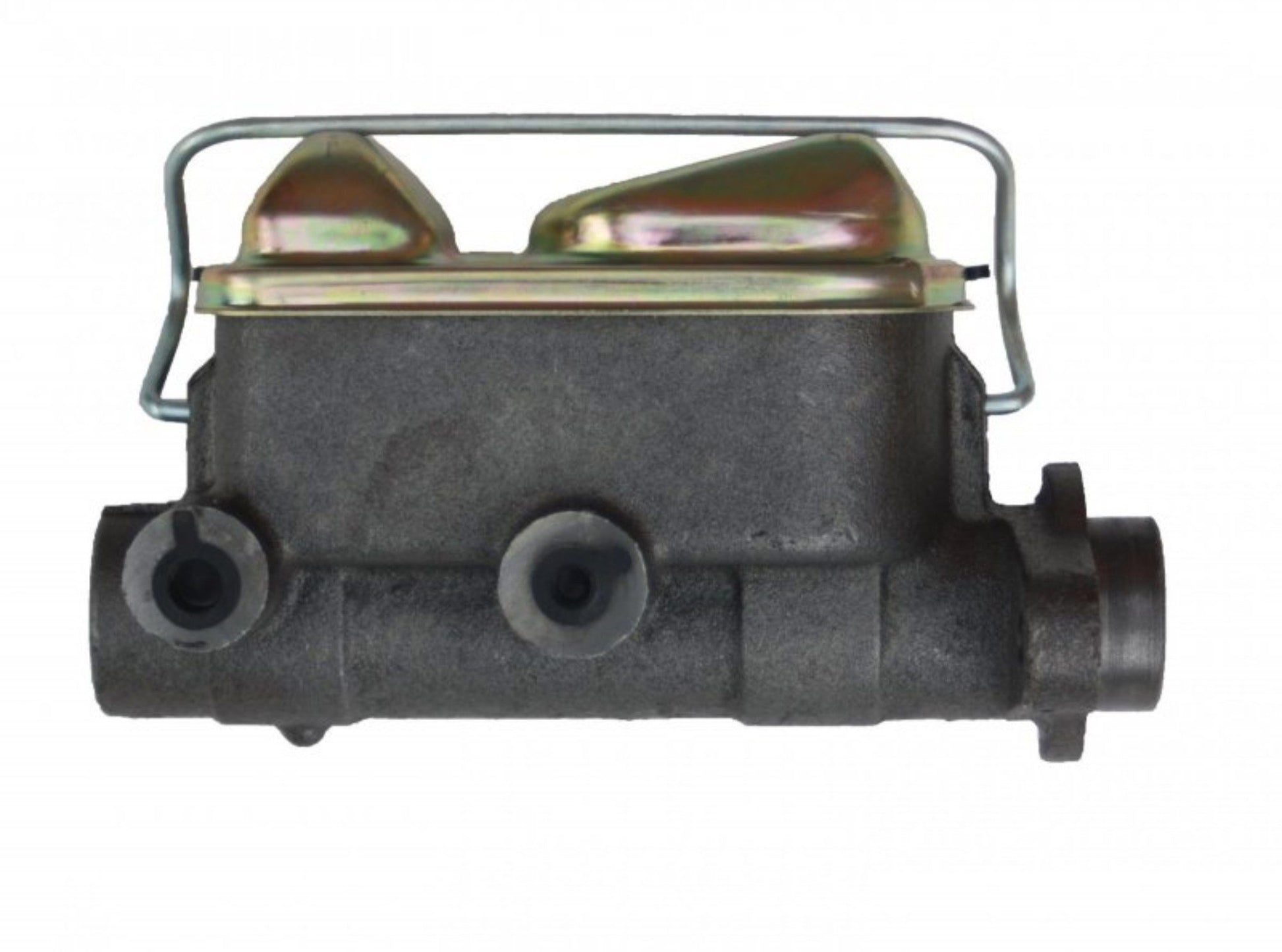

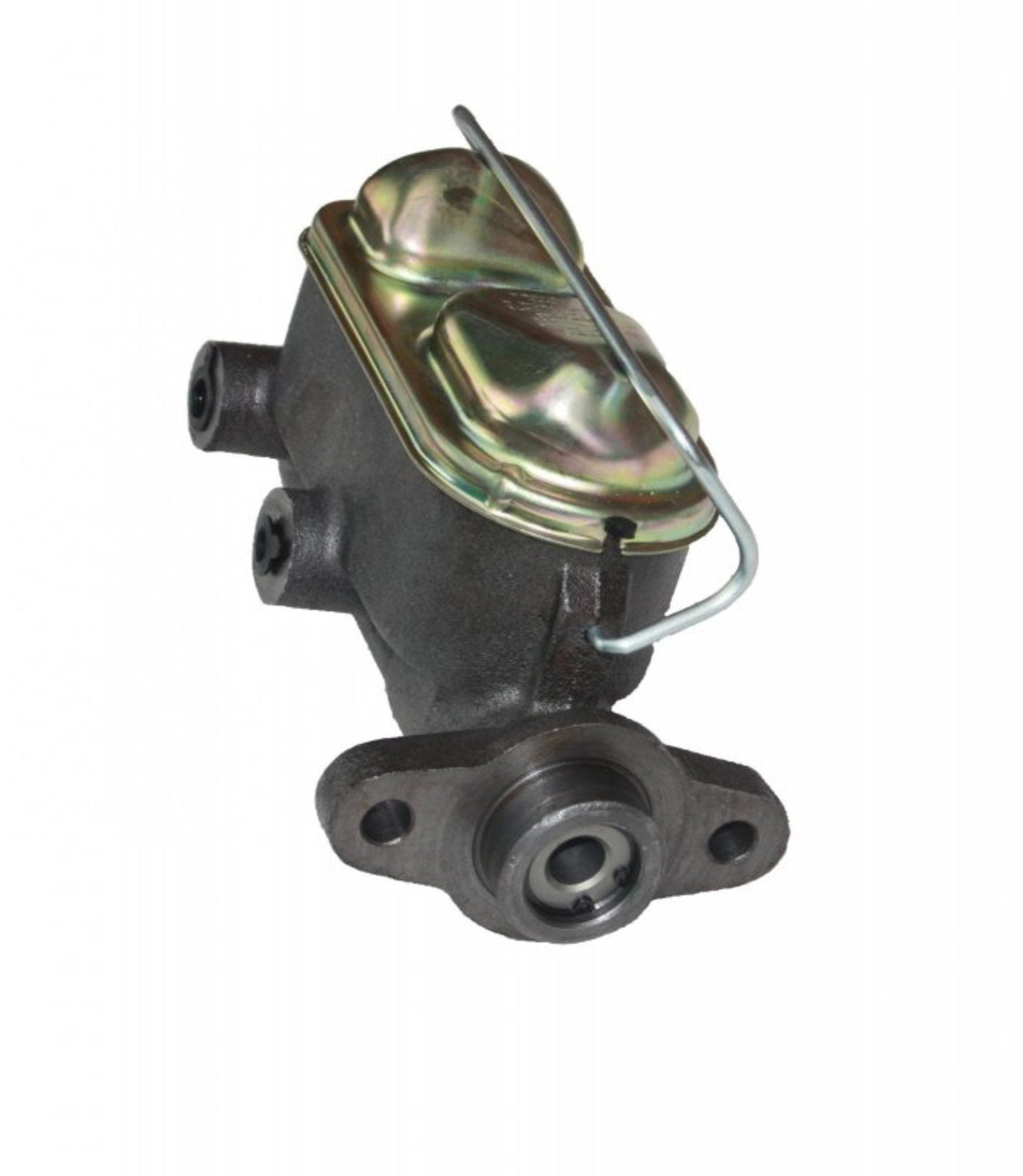

Leed Brakes MC004 - Master cylinder 1 inch bore Ford style with left side outlets
Master Cylinder - 1 in Bore - Dual Integral Reservoir - Iron - Natural - Ford Mustang / Cougar 1967-72 - Kit
Leed Brakes master cylinders are all new units assembled with the highest quality machined components. All units include pushrod spacers and outlet plugs when needed to insure any easy installation in both power and manual applications.
New 1" bore power or manual Ford brake master cylinder with left side outlets, 3/8-24 & 1/2-20 outlets.
- New unit not remanufactured
Secondary Outlet Thread Size: 3/8" - 24
Primary Outlet Thread Size: 1/2" - 20
Primary Outlet Flare Type: Inverted
Position: Front
Secondary Outlet Flare Type: Inverted
Primary Bore Diameter: 1.00
Secondary Bore Diameter: 1.00
Reservoir Style: Integral
Master Cylinder Bore Size: 1 in
Master Cylinder Finish: Natural
Master Cylinder Included: Yes
Master Cylinder Material: Cast Iron
Push Rod Included: No
Reservoir Included: Yes
Mounting Hardware Included: No
Status: Existing
TLE: LEED Brakes Master cylinder 1 inch bore Ford style with left side outlets
Primary Outlet Thread Type Standard: UNF
Secondary Outlet Thread Type Standard: UNF
Reservoir Material: Cast Iron
Dust Boot Included: No
Grade Type: Standard Replacement
Gasket Or Seal Included: Yes
Mounting Hole Quantity: 2
Master Cylinder Bore Diameter: 1.00
Bleeder Screw Included: No
Piston Quantity: 2
Brake Booster Included: No
Master Cylinder Cap Included: Yes
Master Cylinder Material: Cast Iron
Reservoir Type: Dual
Brake Pressure Switch Required: No
Bleeder Hoses Included: Yes
Sensor Included: No
Mounting Hole Diameter: .400
Port Quantity: 2
Mounting Bracket Included: No
Bore Type: Straight
