Lakewood - LK8200K
Bellhousing - Hardware Included - Aluminum - Natural - TKX / TKO / TR3550 - Ford Coyote - Kit
Connects Ford Coyote and Modular Engines to Tremec TKX, TKO, and TR-3550 Transmissions

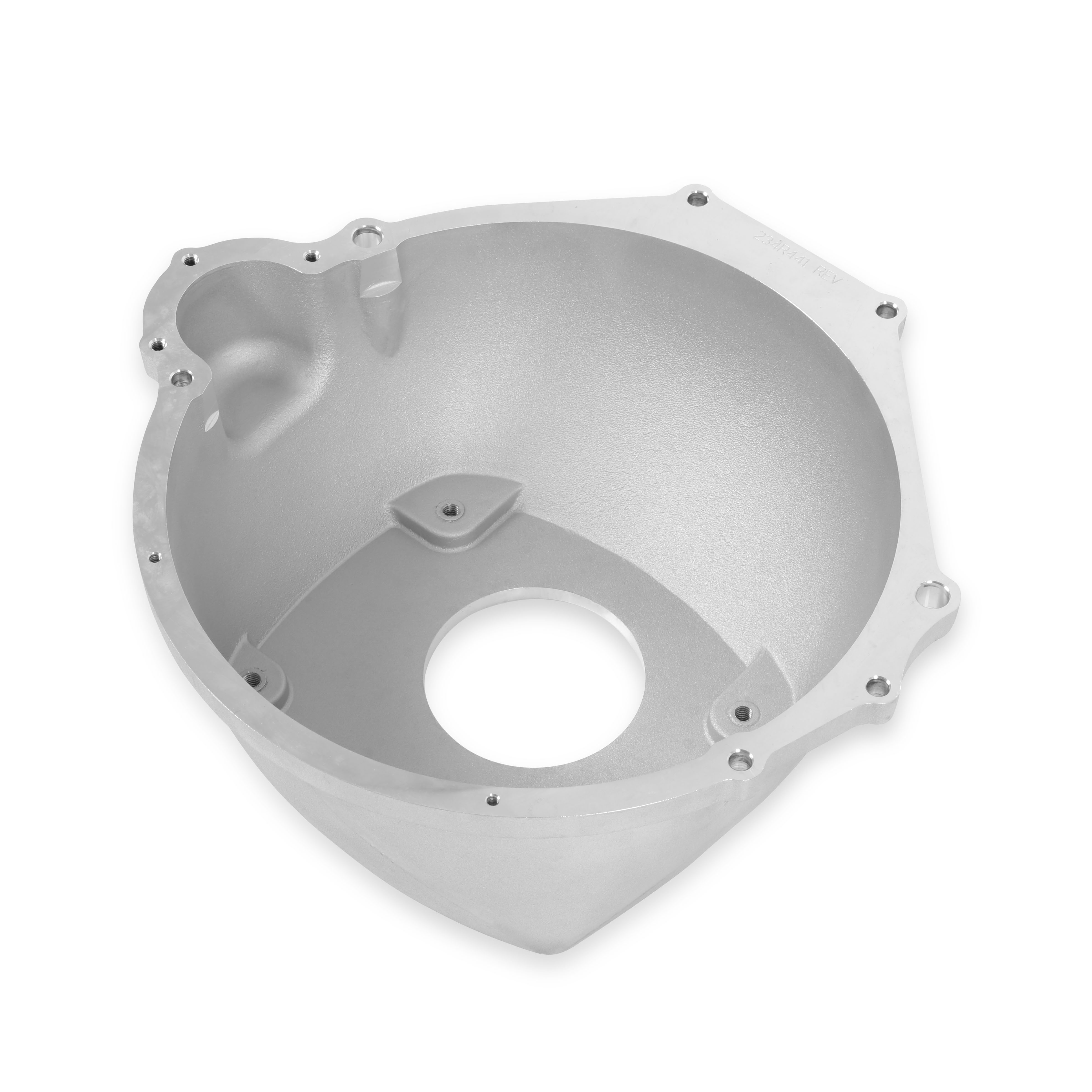

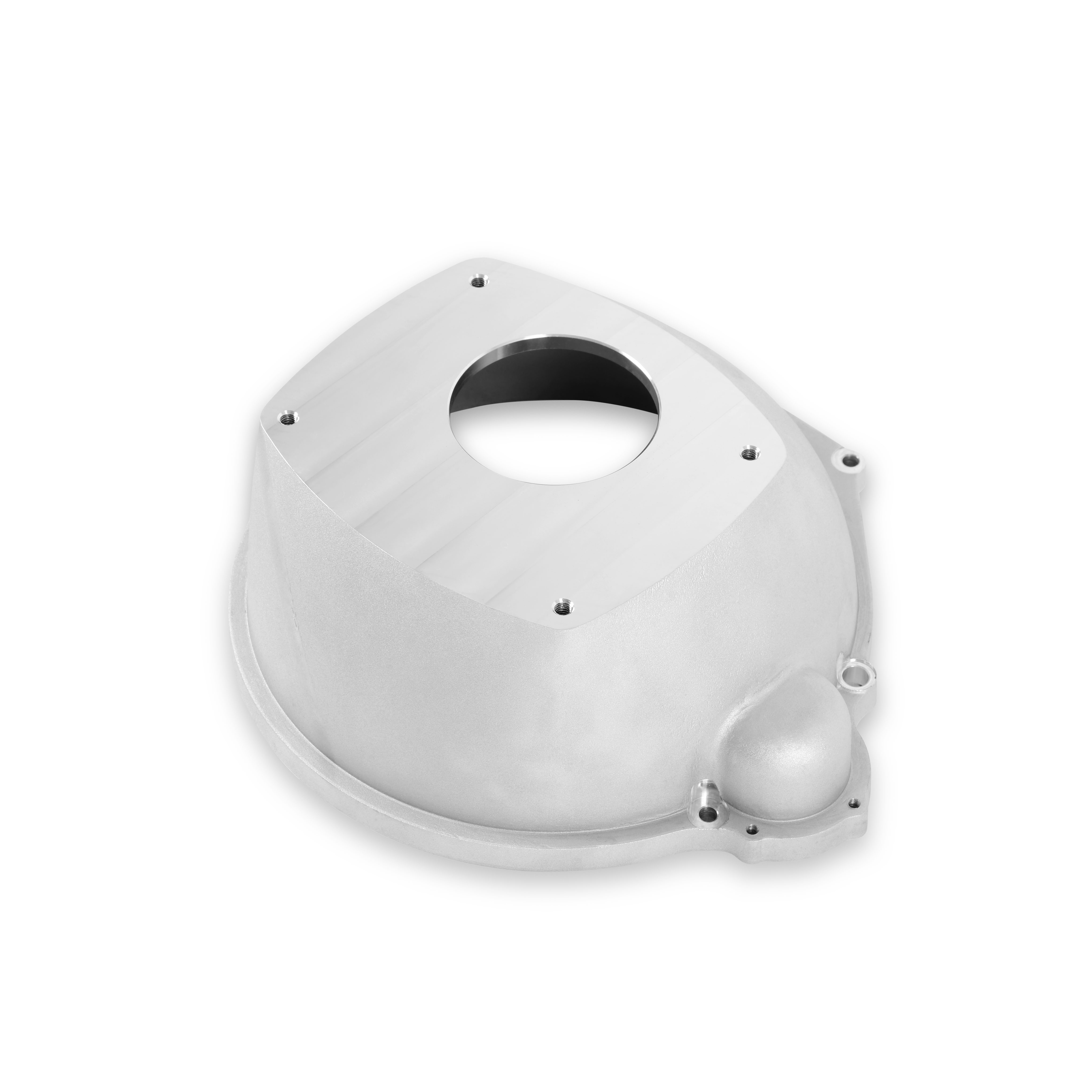

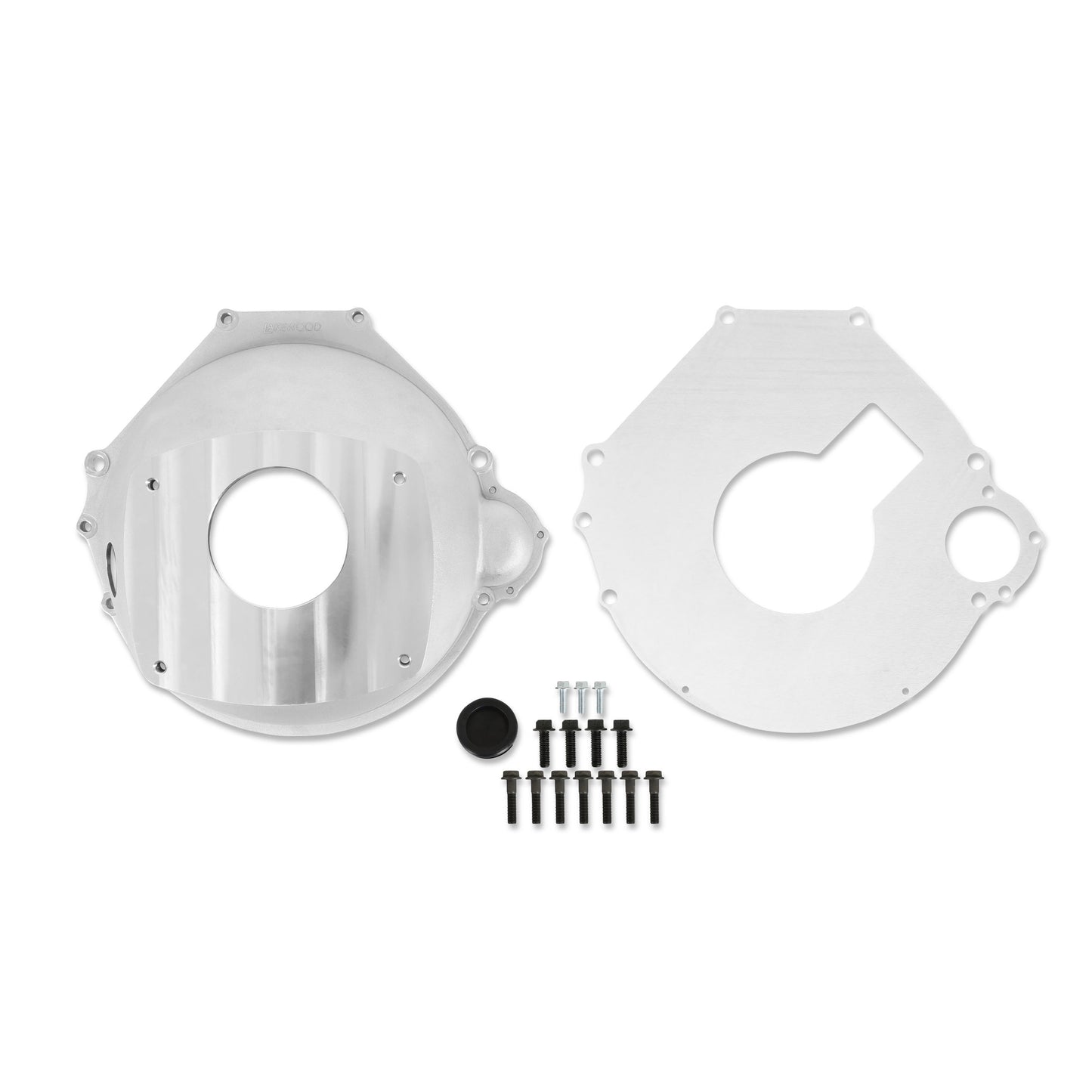

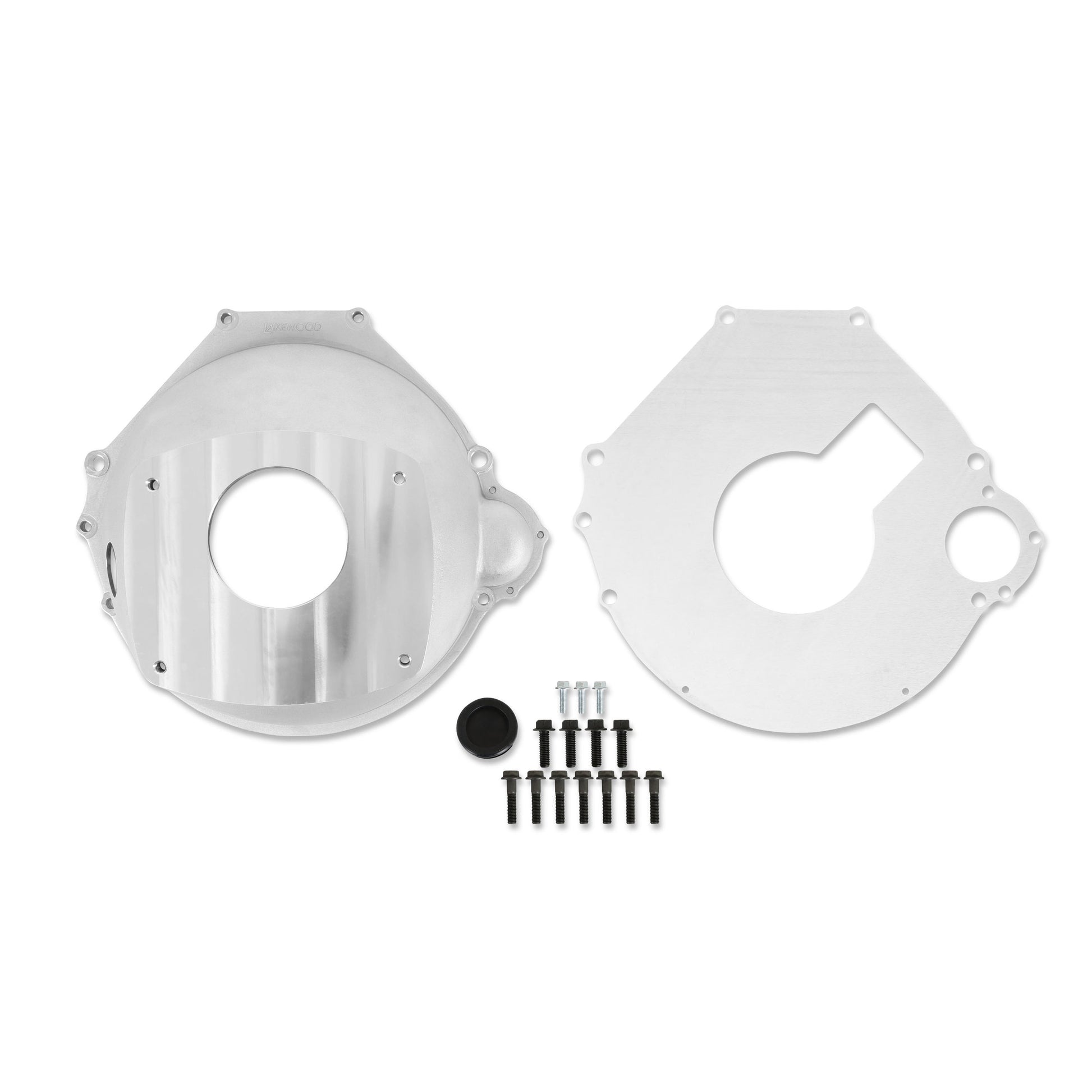

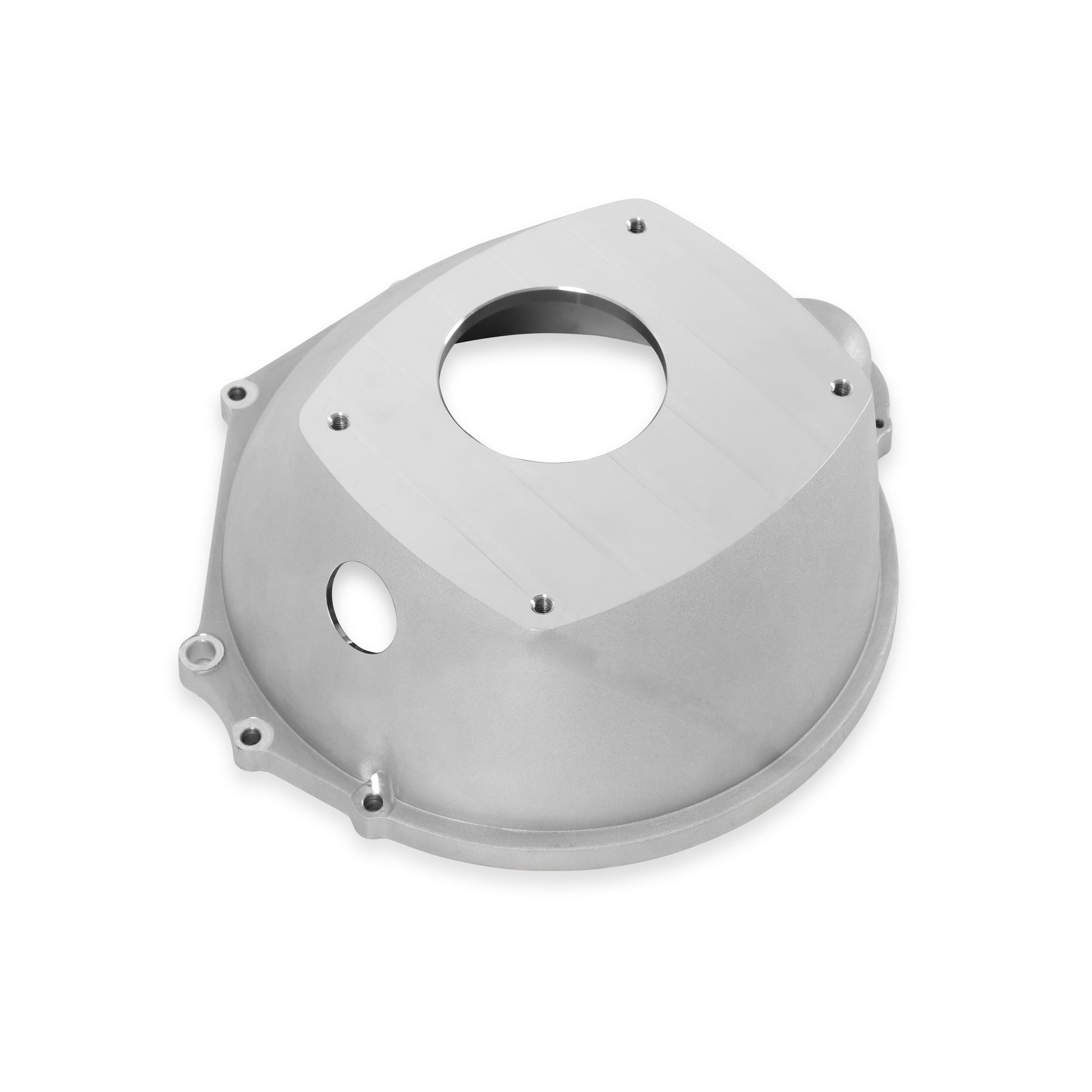

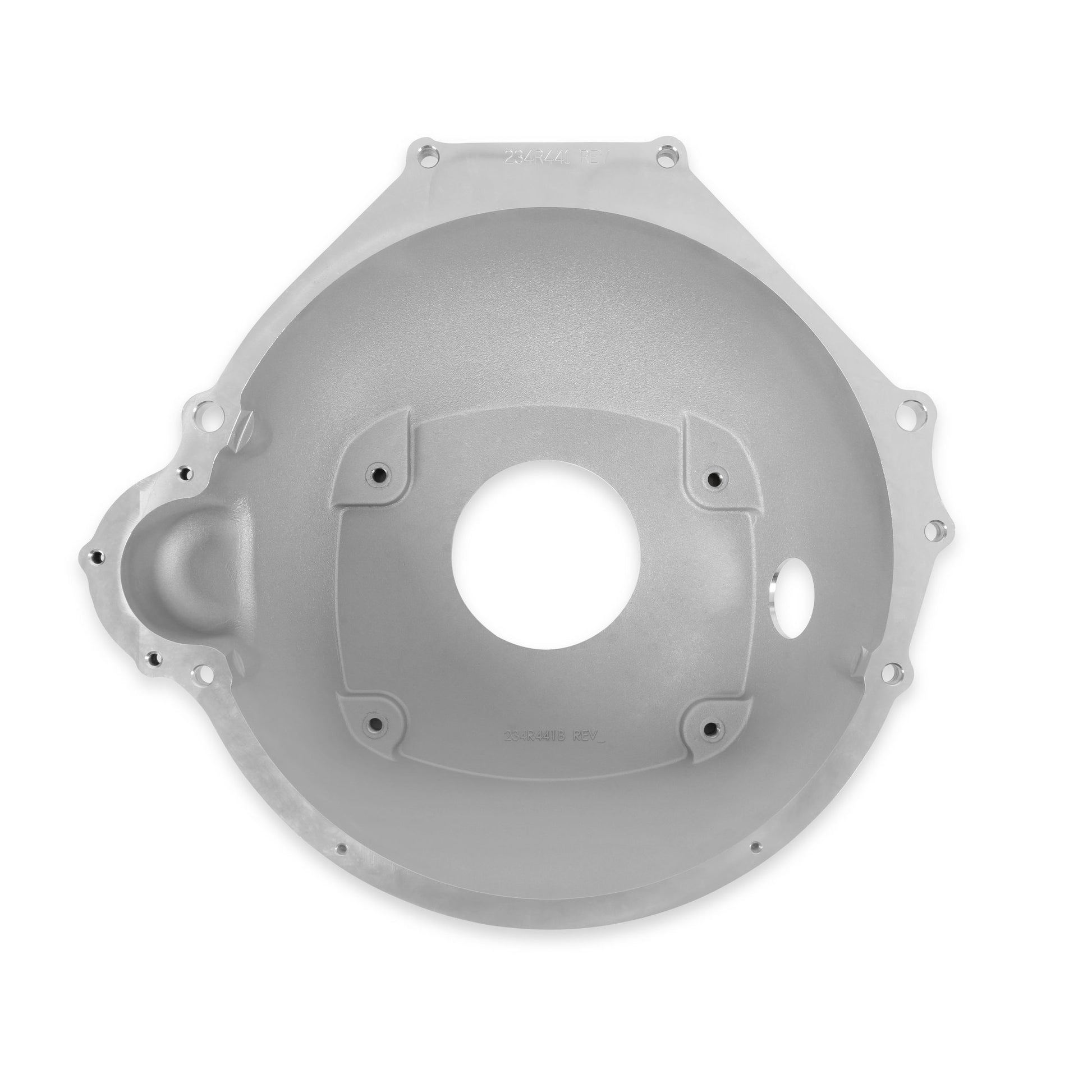

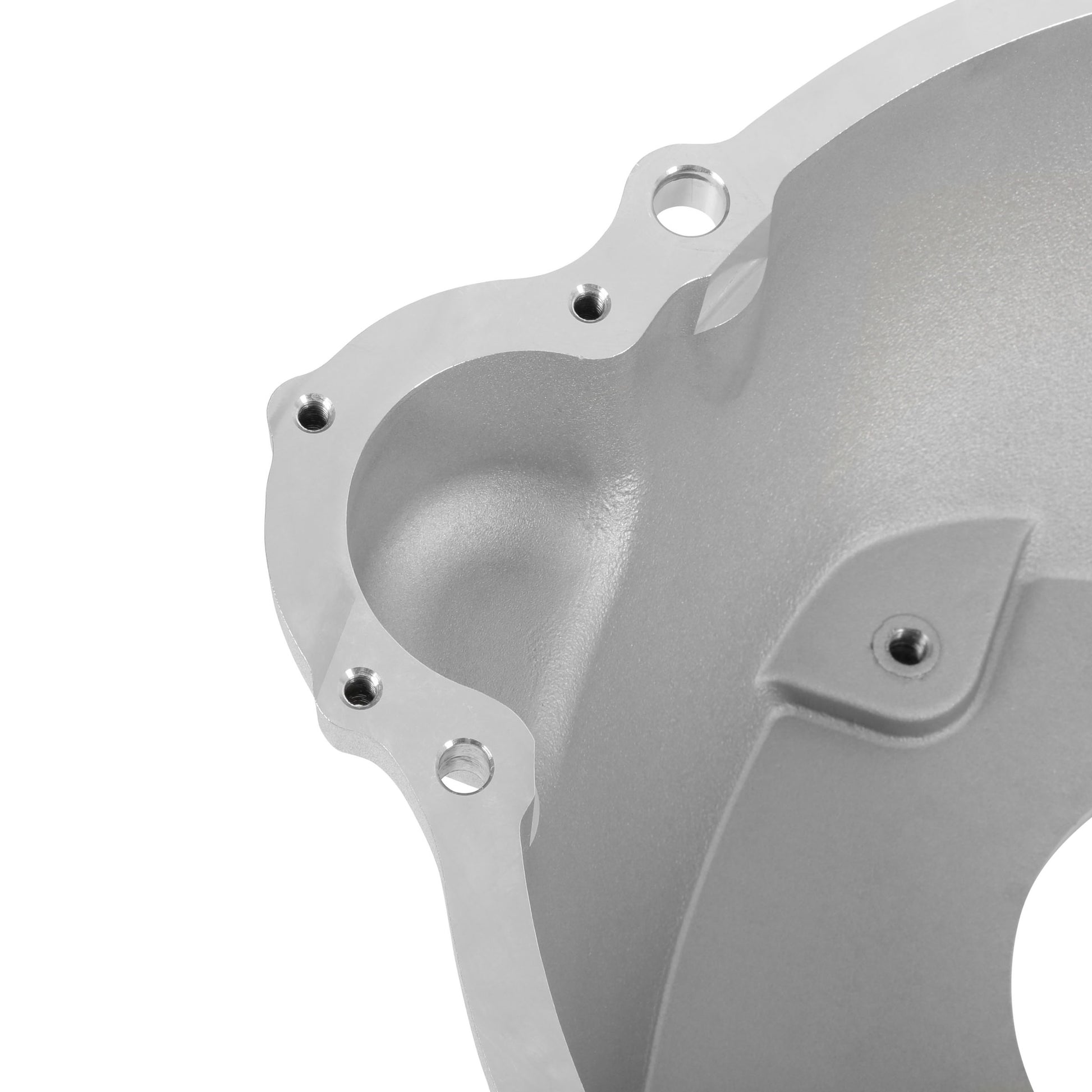

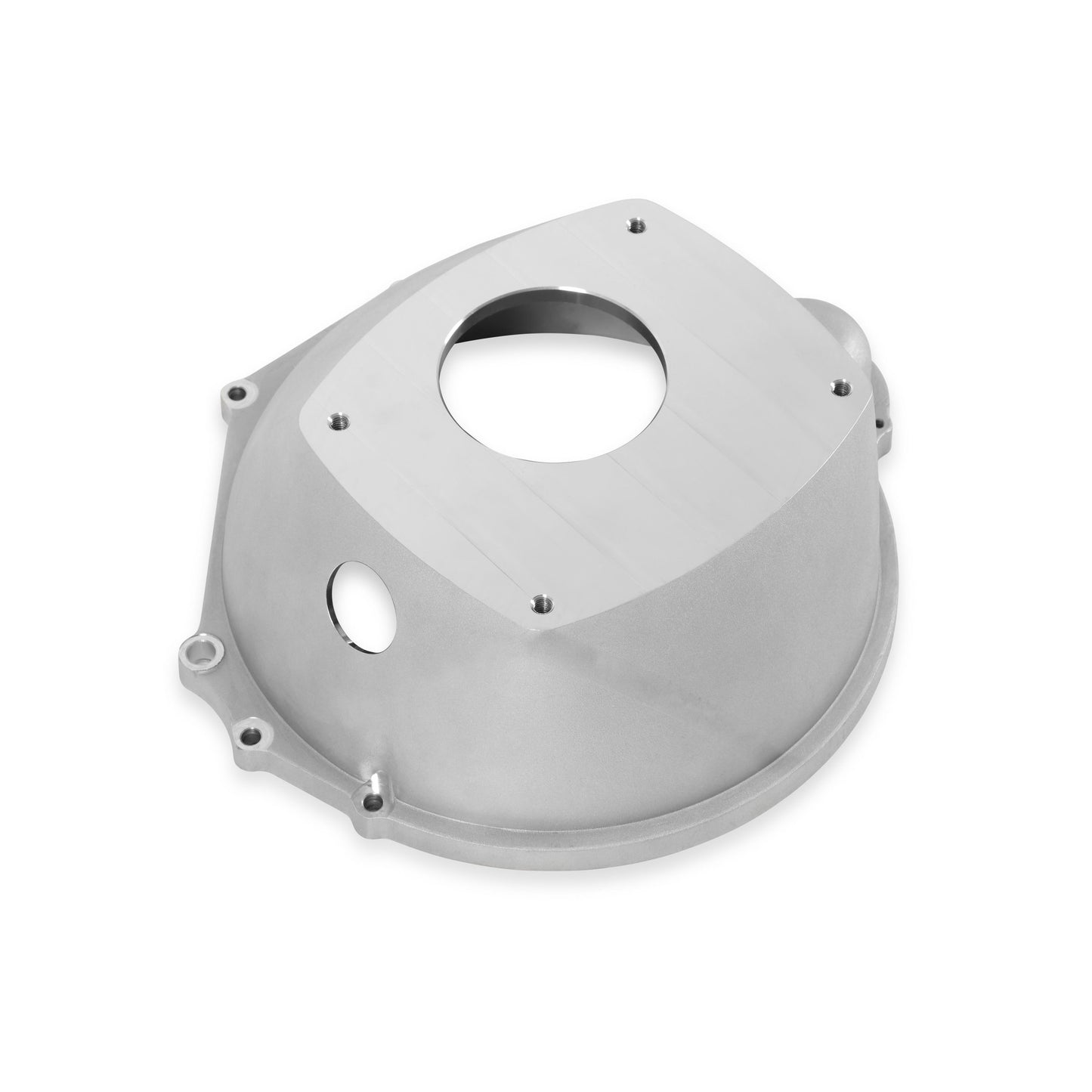

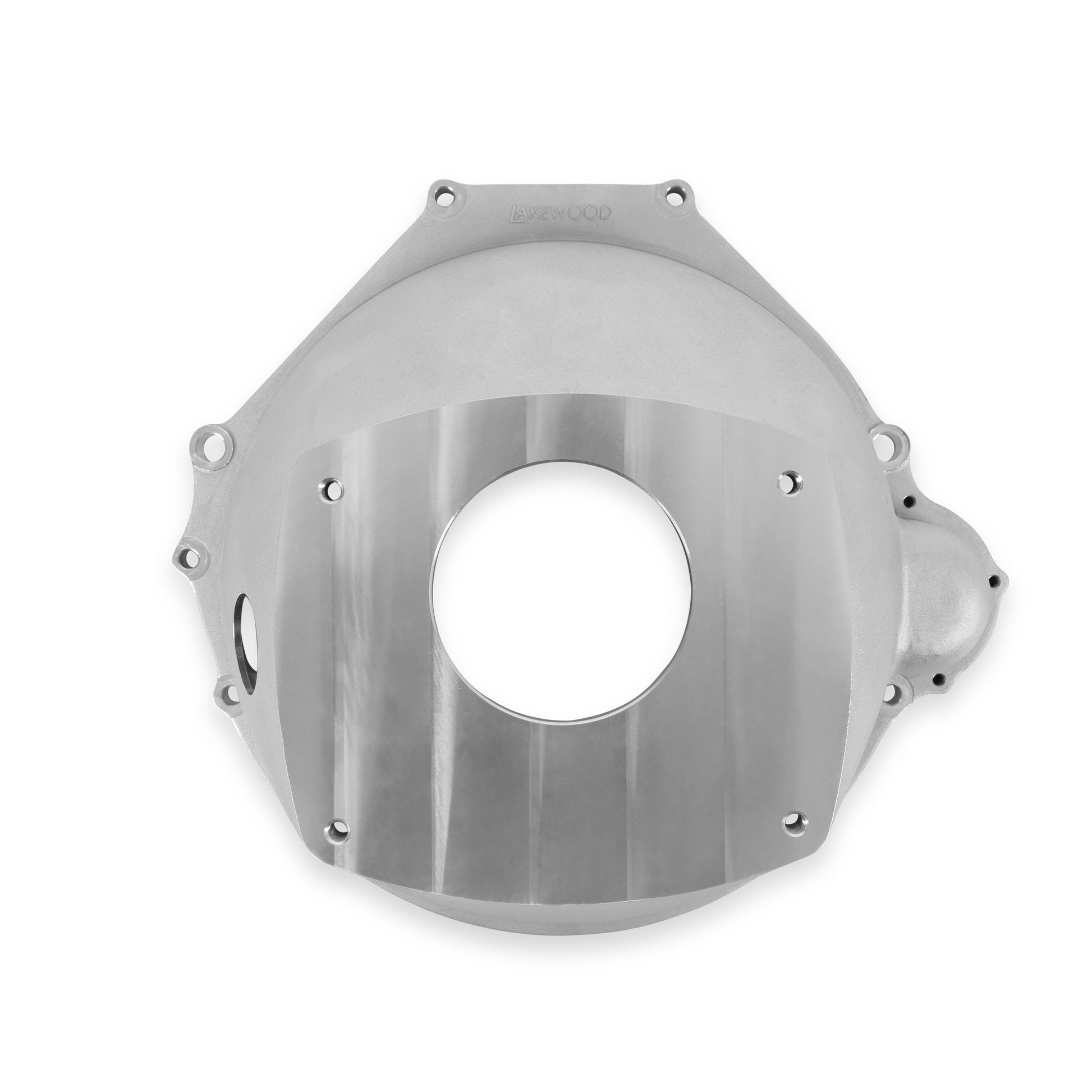

These Lakewood cast aluminum bellhousings connect Ford Coyote and Modular Engines to Ford-Style Tremec TKX, TKO, and TR-3550 transmissions. The bellhousings can be used on both Ford cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a block plate, hydraulic hose grommet, and Grade 8/10.9 mounting hardware that connects the bellhousing to both the engine and transmission.
- Lightweight cast aluminum design similar to the original equipment bellhousings
- Connects Ford Modular or Coyote engines to Ford-style Tremec TKX, TKO, and TR-3550 Transmissions
- Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
- Designed For Hydraulic Throwout/Release Bearing (recommend Hays #82-103)
- Bellhousing Depth: 7.27 in
- Transmission Bore Diameter: 4.685 In
- Includes Grade 8/10.9 Hardware for both engine and transmission
- Includes block plate and grommet for sealing off hydraulic hose opening
Brand: Lakewood
Category: Transmission
Clutch: 10.5 inch
Emission Code: 5
Engine: Ford Coyote
Engine: Ford Mod Motor
Engine Make: Ford
Flywheel: 164 Tooth
Height (in): 7.27
Make: Ford
Material: Cast Aluminum
part type: Transmission Bell Housing
Product Type: Bellhousing Kit
RELEASE BEARING: Hydraulic
SFI Approved: No
Sub Category: Transmission Hard Parts
Trans. Bore Diameter: 4.685
Transmission: TKX Ford
Transmission: TR3550
Transmission: TKO 500/600 Ford
Transmission Type: Manual
