Lakewood - 15020

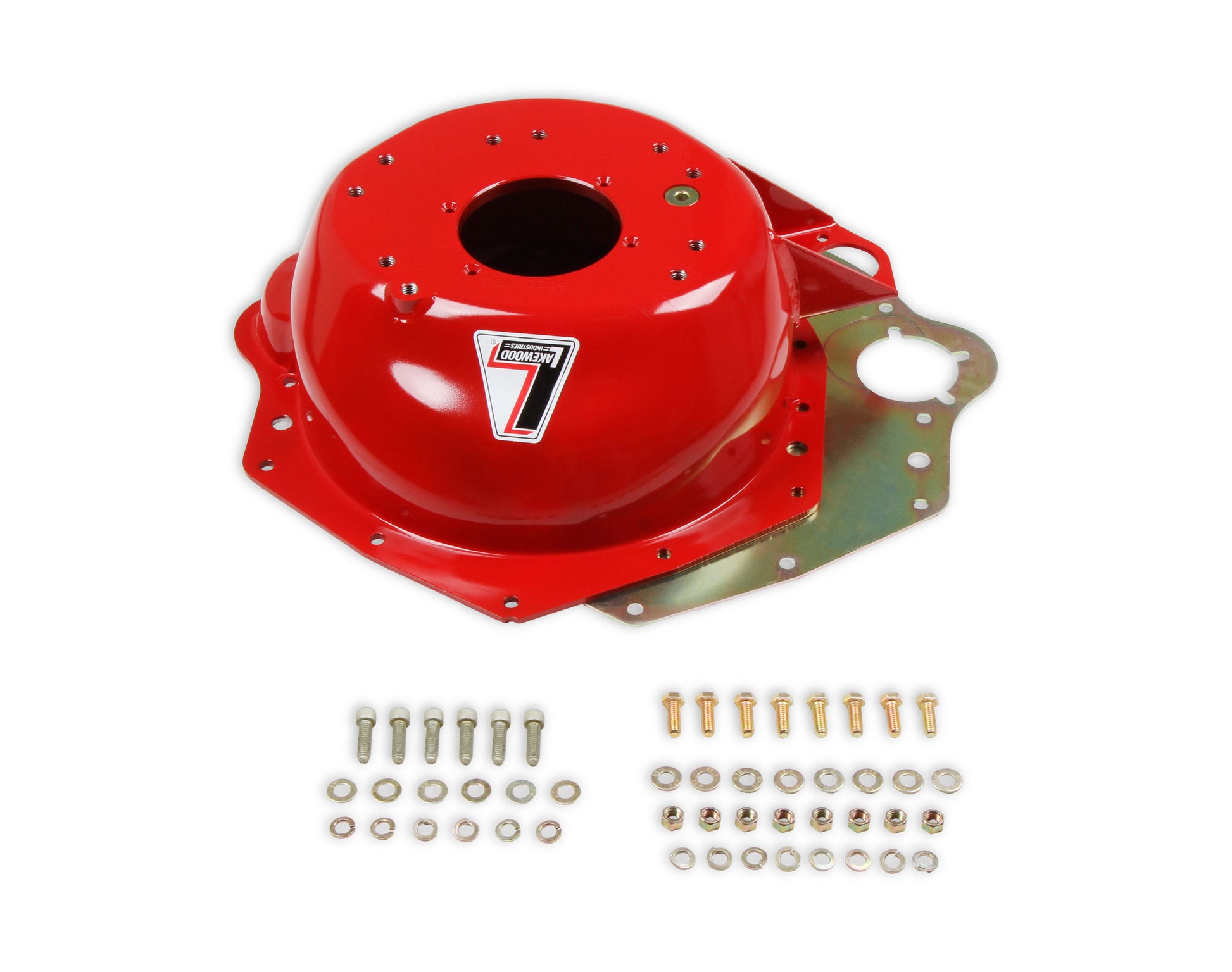

Bellhousing - Block Plate - Hardware Included - SFI 6.1 - Steel - Red Powder Coat - Muncie / Saginaw / T5 / T10 / Tremec TKO - Chevy V6 / V8 - GM F-Body 1984-92 - Kit

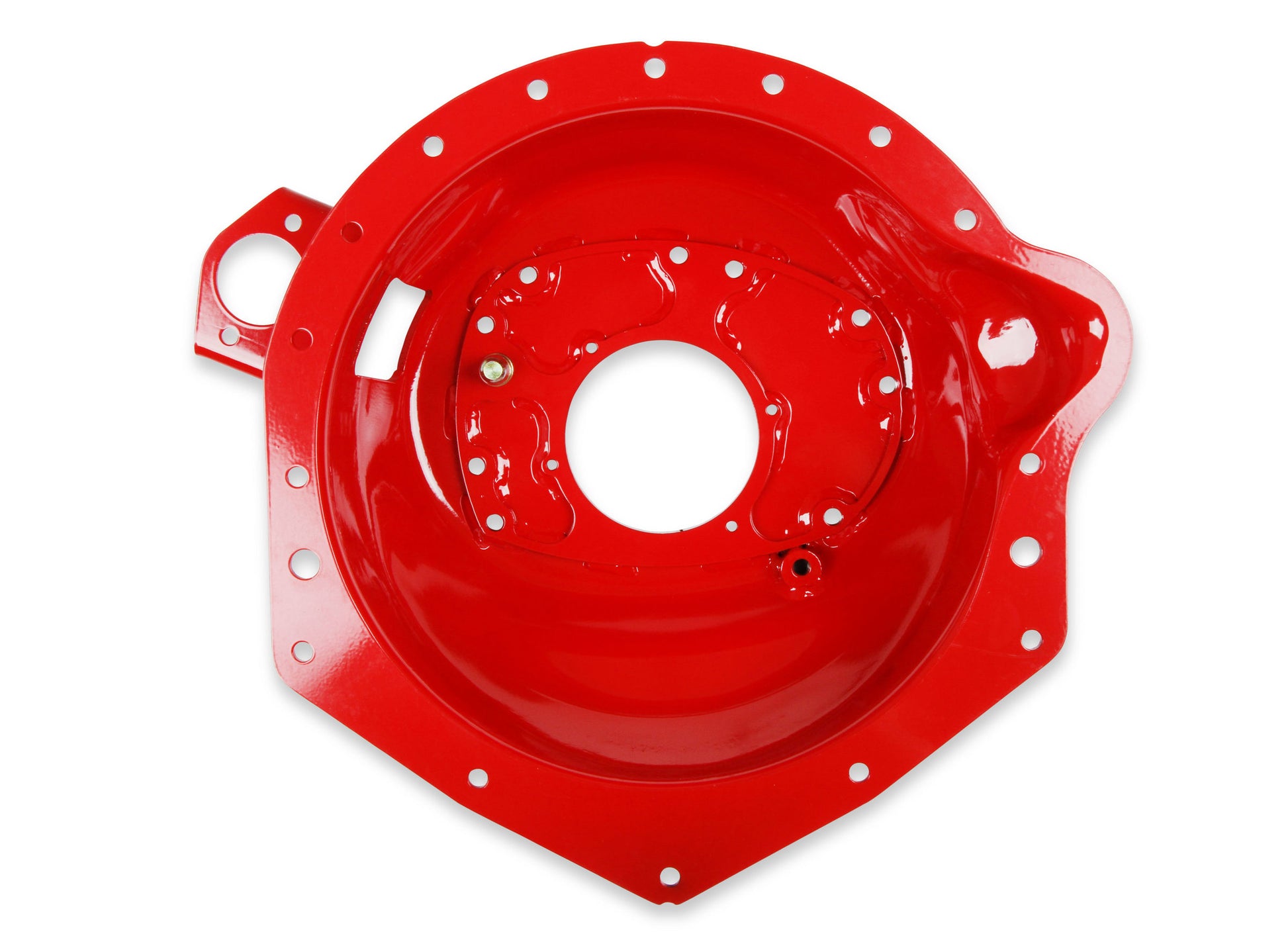

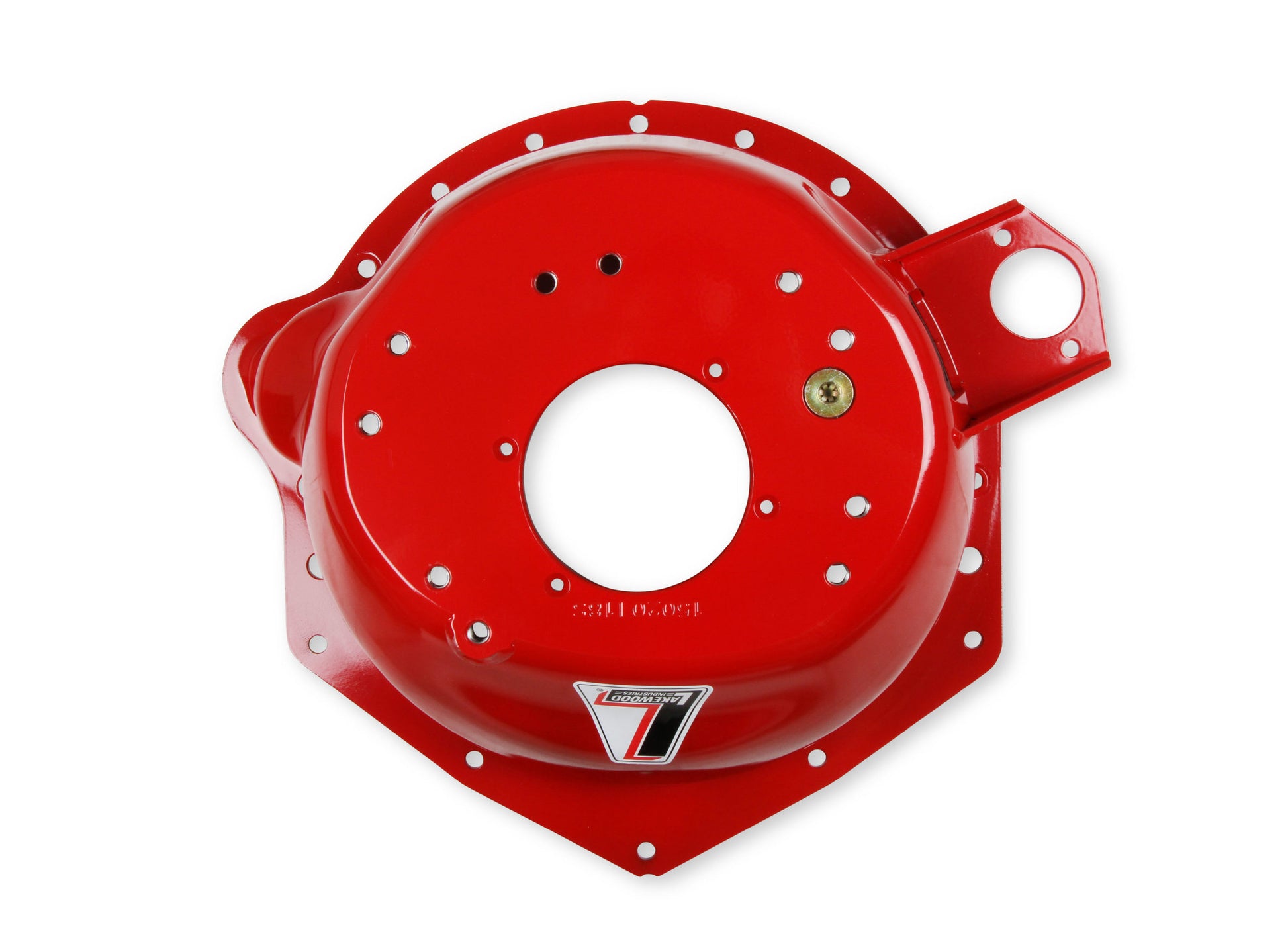

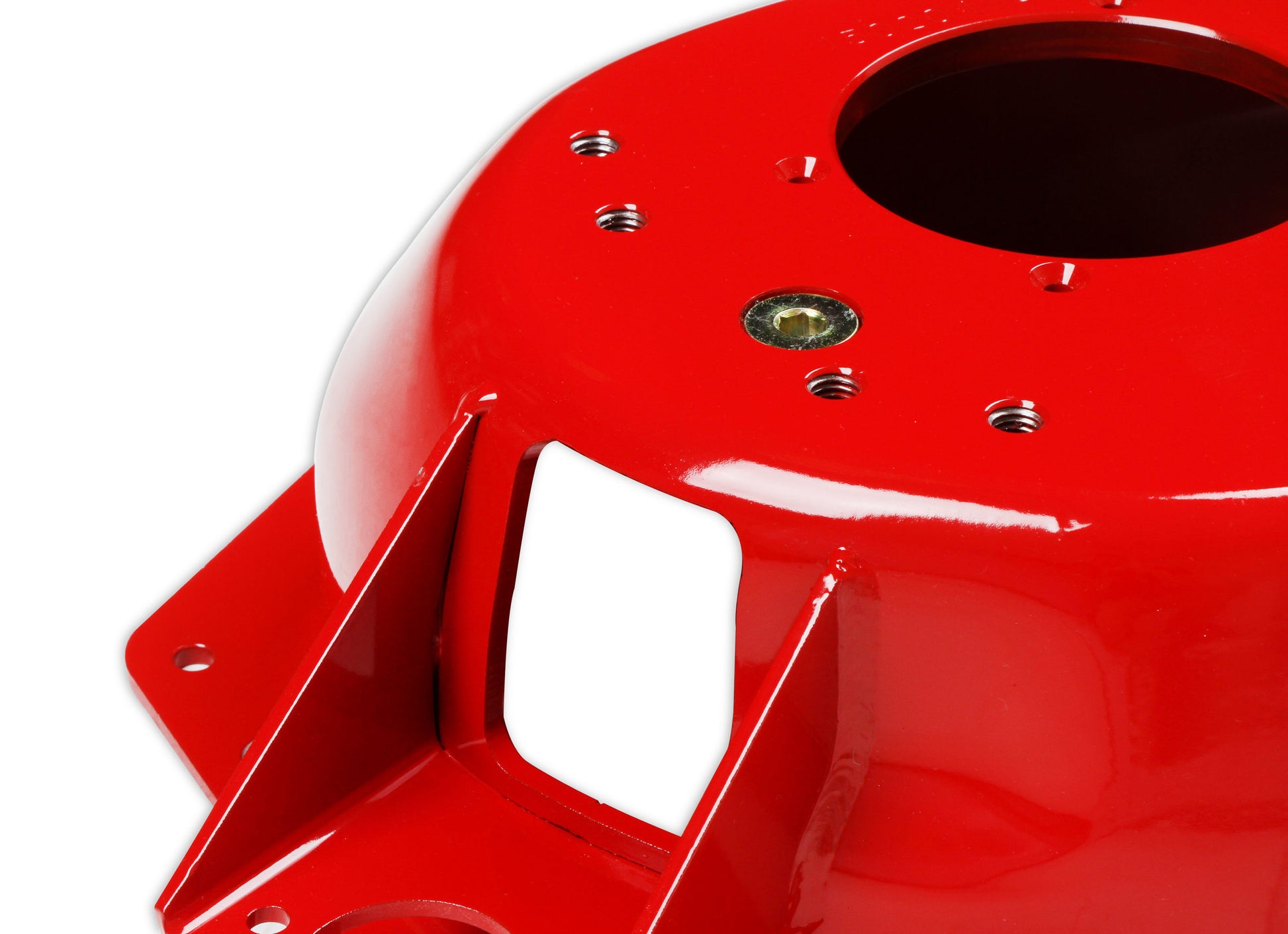

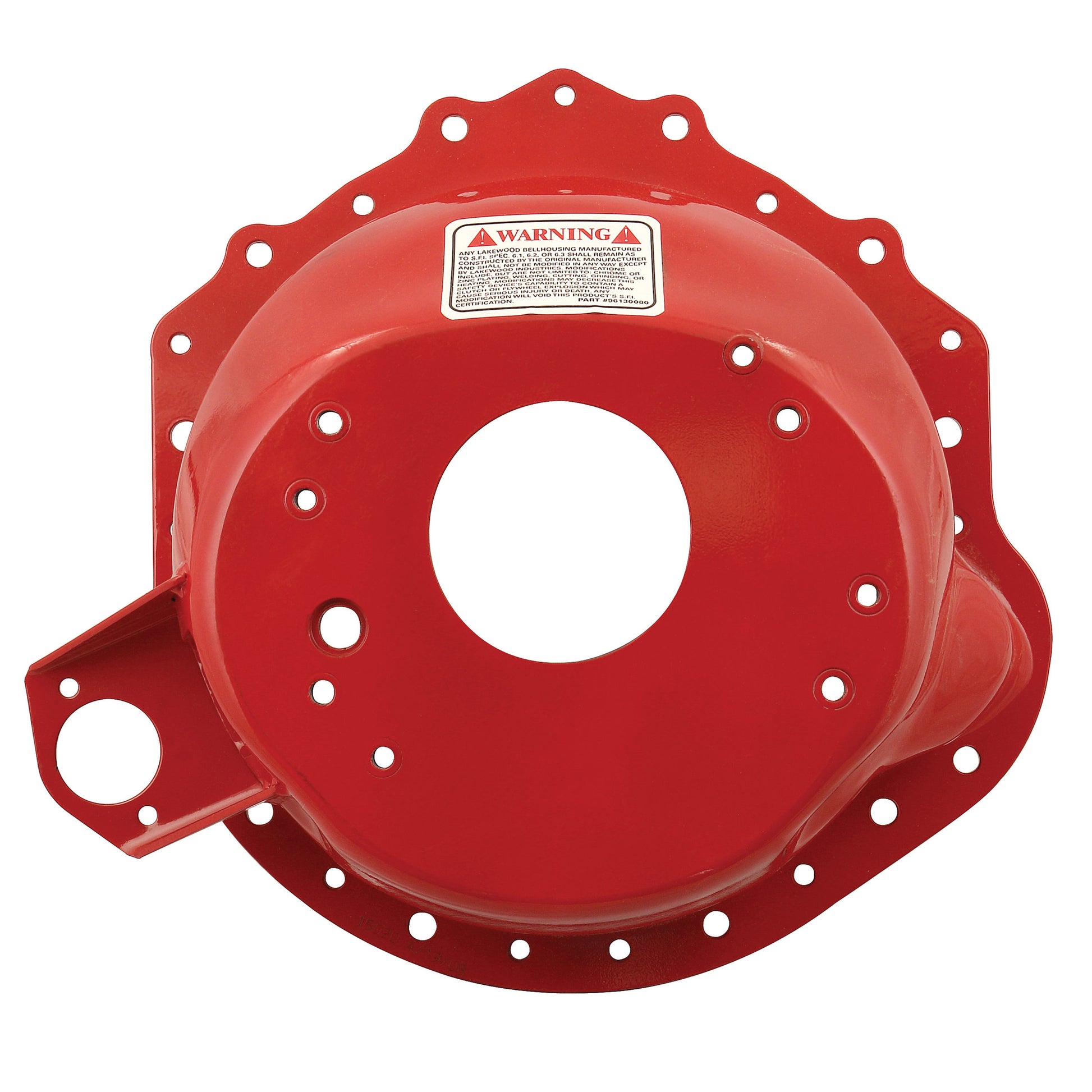

Safety Bellhousing; Fits w/84-92 Camaro/Firebird w/BorgWarnerT5/T10/Muncie/TKO Trans.; 4.685 in. Bore Dia; 6.45 in. Depth; 2.00x3.15 in. Fork Opening; Incl. Block Plate/Hrdw; Red;
OEM starters are recommended for ease of fitment. It is very important that the tooth count (153 or 168) of the starter match the tooth count of the flywheel to ensure proper engagement. Two primary options: a 12 3/4-inch flywheel (153 teeth) where the nose cone will have two attachment bolt holes across from each other (inline) and a 14-inch flywheel (168 teeth) where the attachment bolt holes will be offset (diagonal). This applies mainly to factory GM starters on passenger cars/light trucks and does not apply to later model versions (w/ gear reduction) or aftermarket and mini starters. Be sure to match your clutch to your flywheel as well.
- For 1984-1992 Camaro And Firebird Chassis

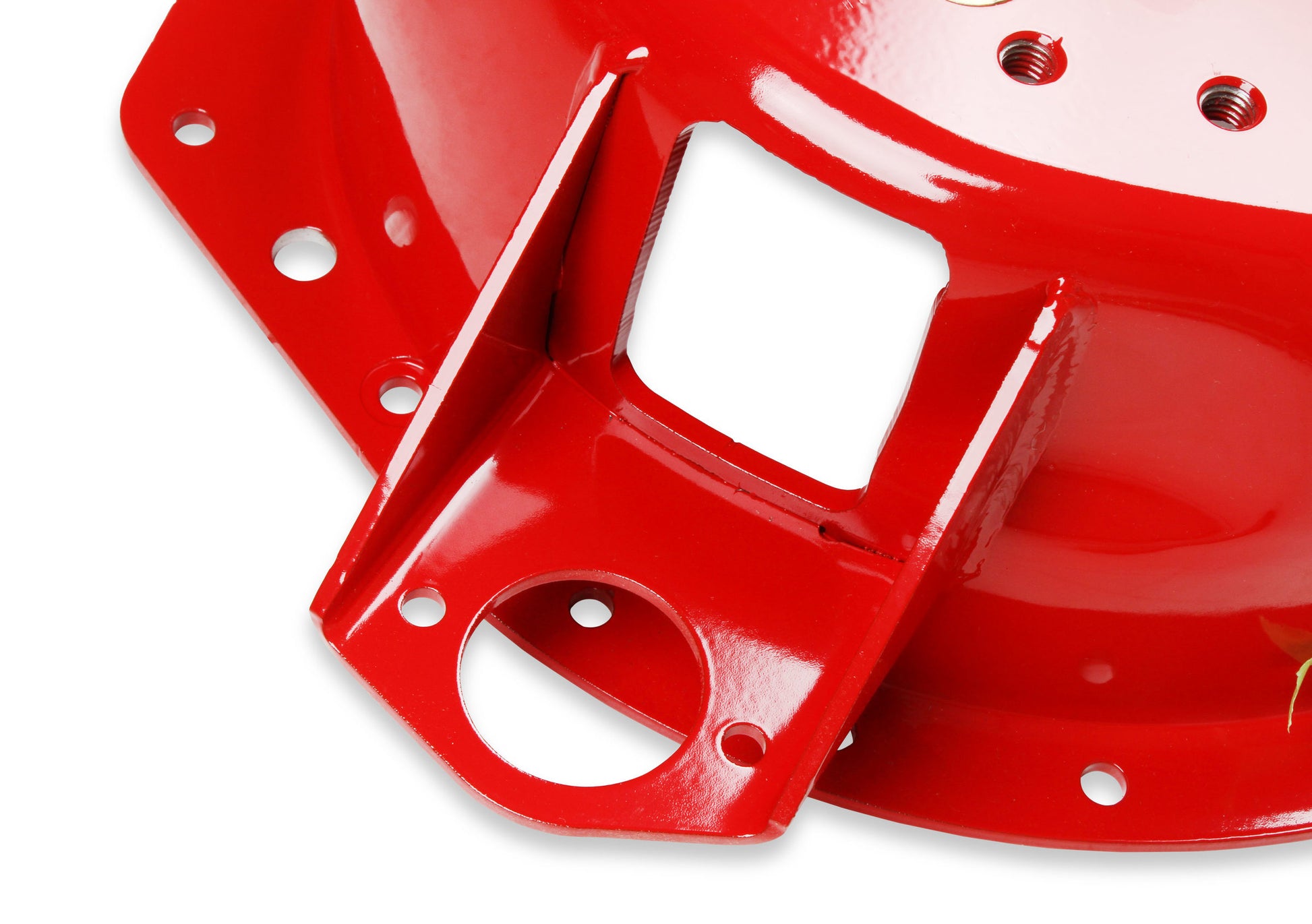

- Designed for use with Factory Hydraulic Clutch Linkage and Pull Cable with External Slave Cylinder
- Drilled for 17 degree canted BW T5
- S.F.I. 6.1 Approved
- Fits 153 And 168 Tooth Flywheel
- Bellhousing is 6.45 inches Deep

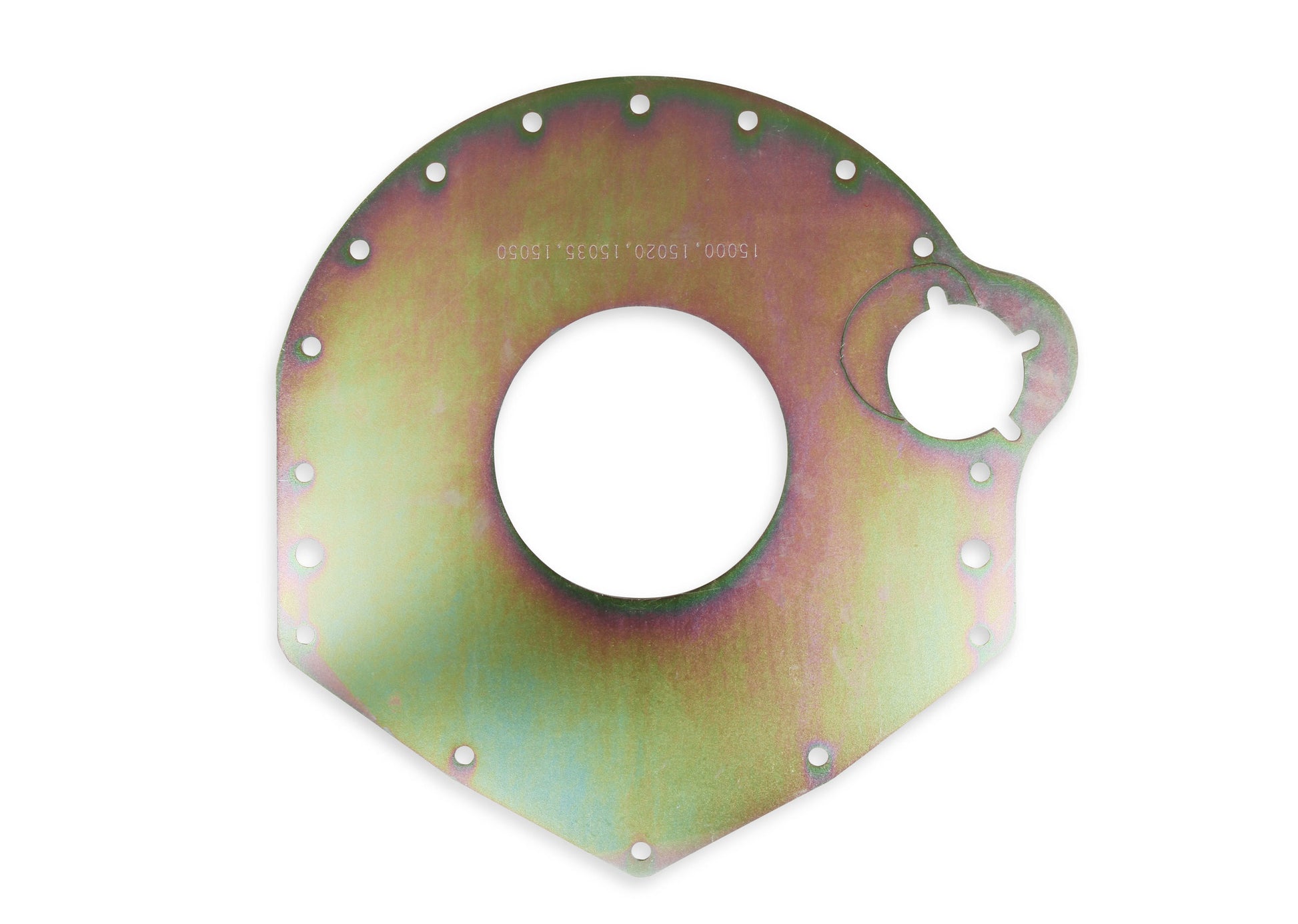

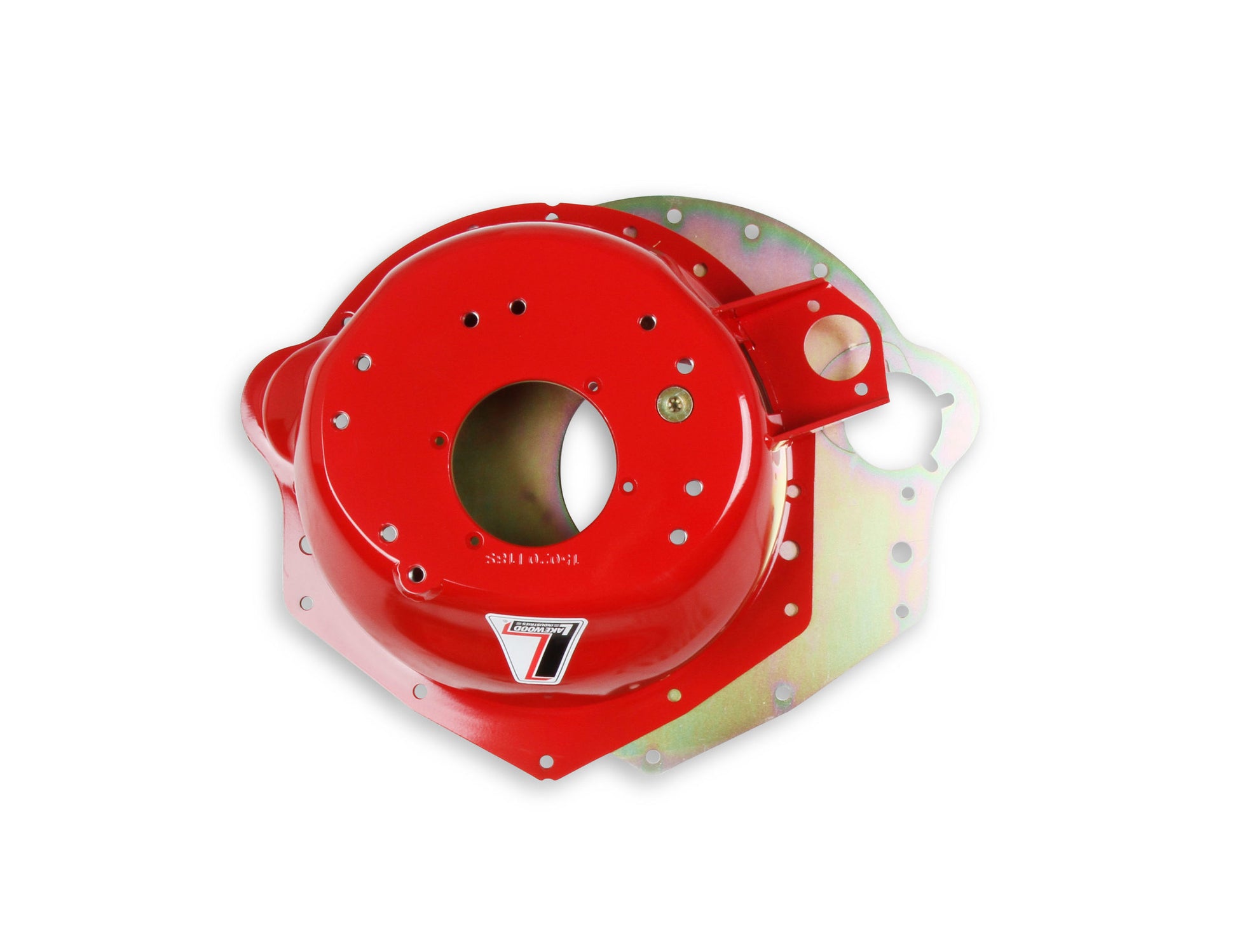

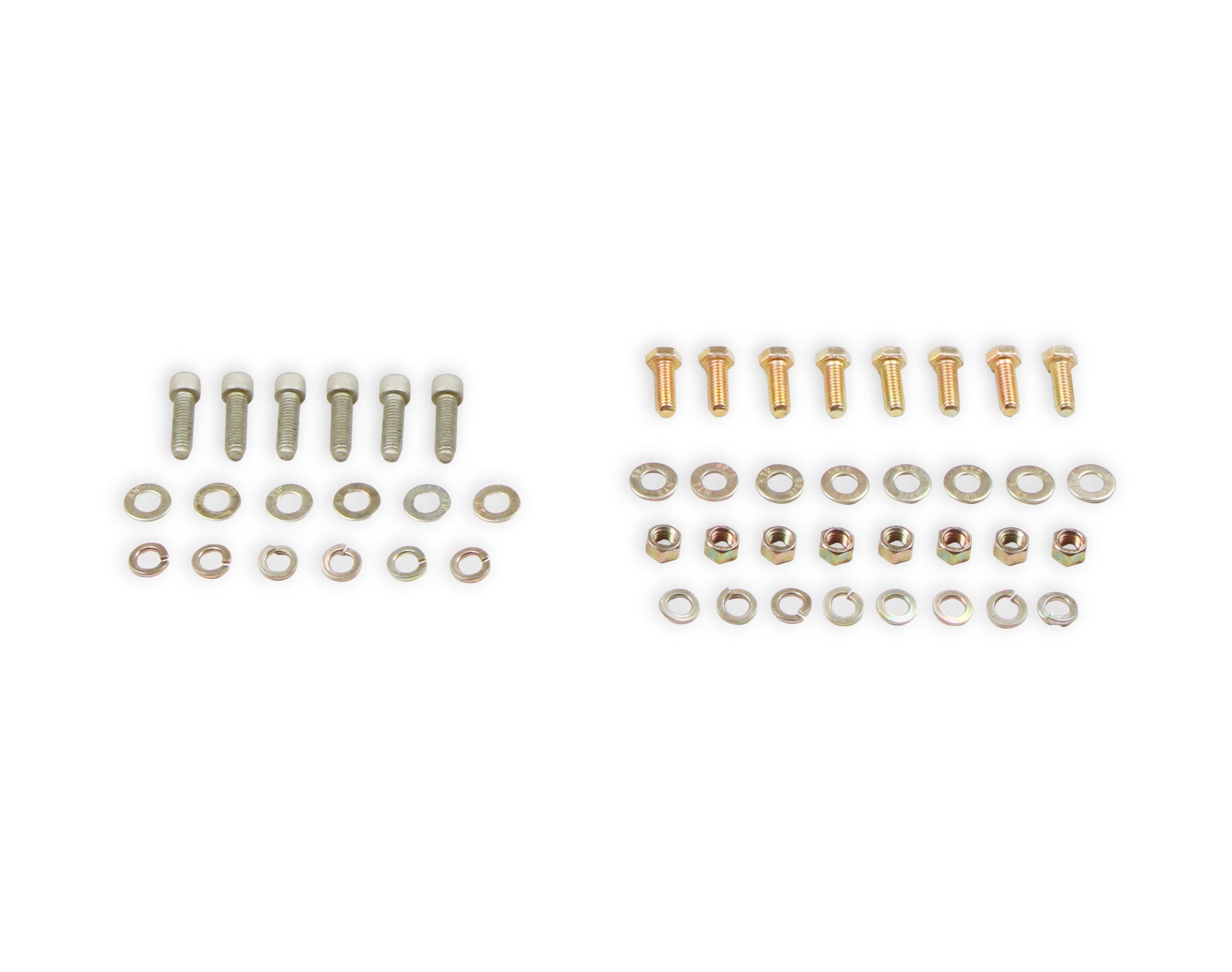

- Block Plate And Grade 8 Hardware Included
- Hydro-formed Designed Bellhousing is Roto-brated After Welding
- Red Powder Coated Finish
