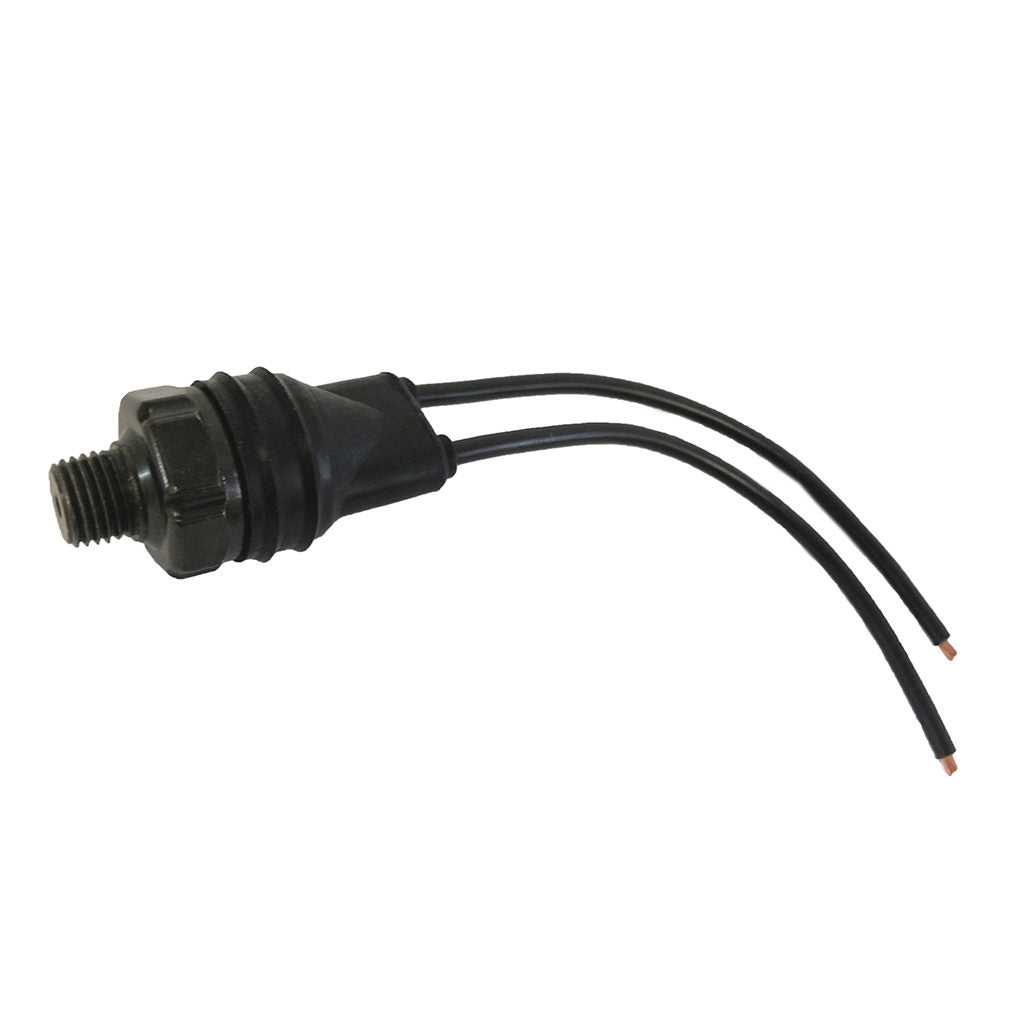

Kleinn Model 2165 Sealed 12-volt Pressure Switch - On: 165 PSI - Off: 200 PSI - 1/4" NPT

Optimize your onboard air system with the Kleinn 2165 heavy-duty sealed air pressure switch, engineered with insulated wire leads to automatically turn your air compressor on at 165 PSI and off at 200 PSI with a standard 5 percent variance tolerance. Perfectly matched for use with the Kleinn 6650RC compressor, this universal 12-volt switch receives ignition power to efficiently signal a required SPDT 30-amp relay (such as Kleinn Model 340) to automate your pneumatic system under a 20-amp maximum load. For ultimate equipment protection against switch failure and to prevent costly compressor burnout, it is highly recommended to pair this unit with a 250 PSI safety relief valve (Kleinn SKU 52250) installed directly on your air tank.

• 20 amp max load
• The use of a relay is recommended (Kleinn model 340)
• Note: 5% tolerance standard
• Non-polarized wires (Ignition 12v input, 12v Output to Relay)
• Sealed 1/4" NPT Pressure Switch
