Kleinn Air Horns 2145 - Kleinn Tank Mount Pressure Switch 1/4In M NPT - 110 PSI On/ 145 PSI Off

Kleinn Air Horns 2145 - Kleinn Tank Mount Pressure Switch 1/4In M NPT - 110 PSI On/ 145 PSI Off

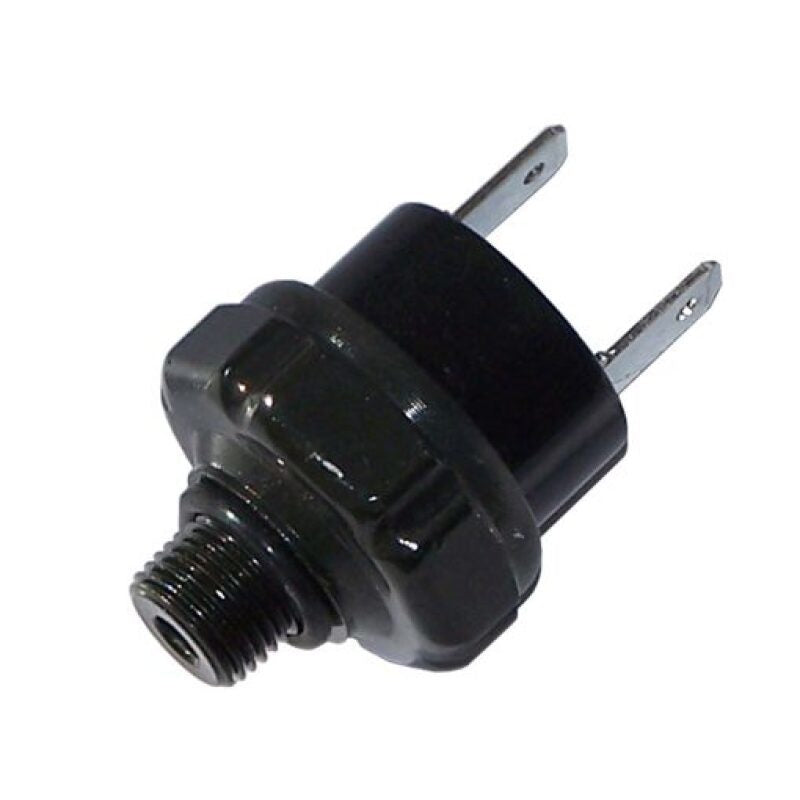

Kleinn 2145 - 110/145 PSI Sealed Pressure Switch (Male Spade Terminal Connections) - 12-Volt

Optimize your onboard air system with the Kleinn 2145 heavy-duty tank-mounted air pressure switch, engineered with two non-polarized male spade terminal connections to automatically turn your air compressor on at 110 PSI and off at 145 PSI with a standard 5 percent variance tolerance. Perfectly matched for use with Kleinn 6275RC, 6350RC, and 6450RC compressors, this universal 12-volt switch receives ignition power to efficiently signal a required SPDT 30-amp relay (such as Kleinn Model 340) to automate your pneumatic system under a 20-amp maximum load. For ultimate equipment protection against switch failure and to prevent costly compressor burnout, it is highly recommended to pair this unit with a 175 PSI safety relief valve (Kleinn SKU 52175) installed directly on your air tank.

• 2145 Pressure Switch - 110 PSI on, 145 PSI off.
• Note: 5% tolerance standard
• Non-polarized Male Spade Leads
• The use of a relay is recommended (Kleinn model 340)
