Kleinn Air Horns 2130 - Kleinn Tank Mount Pressure Switch 1/4In M NPT - 100 PSI On/ 130 PSI Off

Kleinn Air Horns 2130 - Kleinn Tank Mount Pressure Switch 1/4In M NPT - 100 PSI On/ 130 PSI Off

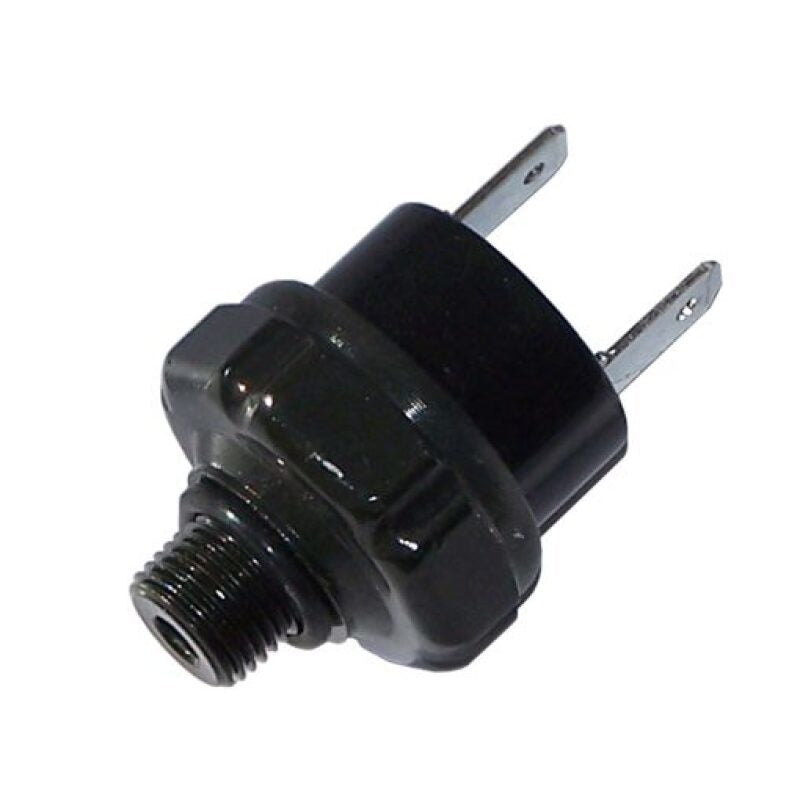

Kleinn Model 2130 Pressure Switch - On: 100 PSI - Off: 130 PSI - 2 Male Spades - 1/4" NPT

The Kleinn Model 2130 is a heavy-duty, tank-mount pressure switch engineered to automatically regulate your onboard air system, activating the compressor at 100 PSI and shutting it off at 130 PSI. Featuring a standard 5% PSI tolerance and dual male spade-style terminals for secure wiring connections, this switch utilizes 12-volt ignition power to signal a required SPDT 30/40-amp Model 340 relay, automating your compressor's operation. For critical system protection, it is highly recommended to pair this switch with a safety relief valve on the air tank; in the event of a pressure switch failure, the safety valve will blast off to release excess air, serving as an audible alert to immediately cut power to the compressor to prevent it from burning out before replacing the switch.

• 20 amp max load
• The use of a relay is recommended (Kleinn model 340)
• Note: 5% tolerance standard
• On: 90 PSI - Off: 130 PSI
• 1/4" M NPT w/ 2 Male Spade Terminals
• Non-polarized leads (Ignition 12v input, 12v Output to Relay)
