JKS JKSOGS945 - Rear Shock Relocation Kit Wrangler JK

JKS JKSOGS945 - Rear Shock Relocation Kit Wrangler JK

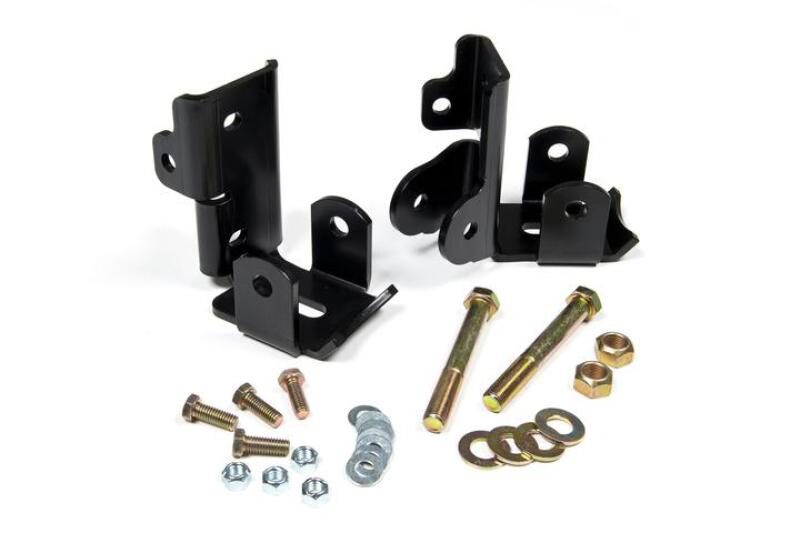

Relocate the shock mounts on the Jeep Wrangler JK for better clearance and enhanced reliability with a JKS rear shock relocation kit. The new mounting brackets are made of 1/4 inch steel and include a dual-shear shock mount and new sway bar link mount.

An integrated control arm mount skid plate adds protection.

Installation is bolt-on and requires the removal of the factory axle shock mounts, sway bar link mounts and trimming of the control arm mount. A 2 inch improvement in ground clearance is an added benefit.

The shock mounts are moved up 2-1/4 inch from the factory position and the sway bar mount moves up 1-3/4 inch. Designed for bolt-on Installation.

Features a black, powdercoat finish. Shock Mount Width: 1.60 inch; Shock Bolt Diameter: 12mm; Brackets Made From 3/16 inch Steel; Minor Drilling Required.

Features:

• Relocates the shocks higher on the axle.
• Integrated rear control arm skid plate.
• Brackets are powdercoated in classic JKS black.
• This kit relocates the rear shocks higher on the axle which allows trimming of the low-hanging factory mounts to maximize ground clearance.
