JE Pistons JG4904-3927 - Ring Sets 99.75 Bore 79 Stroke 130.5mm 30.7mm C/D -17.0 Dome 405

JE Pistons JG4904-3927 - Ring Sets 99.75 Bore 79 Stroke 130.5mm 30.7mm C/D -17.0 Dome 405

JE Pistons | JG4904-3927
SKU: BHXG-JG4904-3927
Regular price $183.99 USD
Regular price $202.39 USD Sale price $183.99 USD
Sale Sold out
Shipping calculated at checkout.

7 in stock

Quantity

JE Pistons JG4904-3927 - Ring Sets 99.75 Bore 79 Stroke 130.5mm 30.7mm C/D -17.0 Dome 405

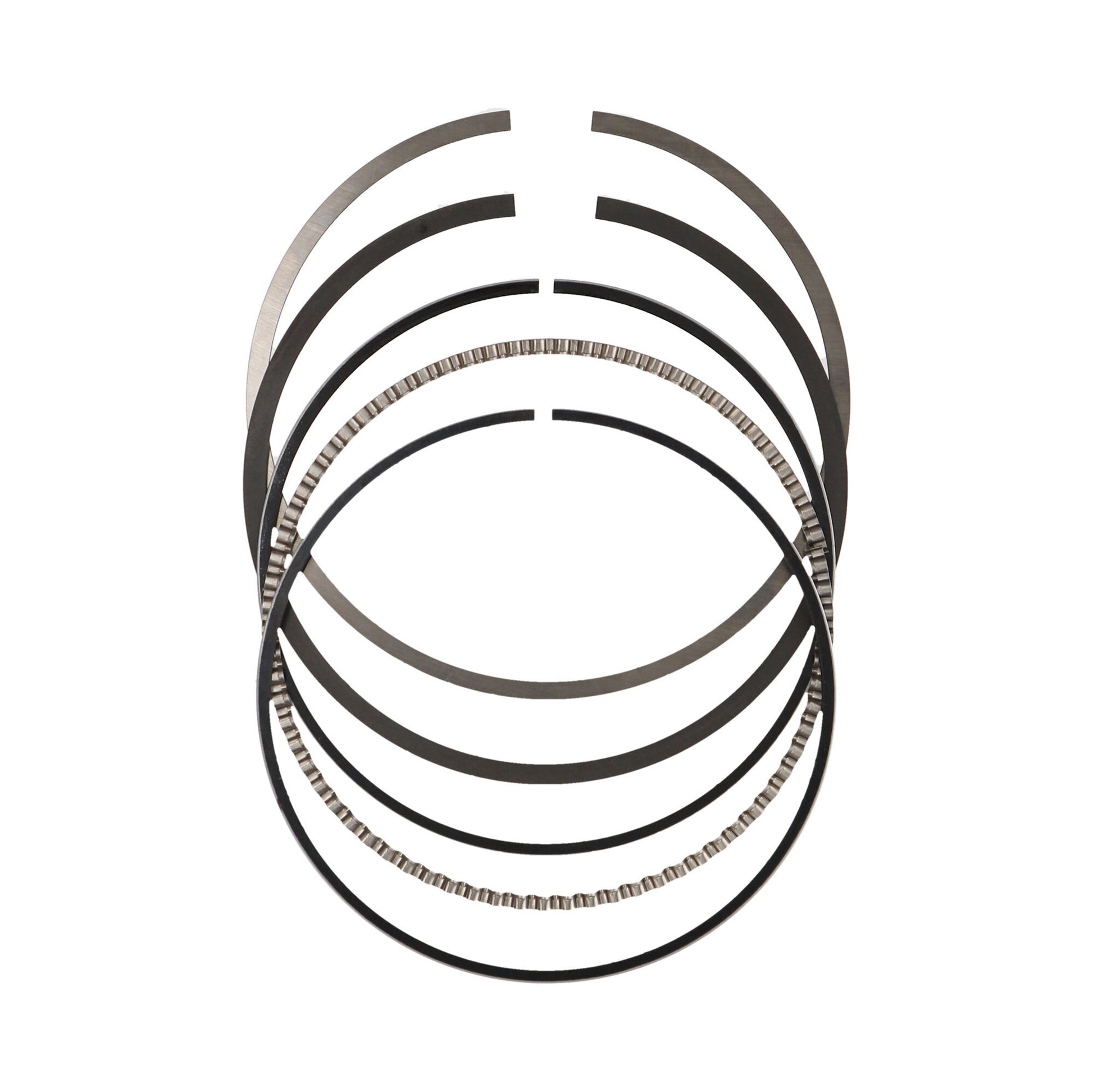

Piston Ring Set, 4 Cyl., File Fit, 0.0472 in. Carbon Steel Nitride Top Ring, 0.0472 in. Iron Phosphate Second Ring, 0.0984 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Bore Diameter: 3.927
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 0.95
Top Ring Radial Width: 0.150
Top Compression Ring Thickness: 0.0472
Top Ring Facing Material: Nitride
Top Ring Material: Carbon Steel
Top Ring Shape: Barrel Face, Back Cut, Torsional
Second Ring Axial Height: 1.20
Second Ring Radial Width: 0.165
Second Compression Ring Thickness: 0.0472
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Napier, Back Cut, Neutral
Oil Ring Axial Height: 2.50
Oil Ring Radial Width: 0.116
Oil Ring Thickness: 0.098
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: SS50U Style
Ring Set Thickness: 0.0472 in. Top x 0.0472 in. 2nd x 0.098 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 3.927 IN / 99.75 MM
Engine Type: ICE
