JE Pistons JG3108-4010-4 - Ring Sets 1.2/ 1.5/ 3.0mm/ 101.95 for Chevy LS Small Block

JE Pistons JG3108-4010-4 - Ring Sets 1.2/ 1.5/ 3.0mm/ 101.95 for Chevy LS Small Block

JE Pistons | JG3108-4010-4
SKU: BHXG-JG3108-4010-4
Regular price $303.99 USD
Regular price $334.39 USD Sale price $303.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

Quantity

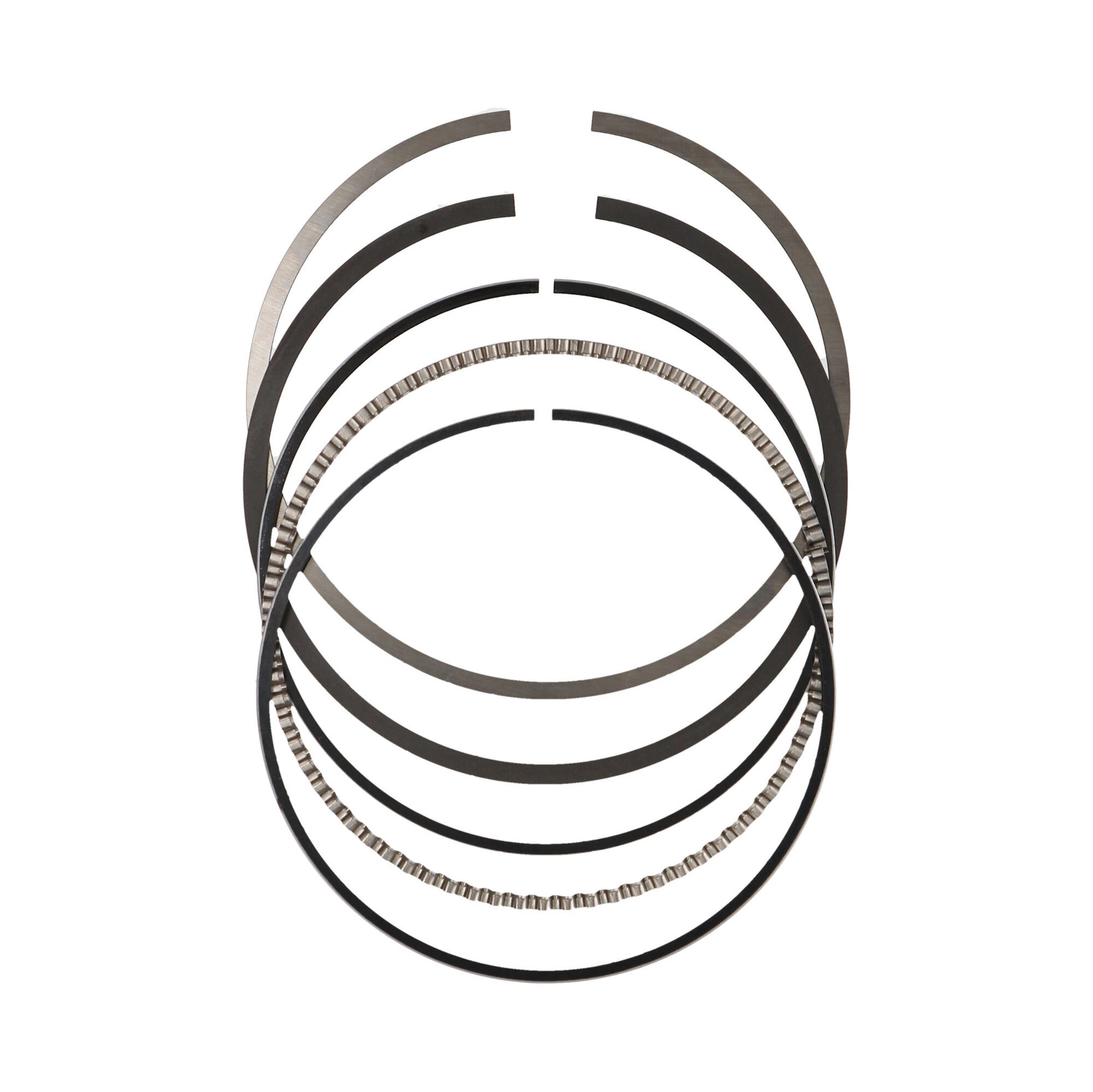

JE Pistons JG3108-4010-4 - Ring Sets 1.2/ 1.5/ 3.0mm/ 101.95 for Chevy LS Small Block

Piston Rings - Premium Race Series - 4.010 in Bore - File Fit - 1.2 x 1.5 x 3.0 mm Thick - Low Tension - Steel - Nitride - 8-Cylinder - Kit

Piston Ring Set, 8 Cyl., File Fit, 0.0472 in. Carbon Steel Nitride Top Ring, 0.0591 in. Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Bore Diameter: 4.010
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1.20
Top Ring Radial Width: 0.151
Top Compression Ring Thickness: 0.0472
Top Ring Facing Material: Nitride
Top Ring Material: Carbon Steel
Top Ring Shape: Barrel Face, Back Cut, Torsional
Second Ring Axial Height: 1.50
Second Ring Radial Width: 0.170
Second Compression Ring Thickness: 0.0591
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, Back Cut, Reverse Torsional
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.152
Oil Ring Thickness: 0.118
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0472 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Bore Diameter - Web: 4.010 IN / 101.85 MM
Engine Type: ICE
