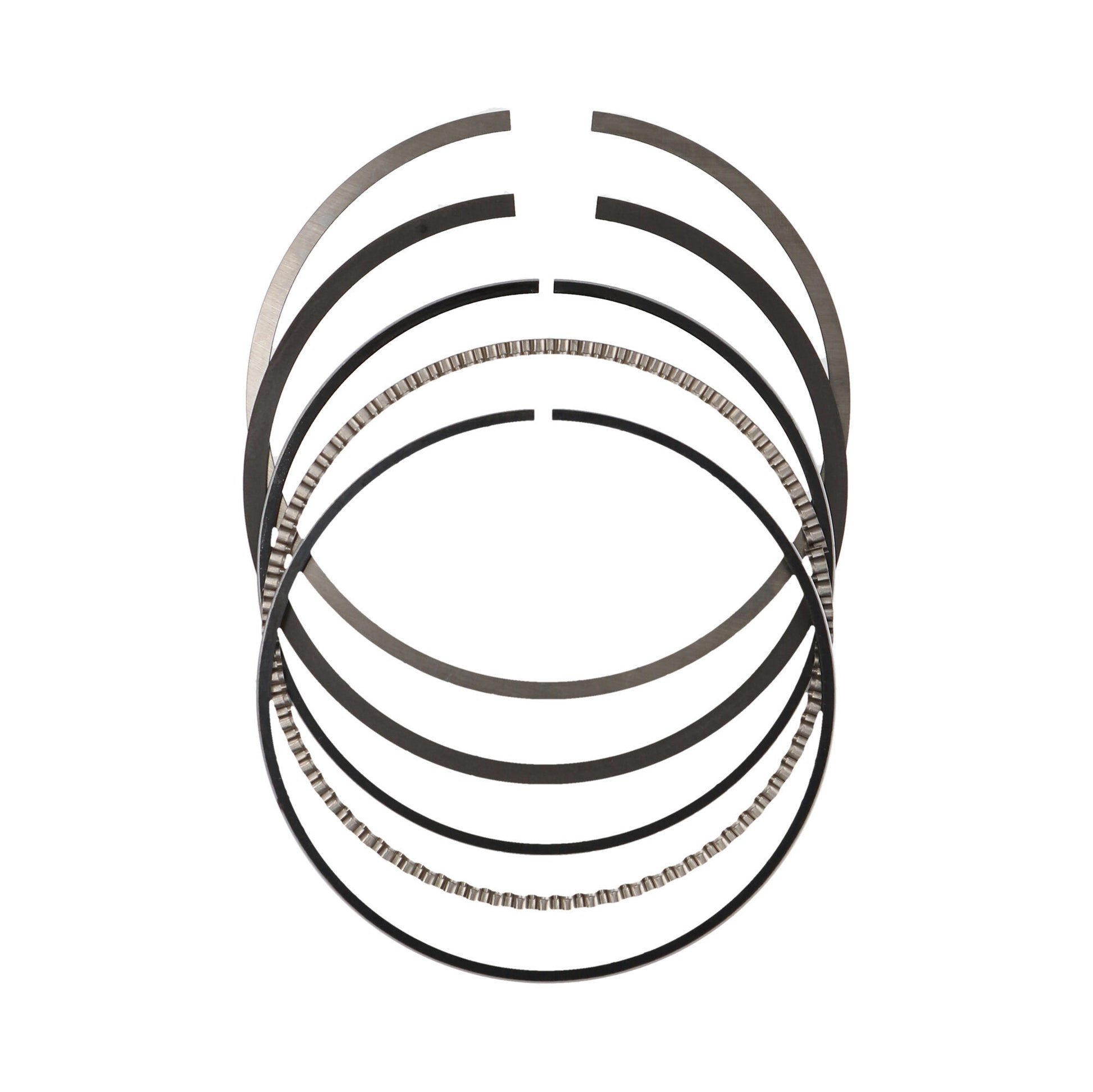

JE Pistons J714F8-4125-5 - Ring Sets .043 AH Top Ring / .043 AH Ring 2 / 3.0mm Oil Ring / 4.130 Bore

JE Pistons J714F8-4125-5 - Ring Sets .043 AH Top Ring / .043 AH Ring 2 / 3.0mm Oil Ring / 4.130 Bore

JE Pistons | J714F8-4125-5
SKU: BHXG-J714F8-4125-5
Regular price $317.99 USD
Regular price $349.79 USD Sale price $317.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons J714F8-4125-5 - Ring Sets .043 AH Top Ring / .043 AH Ring 2 / 3.0mm Oil Ring / 4.130 Bore

Piston Ring Set, 8 Cyl., File Fit, 0.043 in. Carbon Steel Plasma Moly Top Ring, 0.043 in. Ductile Iron Phosphate Second Ring, 0.1181 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Bore Diameter: 4.125
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 0.043
Top Ring Radial Width: 0.161
Top Compression Ring Thickness: 0.0430
Top Ring Facing Material: Plasma Moly
Top Ring Material: Carbon Steel
Top Ring Shape: Flat Face, Torsional
Second Ring Axial Height: 0.043
Second Ring Radial Width: 0.170
Second Compression Ring Thickness: 0.0430
Second Ring Facing Material: Phosphate
Second Ring Material: Ductile Iron
Second Ring Shape: Napier, Back Cut, Neutral
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.152
Oil Ring Thickness: 0.118
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0430 in. Top x 0.0430 in. 2nd x 0.118 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 4.125 IN / 104.78 MM
