JE Pistons J670F4-3366 - Ring Sets 1.5-1.5-4mm RING SET

JE Pistons J670F4-3366 - Ring Sets 1.5-1.5-4mm RING SET

JE Pistons | J670F4-3366
SKU: BHXG-J670F4-3366
Regular price $149.99 USD
Regular price $164.99 USD Sale price $149.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

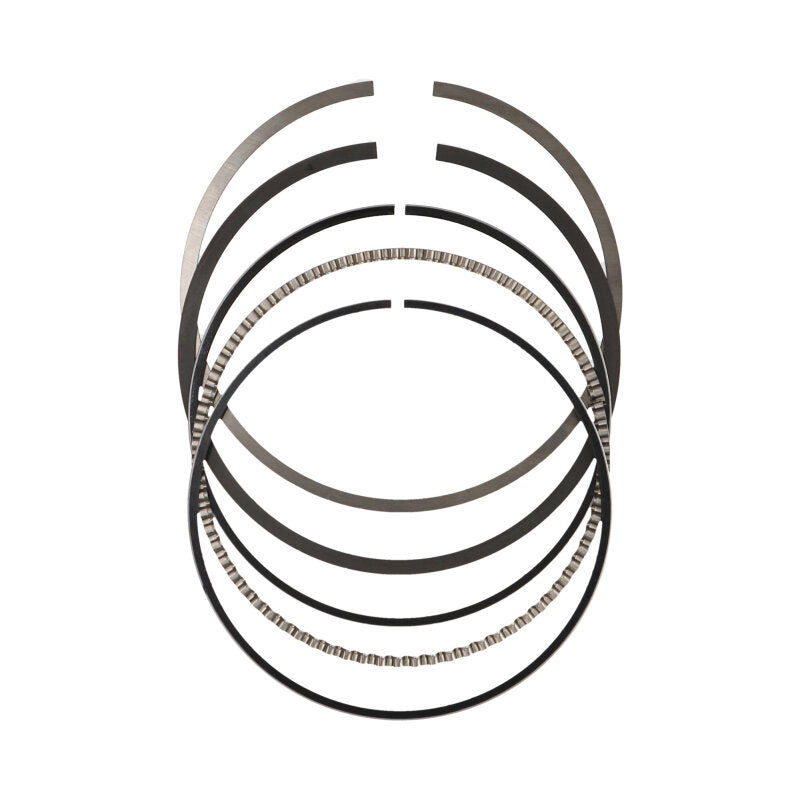

JE Pistons J670F4-3366 - Ring Sets 1.5-1.5-4mm RING SET

Piston Ring Set, 4 Cyl., File Fit, 0.0591 in. Ductile Iron Plasmy Moly Top Ring, 0.0591 in. Iron Phosphate Second Ring, 0.1575 in. Carbon Steel Chrome Standard Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Highest quality ductile iron top ring with plasma-moly inlay
  • Taper faced reverse torsional second rings
  • combined with standard or low tension oil rings
Bore Diameter: 3.366
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 1.50
Top Ring Radial Width: 0.153
Top Compression Ring Thickness: 0.0591
Top Ring Facing Material: Plasma Moly
Top Ring Material: Ductile Iron
Top Ring Shape: Barrel Face, D-wall, Neutral
Second Ring Axial Height: 1.50
Second Ring Radial Width: 0.152
Second Compression Ring Thickness: 0.0591
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, D-wall, Reverse Torsional
Oil Ring Axial Height: 4.00
Oil Ring Radial Width: 0.135
Oil Ring Thickness: 0.158
Third Ring Facing Material: Carbon Steel
Third Ring Material: Carbon Steel
Third Ring Shape: Full Seal, Flex Vent
Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.158 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Engine Type: ICE
