JE Pistons J612U6-3858 - Ring Sets 1.5-1.5-3mm RINGSET

JE Pistons J612U6-3858 - Ring Sets 1.5-1.5-3mm RINGSET

JE Pistons | J612U6-3858
SKU: BHXG-J612U6-3858
Regular price $430.68 USD
Regular price $473.75 USD Sale price $430.68 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

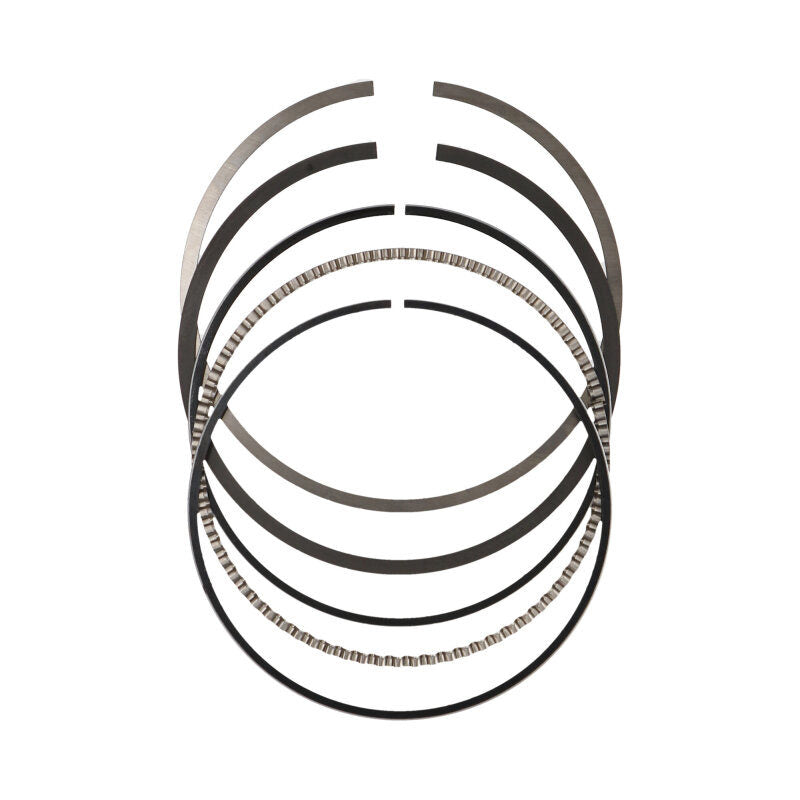

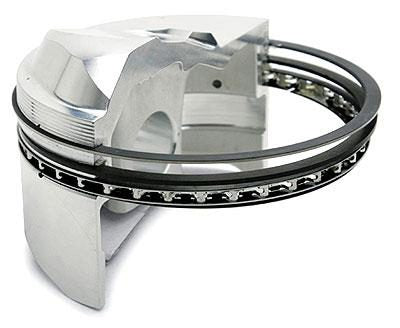

JE Pistons J612U6-3858 - Ring Sets 1.5-1.5-3mm RINGSET

Piston Ring Set, 6 Cyl., File Fit, 0.0591 in. Iron Phosphate Top Ring, 0.0591 in. Iron Phosphate Second Ring, 0.1181 in. Iron Phosphate Low Tension Oil Ring, Each.

JE Piston Rings are designed to maximize horsepower through precision sealing of combustion pressure. They are offered in a huge selection of sizes, various materials, and in multiple thicknesses to suit a wide variety of engines. JE Pistons also offers an array of custom piston ring services including back cutting, dyke cutting, lapping, grinding, and PVD coating. These services, the same used by top NHRA Pro Stock and NASCAR teams, are now available to the public and offer tremendous gains in durability, power through reduced friction, and improved ring seal.

  • Corrosive resistant coating to enhance oil retention and help prevent scuffing during break in
Bore Diameter: 3.858
Ring Type: 3 Ring
File Fit: Yes
Top Ring Axial Height: 0.95
Top Ring Radial Width: 0.167
Top Compression Ring Thickness: 0.0591
Top Ring Facing Material: Phosphate
Top Ring Material: Iron
Top Ring Shape: Taper Face, Positive Twist
Second Ring Axial Height: 1.50
Second Ring Radial Width: 0.167
Second Compression Ring Thickness: 0.0591
Second Ring Facing Material: Phosphate
Second Ring Material: Iron
Second Ring Shape: Taper Face, Positive Twist
Oil Ring Axial Height: 3.00
Oil Ring Radial Width: 0.156
Oil Ring Thickness: 0.118
Third Ring Facing Material: Iron
Third Ring Material: Iron
Third Ring Shape: 2 Piece with Inner Spring, Double Bevel
Ring Set Thickness: 0.0591 in. Top x 0.0591 in. 2nd x 0.118 in. Oil
Product Type: Engine Piston Ring Set
Industry: Automotive
Engine Type: ICE
