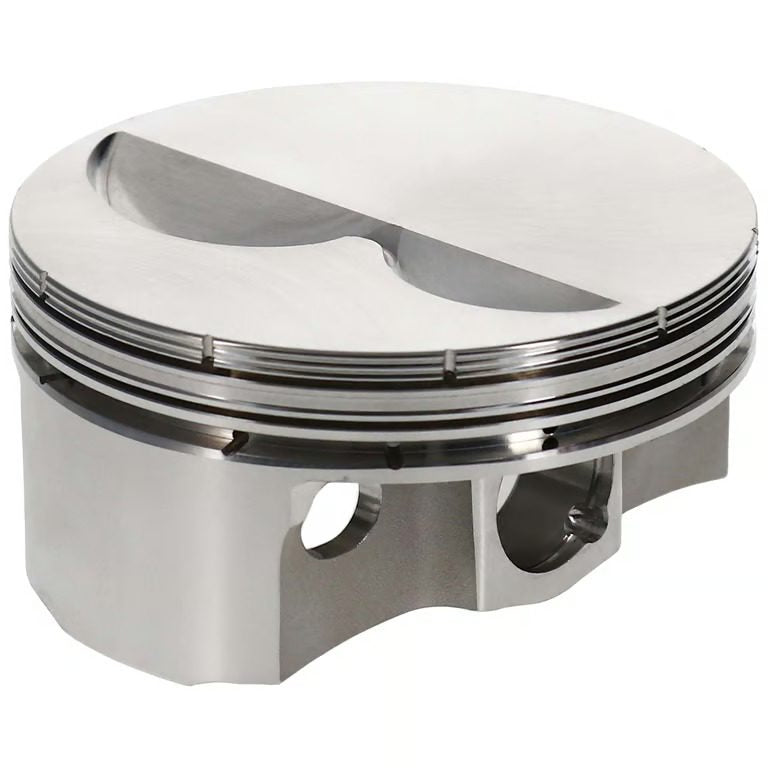

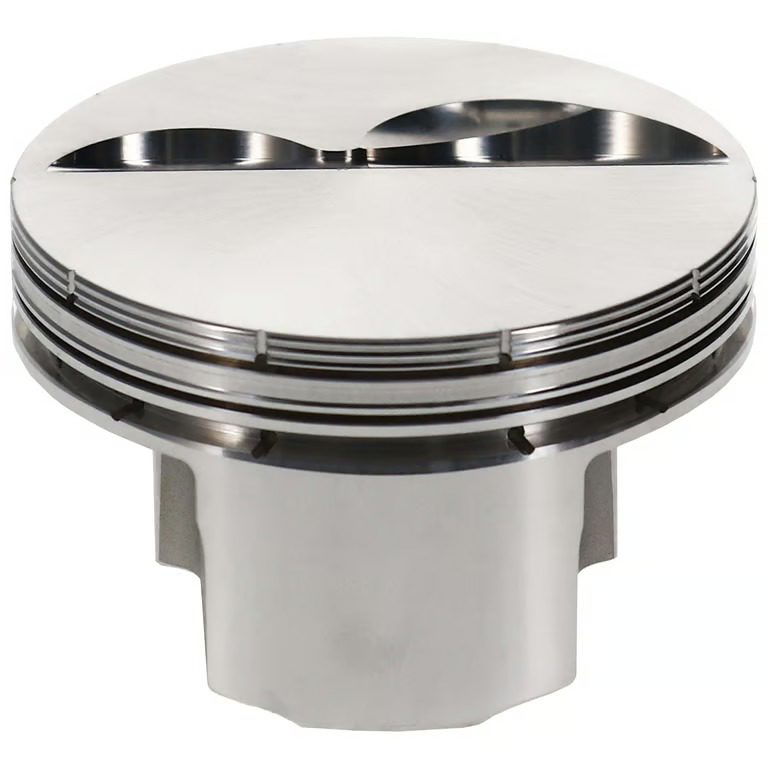

JE Pistons 377964 - Chevrolet Small Block Stock Car 4.060in Bore 1.250 CD Flat Top -3.8cc - Set of 8

JE Pistons 377964 - Chevrolet Small Block Stock Car 4.060in Bore 1.250 CD Flat Top -3.8cc - Set of 8

JE Pistons | 377964
SKU: BHXG-377964
Regular price $734.99 USD
Regular price $808.49 USD Sale price $734.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 377964 - Chevrolet Small Block Stock Car 4.060in Bore 1.250 CD Flat Top -3.8cc - Set of 8

Piston Set, 2618, Flat Top, 4.060 Bore, 1.250 CD, 0.927 Pin Dia, Set of 8.

4.060 in. Bore, 1.250 CD, Flat Top, -3.8 cc, 8 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Patented Dual Velocity Gas Ports combine the benefits of traditional gas ports, reducing ring flutter and movement while optimizing fuel efficiency and power output?without the risk of carbon build-up
  • Made 100% in the USA
Piston Volume: -3.80
Piston Material: 2618
Piston Quantity: 8
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: 927-2250-15-51C
Engine: Small Block
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Intake Depth: .280
Intake Diameter: 2.250
Intake Angle: 22
Exhaust Depth: S
Exhaust Diameter: 1.800
Exhaust Angle: 22
Stroke: 3.480
Top Groove Width: 0.04400
2nd Groove Width: 0.04400
Oil Groove Width: 0.11900
Piston To Wall Clearance: -0.005999
Piston Series: JE Pistons
Bore Diameter: 4.060
Piston Head Type: Flat Top
Compression Height: 1.250
