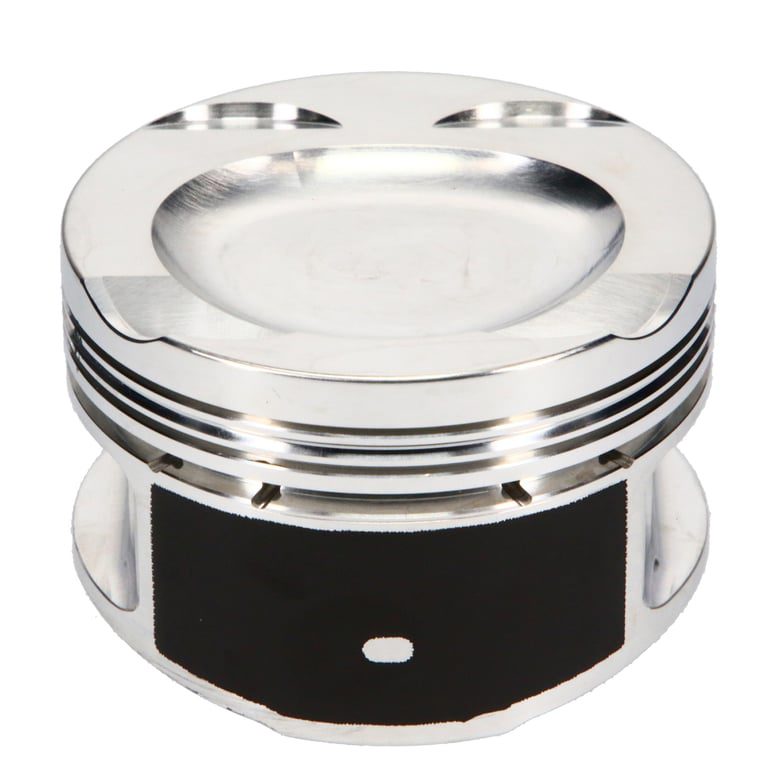

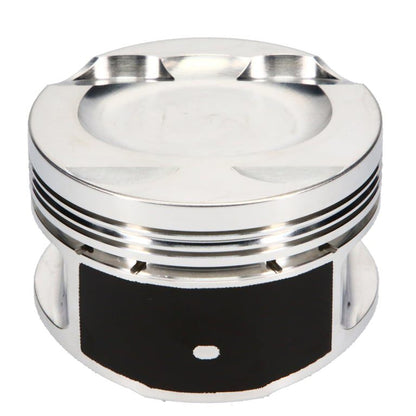

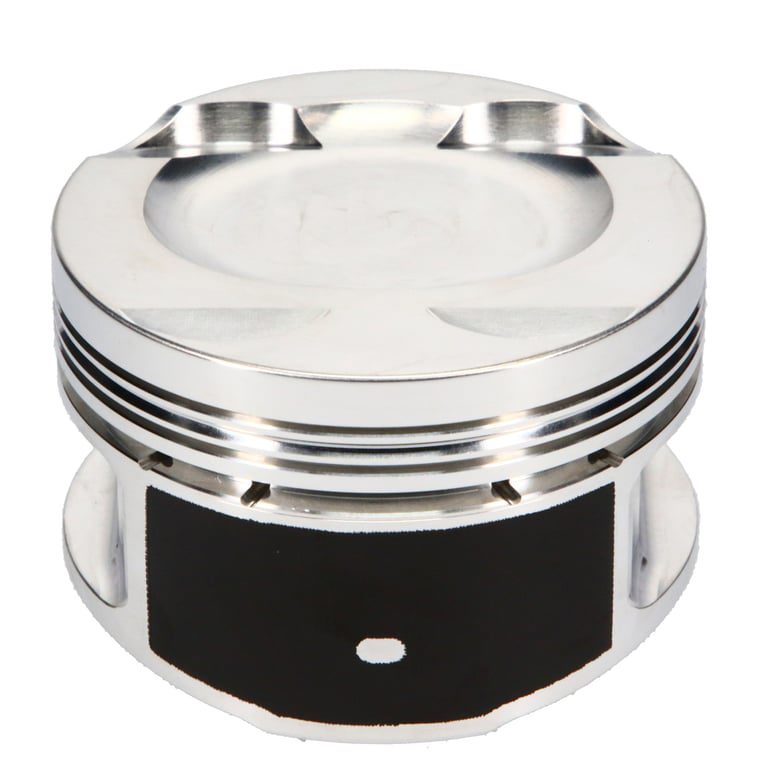

JE Pistons 363326 - VW 1.4L TSI 10.0:1 Kit 3.0315 Bore 1.141 CD 0.748 Pin Dia (Set of 4 Pistons)

JE Pistons 363326 - VW 1.4L TSI 10.0:1 Kit 3.0315 Bore 1.141 CD 0.748 Pin Dia (Set of 4 Pistons)

JE Pistons | 363326
SKU: BHXG-363326
Regular price $899.99 USD
Regular price $989.99 USD Sale price $899.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 363326 - VW 1.4L TSI 10.0:1 Kit 3.0315 Bore 1.141 CD 0.748 Pin Dia (Set of 4 Pistons)

Piston Set, 2618, Inv Dome/Dish, 3.0315 Bore, 1.141 CD, 0.748 Pin Dia, Set of 4.

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 4-VALVE
Bore Diameter: 3.032
Piston Head Type: Dish
Compression Height: 1.141
Piston Volume: -8.00
Piston Material: 2618
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Ring Set Included: Yes
Forging Type: Round
Piston Quantity: 4
Wrist Pin Outer Diameter: 0.748
Product Type: Engine Piston Kit
Product Market: European
Add-On: JG1001-3031
Engine: 1.4L TFSI 2005+
Engine Detail: 1.4L TFSI 2005+
Wrist Pin Wall Thickness: 0.160
Wrist Pin Length: 2.050
Make: Volkswagen
Industry: Automotive
Bore Diameter - Web: 3.032 IN
Engine Type: ICE
