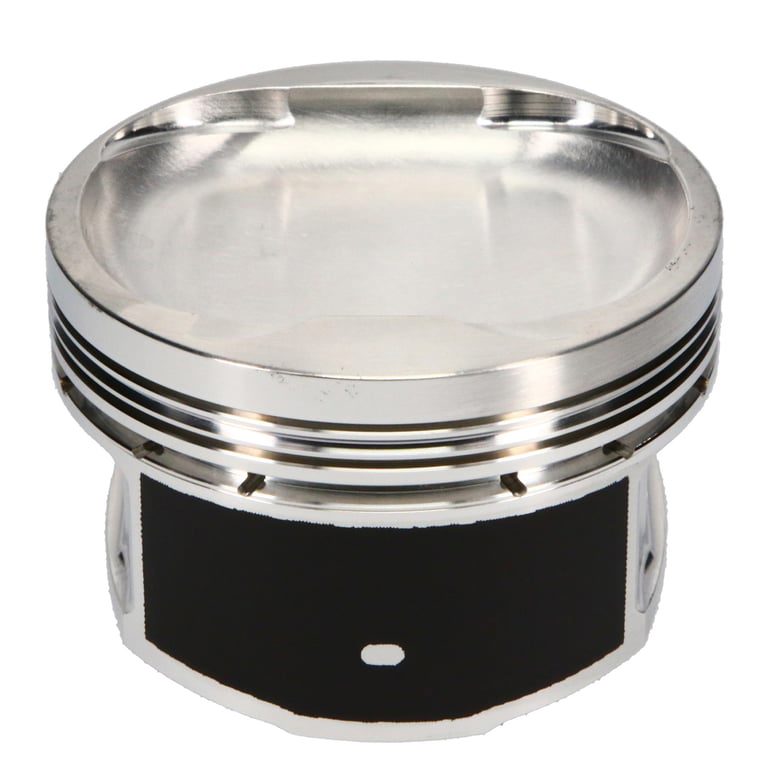

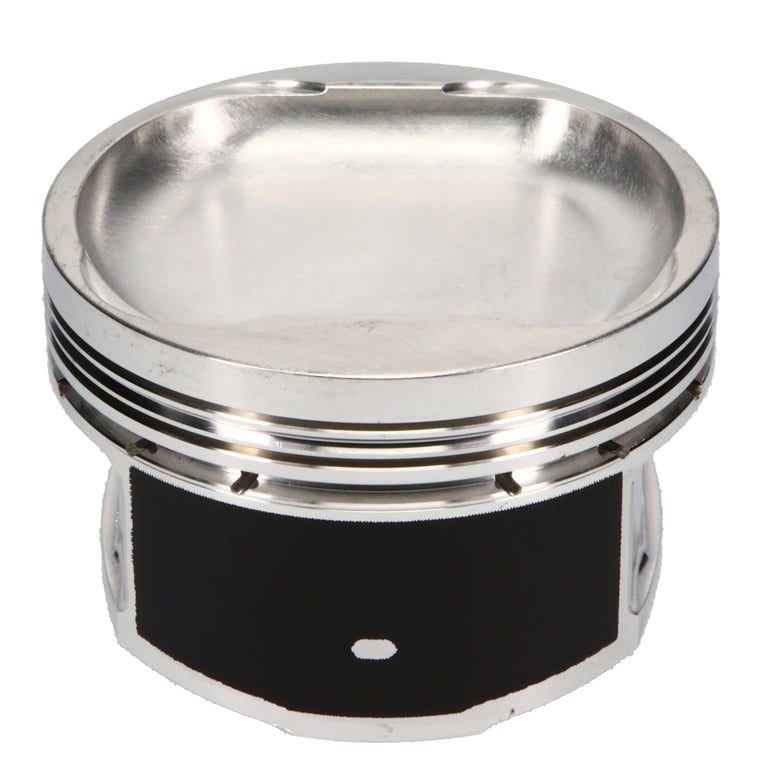

JE Pistons 361469 - Piston Set, 2618, Inv Dome/Dish, 3.465 Bore, 1.280 CD, 0.866 Pin, Set of 4

Piston Set, 2618, Inv Dome/Dish, 3.465 Bore, 1.280 CD, 0.866 Pin, Set of 4.

JE, Toyota, 5S-FE With 3S-GTE Head, 3.465 in. Bore, 9.00:1, Inverted Dome/Dish, 4 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.866
Wrist Pin Length: 2.500
Wrist Pin Wall Thickness: 0.150
Engine Detail: 5S-FE with 3S-GTE Head
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: JG1001-3465
Engine: 5S-FE with 3S-GTE Head
Make: Toyota
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 88.00 MM
Piston Series: JE Pistons
Cylinder Head: 3S-GTE
Bore Diameter: 88.00
Piston Head Type: Dish
Compression Height: 1.280
Piston Volume: -12.50
Piston Material: 2618
Piston Quantity: 4
Forging Type: Round
Piston Average Weight: 341
Ring Set Included: Yes
