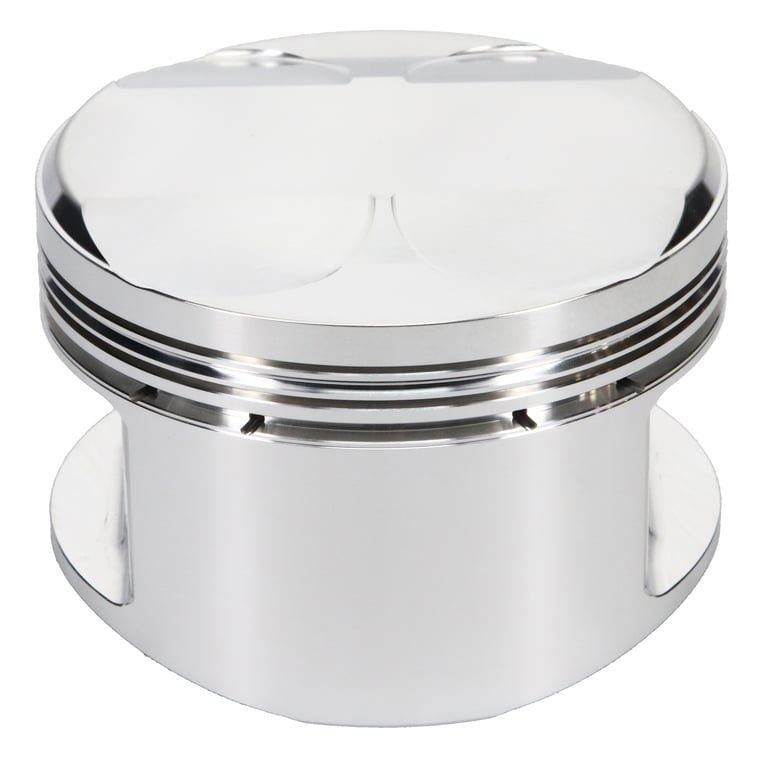

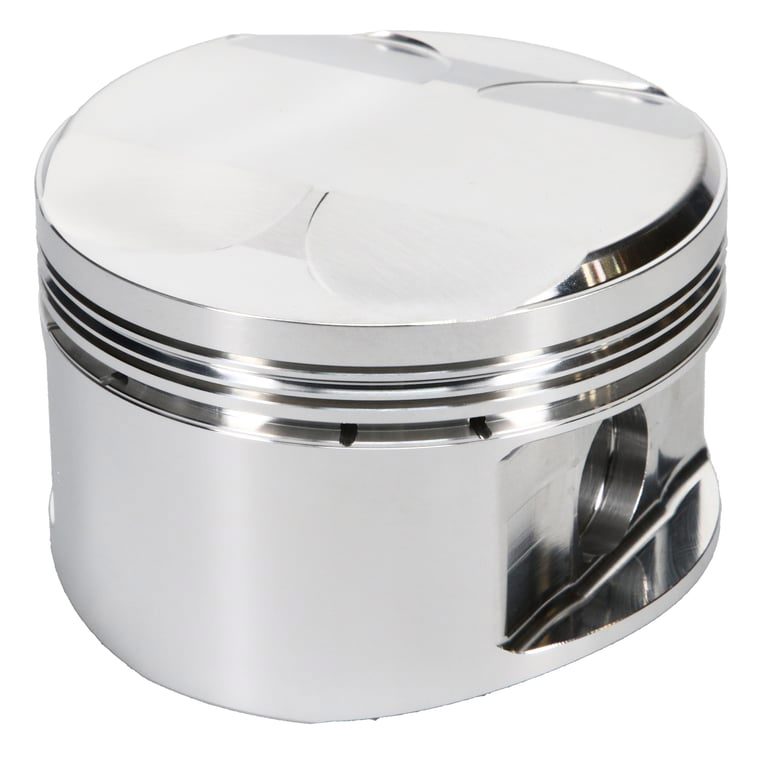

JE Pistons 327835 - Nissan TB48DE 100.0mm Bore 102mm Stroke 23.8cc Dome 11.30:1 CR (Set of 6)

JE Pistons 327835 - Nissan TB48DE 100.0mm Bore 102mm Stroke 23.8cc Dome 11.30:1 CR (Set of 6)

JE Pistons | 327835
SKU: BHXG-327835
Regular price $1,349.99 USD
Regular price $1,484.99 USD Sale price $1,349.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 327835 - Nissan TB48DE 100.0mm Bore 102mm Stroke 23.8cc Dome 11.30:1 CR (Set of 6)

Piston Set, 2618, Dome, 3.937 Bore, 1.605 CD, 0.905 Pin, Set of 6.

JE, Nissan, TB48DE, 3.937 in. Bore, 11.30:1, Dome, 6 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: TB48DE
Bore Diameter: 100.00
Piston Head Type: Dome
Compression Height: 1.605
Piston Volume: 23.80
Piston Material: 2618
Piston Quantity: 6
Forging Type: Round
Piston Average Weight: 502
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.905
Wrist Pin Length: 2.500
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: JG1001-3937
Engine: TB48DE
Make: Nissan
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 100.00 MM
