JE Pistons 321253 - - Nissan, VQ35DE, 95.50 mm Bore, Piston Kit

JE Pistons 321253 - - Nissan, VQ35DE, 95.50 mm Bore, Piston Kit

JE Pistons | 321253
SKU: BHXG-321253
Regular price $1,349.99 USD
Regular price $1,484.99 USD Sale price $1,349.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

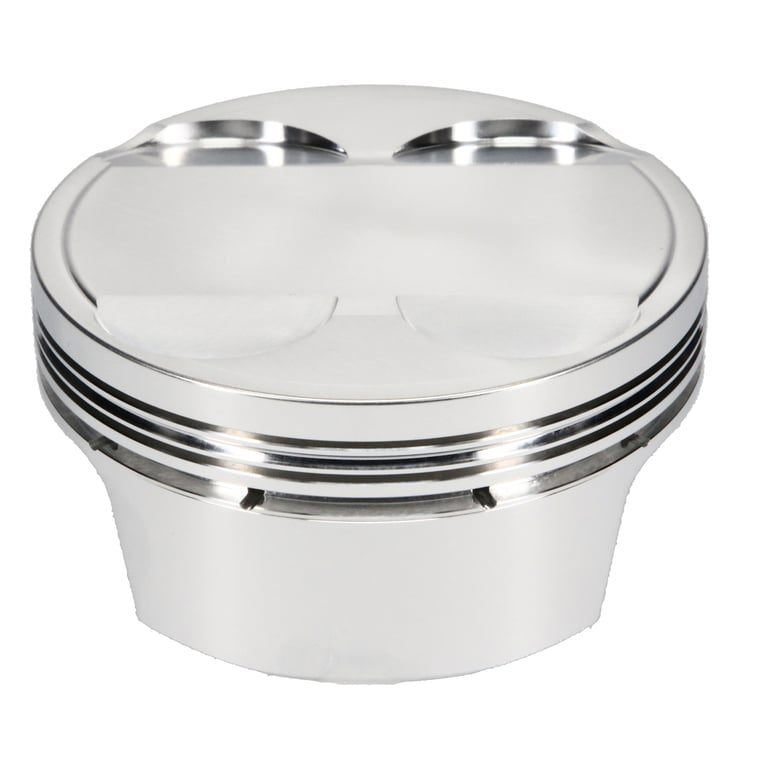

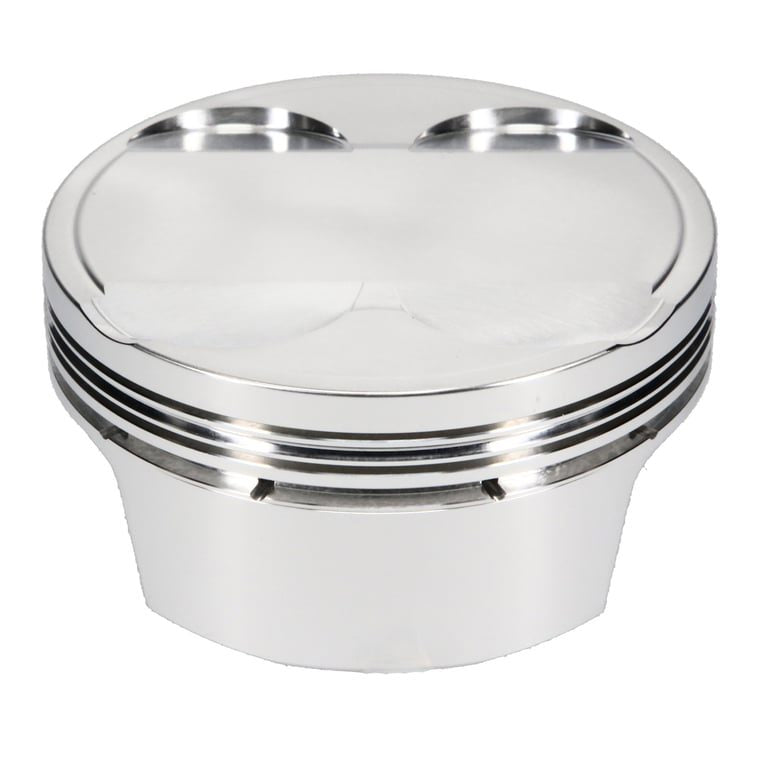

JE Pistons 321253 - - Nissan, VQ35DE, 95.50 mm Bore, Piston Kit

Piston Set, 2618, Dome, 3.760 Bore, 1.165 CD, 0.866 Pin, Set of 6.

JE, Nissan, VQ35DE, 3.760 in. Bore, 11.50:1, Dome, 6 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: VQ35DE 3.5L
Bore Diameter: 95.50
Piston Head Type: Dome
Compression Height: 1.165
Piston Volume: 9.60
Piston Material: 2618
Piston Quantity: 6
Forging Type: FSR
Piston Average Weight: 404
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.866
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Sport Compact
Add-On: JG1001-3760
Engine: VQ35DE
Engine - Web: VQ35DE
Make: Nissan
Make - Web: Nissan
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Title - Web: JE Pistons Nissan VQ35DE Piston Kit - 95.50 mm Bore - 1.165 in. CH, 9.60 CC
Engine Type: ICE
Bore Diameter - Web: 95.50 MM
EBAY Category ID: 33623
Out of Stock Message: Please Allow Approx. 6-8 Weeks or Less for Shipping
