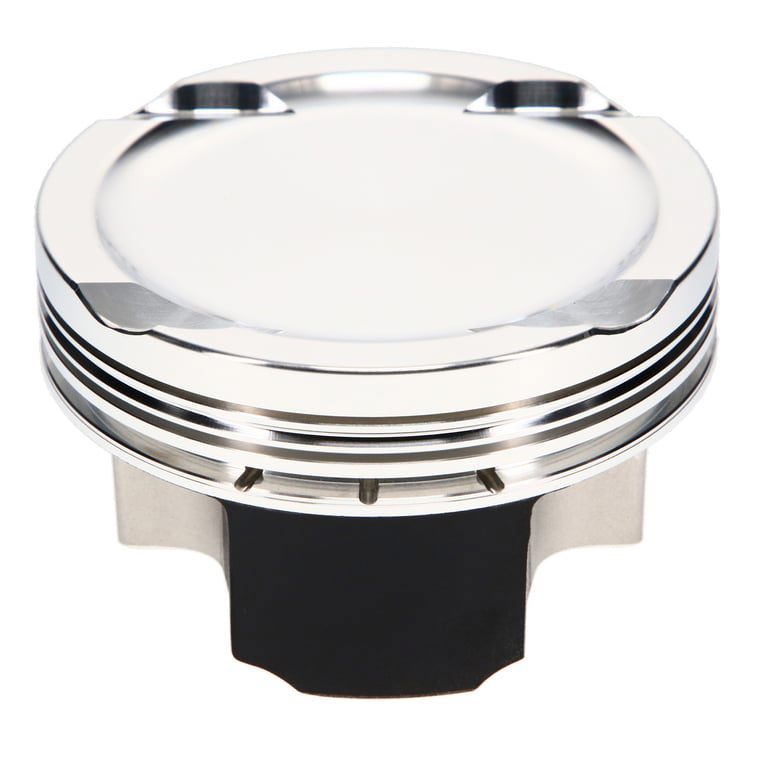

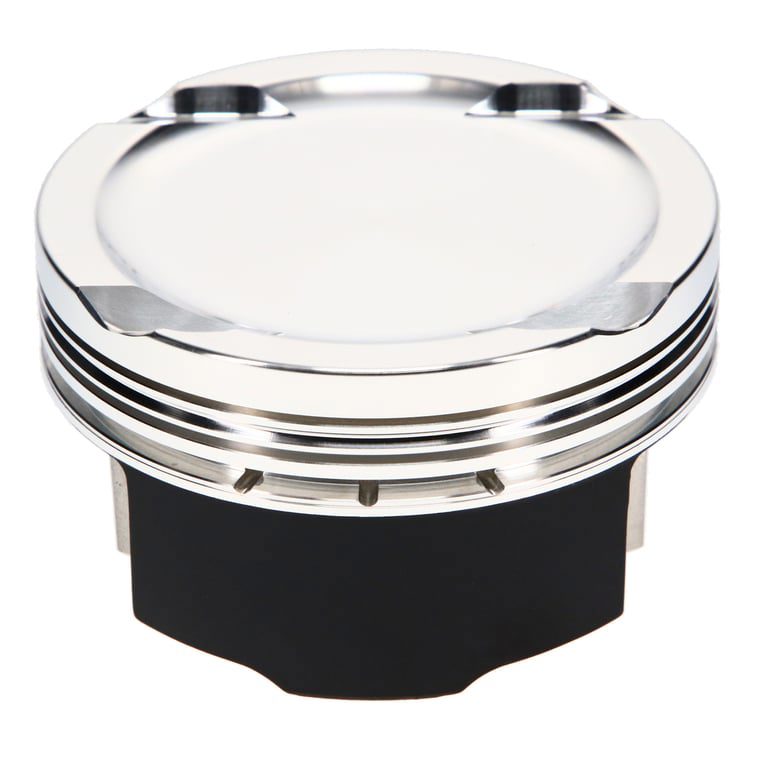

JE Pistons 308177 - 03-08 Audi R8 / Lamborghini Gallardo 5.2L V10 82.5in Bore STD 9:1 CR Set of 10 Pistons

JE Pistons 308177 - 03-08 Audi R8 / Lamborghini Gallardo 5.2L V10 82.5in Bore STD 9:1 CR Set of 10 Pistons

JE Pistons | 308177
SKU: BHXG-308177
Regular price $2,699.99 USD
Regular price $2,969.99 USD Sale price $2,699.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 308177 - 03-08 Audi R8 / Lamborghini Gallardo 5.2L V10 82.5in Bore STD 9:1 CR Set of 10 Pistons

Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.086 CD, 0.787 Pin, Set of 10.

JE, Lamborghini, 5.0L V10 Gallardo, 3.248 in. Bore, 9.00:1, Inverted Dome/Dish, 1 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Cylinder Head: 5.0L V10
Bore Diameter: 82.50
Piston Head Type: Dish
Compression Height: 1.086
Piston Volume: -11.20
Piston Material: 2618
Piston Quantity: 0
Forging Type: FSR
Piston Average Weight: 271
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0400
Second Compression Ring Thickness: 0.0480
Oil Ring Thickness: 0.111
Wrist Pin Material: 9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter: 0.787
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.210
Product Type: Engine Piston Kit
Product Market: European
Add-On: XC8255
Engine: 5.0L V10 Gallardo
Make: Lamborghini
Industry: Automotive
Engine Type: ICE
Bore Diameter - Web: 82.50 MM
