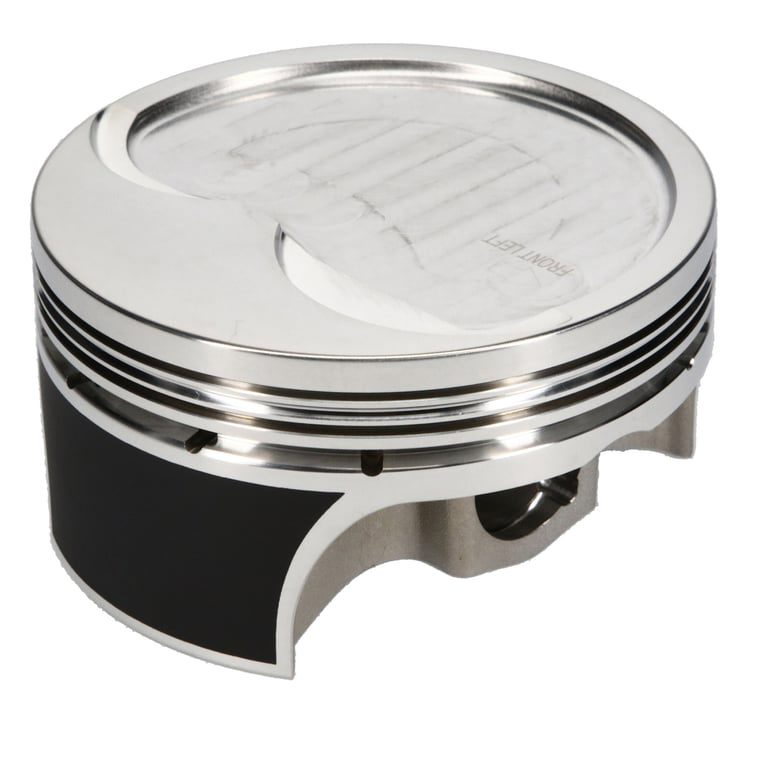

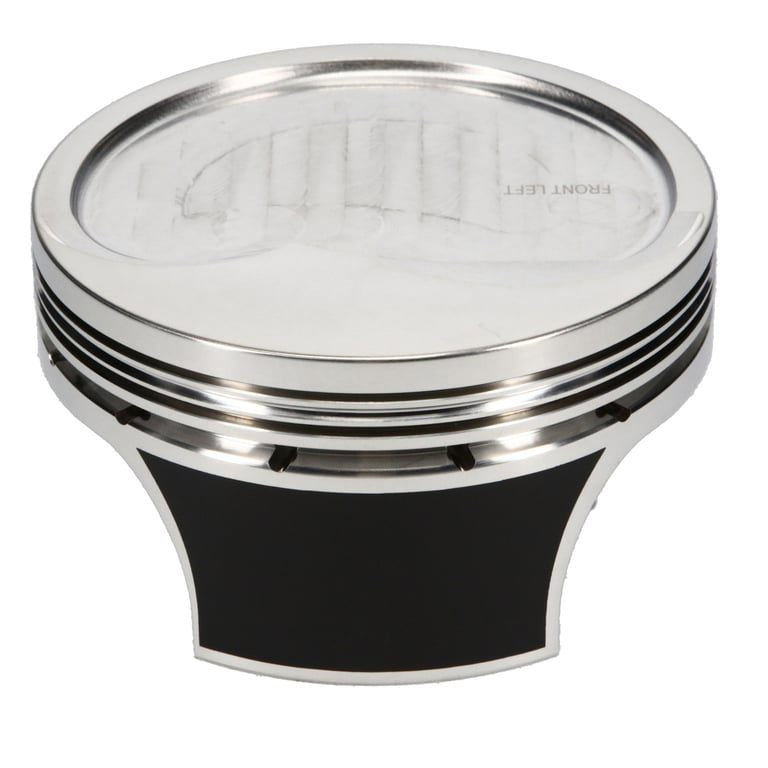

JE Pistons 288003 - Chevy LS2 4.000in - 3.622in Stroke -14.3cc Dish Set of 8 Pistons

JE Pistons 288003 - Chevy LS2 4.000in - 3.622in Stroke -14.3cc Dish Set of 8 Pistons

JE Pistons | 288003
SKU: BHXG-288003
Regular price $936.99 USD
Regular price $1,030.69 USD Sale price $936.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 288003 - Chevy LS2 4.000in - 3.622in Stroke -14.3cc Dish Set of 8 Pistons

Piston Set, 4032, Inv Dome/Dish, 4.000 Bore, 1.315 CD, 0.927 Pin, Set of 8.

SRP Pro 4032, Chevrolet, LS Gen III/IV, 4.000 in. Bore, 1.315 CD, Inverted Dome/Dish, 8 Cyl. Piston Kit

SRP Professional pistons combine forged piston durability with modern performance technology for an extremely capable forged piston kit that doesn?t break the bank. Forged from 4032 aluminum, SPR Pro pistons experience minimal thermal expansion, making them perfect for a high-performance, reliable engine build from the track to the drag strip. All SRP Pro pistons include premium ring sets, wrist pins and locks. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: SRP Pro 4032
Cylinder Head: LSX/L92 12 DEG
Bore Diameter: 4.000
Piston Head Type: Dish
Compression Height: 1.300
Piston Volume: -14.30
Piston Material: 4032
Forging Type: FSR
Piston Average Weight: 430
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0480
Second Compression Ring Thickness: 0.0600
Oil Ring Thickness: 0.119
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: JG3101-4000-7
Engine: LS Gen III/IV
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Stroke: 3.622
Oil Groove Width: 0.11900
2nd Groove Width: 0.06000
Top Groove Width: 0.04800
Intake Angle: 15
Exhaust Angle: 15
Exhaust Diameter: 1.870
Exhaust Depth: .140
Intake Diameter: 2.265
Intake Depth: .200
Piston To Wall Clearance: -0.003
