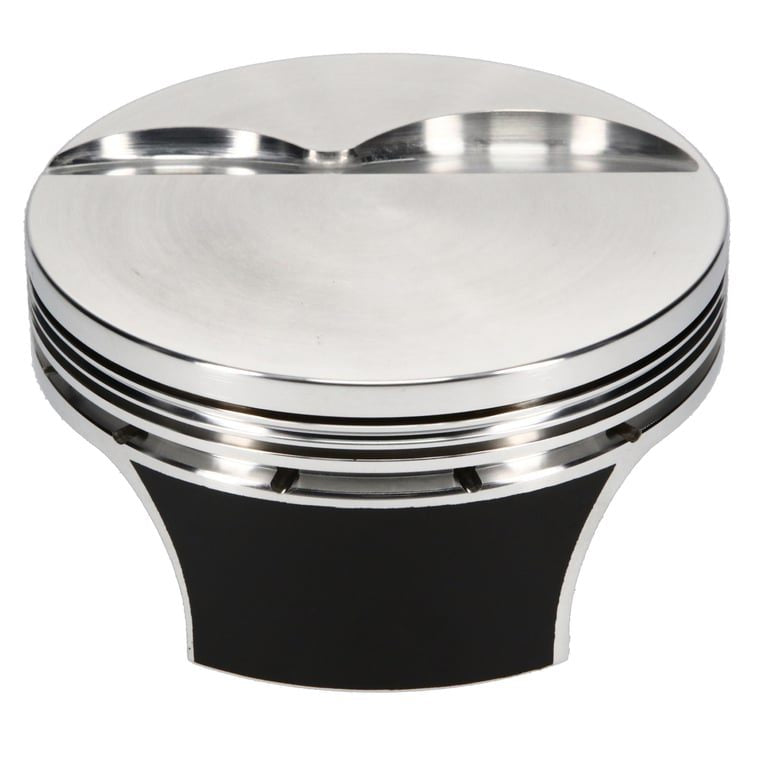

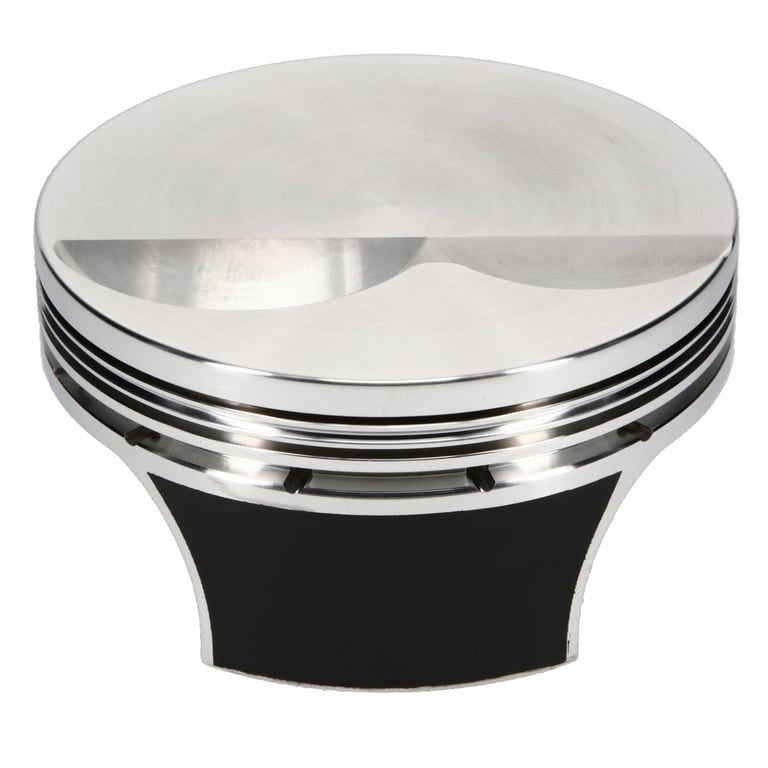

JE Pistons 279670 - Small Block Ford (20 Degree Head) 4.030 Bore / 1.600 CD / -5.00 CC - Set of 8

JE Pistons 279670 - Small Block Ford (20 Degree Head) 4.030 Bore / 1.600 CD / -5.00 CC - Set of 8

JE Pistons | 279670
SKU: BHXG-279670
Regular price $839.99 USD
Regular price $923.99 USD Sale price $839.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 279670 - Small Block Ford (20 Degree Head) 4.030 Bore / 1.600 CD / -5.00 CC - Set of 8

Piston Set, 2618, Flat Top, 4.030 Bore, 1.600 CD, 0.912 Pin, Set of 8.

SRP Pro 2618, Ford, Small Block Ford, 4.030 in. Bore, 1.600 CD, Flat Top, 8 Cyl. Piston Kit

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you?re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Ring groove design placement proven to maintain positive seal in high-HP, boosted applications, along with stout top land thickness for improved strength
  • Low-friction skirt coating reduces wear and reduces operating noise while optimizing performance
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Accumulator groove helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Made 100% in the USA
Piston Series: SRP Pro 2618
Cylinder Head: SMALL BLOCK FORD 20 DEG
Bore Diameter: 4.030
Piston Head Type: Flat
Compression Height: 1.600
Piston Volume: -5.00
Piston Material: 2618
Forging Type: FSR
Piston Average Weight: 470
Ring Set Included: Yes
Top Compression Ring Thickness: 0.0480
Second Compression Ring Thickness: 0.0600
Oil Ring Thickness: 0.119
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.912
Wrist Pin Length: 2.250
Wrist Pin Wall Thickness: 0.140
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: JG31F8-4030-2
Engine: Small Block
Make: Ford
Industry: Automotive
Bore Diameter - Web: 4.030 IN
Engine Type: ICE
