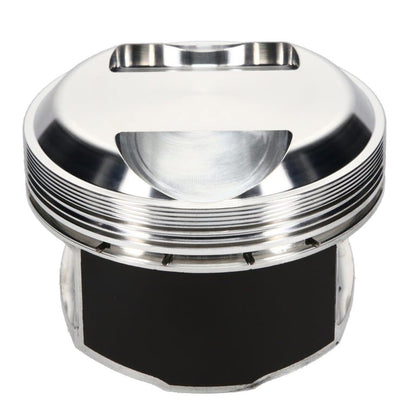

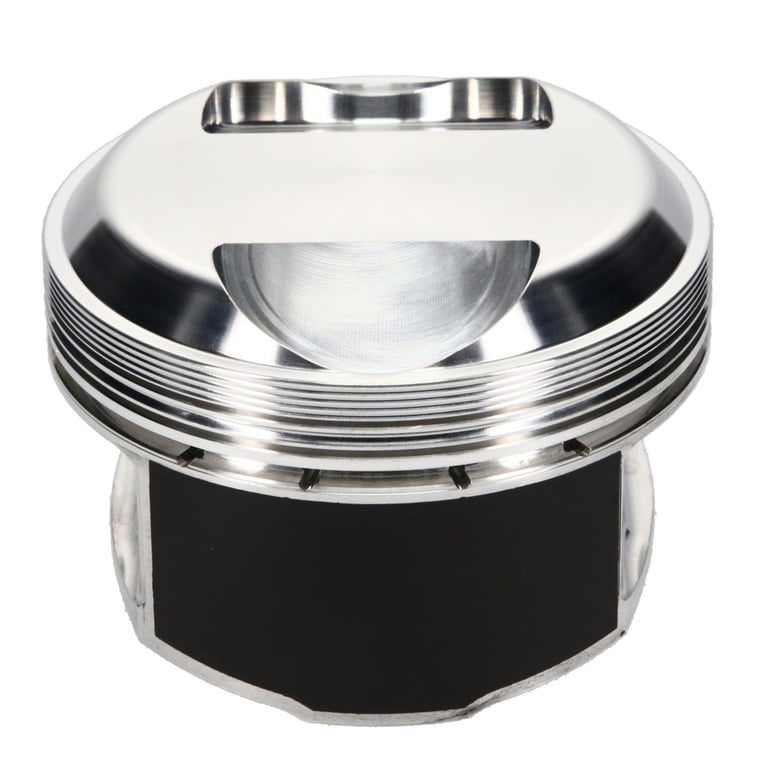

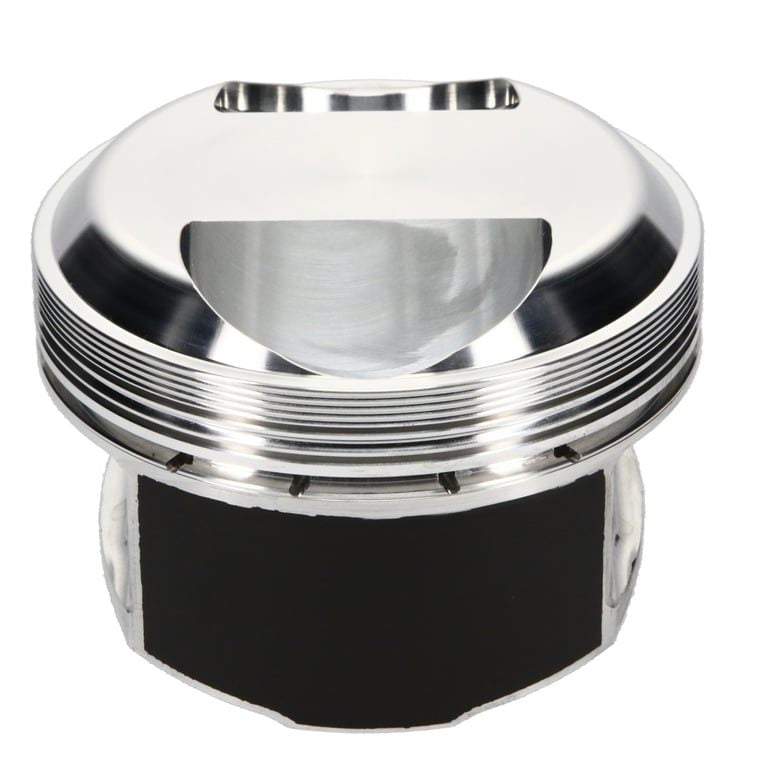

JE Pistons 274644 - PORSCH 3.2L DM KIT Set of 6 Pistons

JE Pistons 274644 - PORSCH 3.2L DM KIT Set of 6 Pistons

JE Pistons | 274644
SKU: BHXG-274644
Regular price $1,475.99 USD
Regular price $1,623.59 USD Sale price $1,475.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 274644 - PORSCH 3.2L DM KIT Set of 6 Pistons

Piston Set, 2618, Dome, 3.740 Bore, 1.290 CD, 0.905 Pin Dia, Set of 6.

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
  • Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Piston Series: JE Pistons
Bore Diameter: 3.740
Piston Head Type: Dome
Compression Height: 1.290
Piston Volume: 47.00
Piston Material: 2618
Piston Quantity: 6
Wrist Pin Material: H13 Tool Steel Alloy
Wrist Pin Outer Diameter: 0.905
Wrist Pin Length: 2.500
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: European
Add-On: 905-2500-15-TSC
Engine: 3.2L Aircooled
Make: Porsche
Industry: Automotive
Engine Type: ICE
Intake Depth: .180
Intake Diameter: 2.050
Intake Angle: 25
Exhaust Depth: .135
Exhaust Diameter: 1.800
Exhaust Angle: 30
Stroke: 2.929
Top Groove Width: 0.05950
2nd Groove Width: 0.07000
Oil Groove Width: 0.13900
Piston To Wall Clearance: -0.0015
