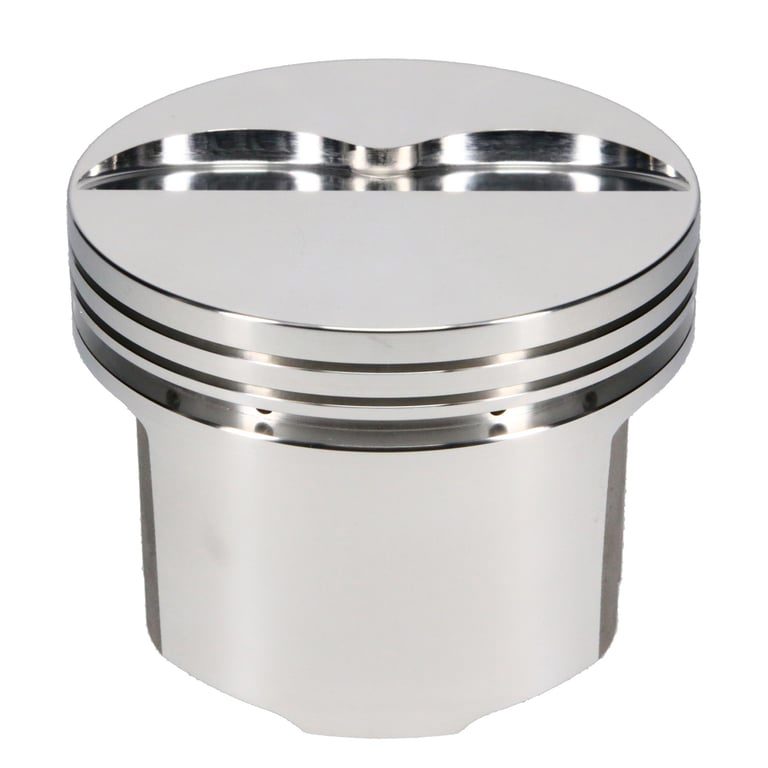

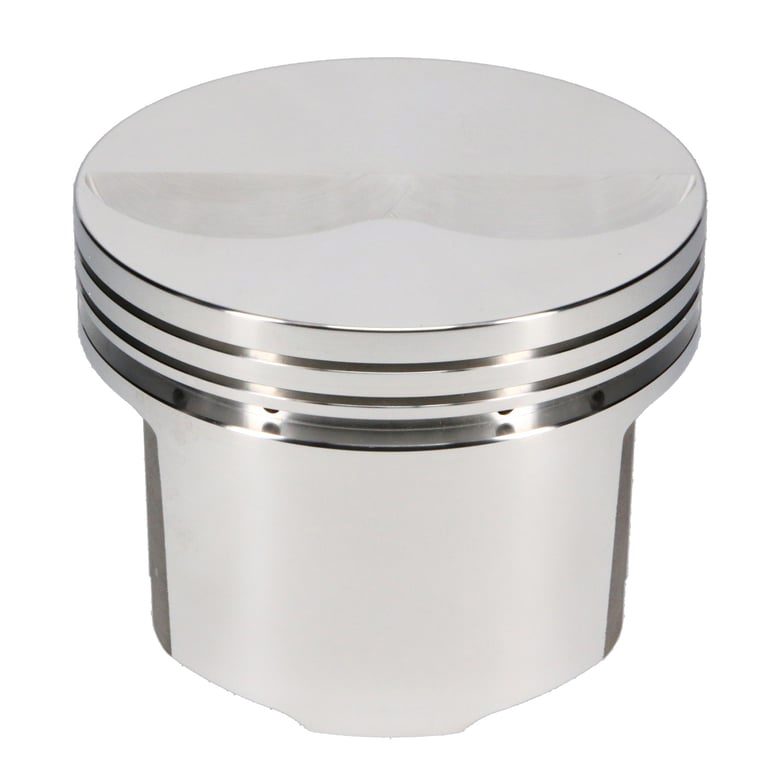

JE Pistons 213456 - SRP - Chrysler, Big Block, 4.360 in. Bore, Piston Kit

JE Pistons 213456 - SRP - Chrysler, Big Block, 4.360 in. Bore, Piston Kit

JE Pistons | 213456
SKU: BHXG-213456
Regular price $734.99 USD
Regular price $808.49 USD Sale price $734.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 213456 - SRP - Chrysler, Big Block, 4.360 in. Bore, Piston Kit

Piston Set, 4032, Flat Top, 4.360 Bore, 2.062 CD, 1.094 Pin, Set of 8.

SRP, Chrysler, Big Block Chrysler, 4.360 in. Bore, 2.062 CD, Flat Top, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Piston Series: SRP
Cylinder Head: 440 WEDGE
Bore Diameter: 4.360
Piston Head Type: Flat
Compression Height: 2.062
Piston Volume: -6.00
Piston Material: 4032
Forging Type: FSR
Piston Average Weight: 705
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.188
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 1.094
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: S100S8-4360-5
Engine: Big Block
Engine - Web: Big Block
Make: Chrysler
Make - Web: Chrysler
Industry: Automotive
Category Hierarchy: Auto>All Piston Kits
Title - Web: SRP Chrysler Big Block Piston Kit - 4.360 in. Bore - 2.062 in. CH, -6.00 CC
Bore Diameter - Web: 4.360 IN
Engine Type: ICE
EBAY Category ID: 33623
Out of Stock Message: Please Allow Approx. 6-8 Weeks or Less for Shipping
