JE Pistons 206066 - Ford Small Block 4.030in Bore 1.165in CH -5.00 CC Piston Kit

JE Pistons 206066 - Ford Small Block 4.030in Bore 1.165in CH -5.00 CC Piston Kit

JE Pistons | 206066
SKU: BHXG-206066
Regular price $656.99 USD
Regular price $722.69 USD Sale price $656.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

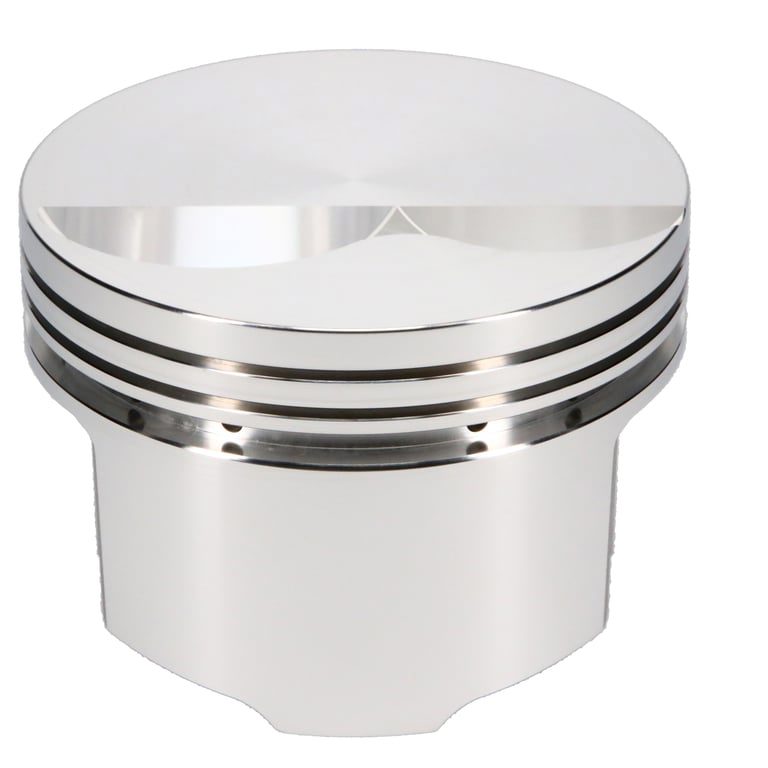

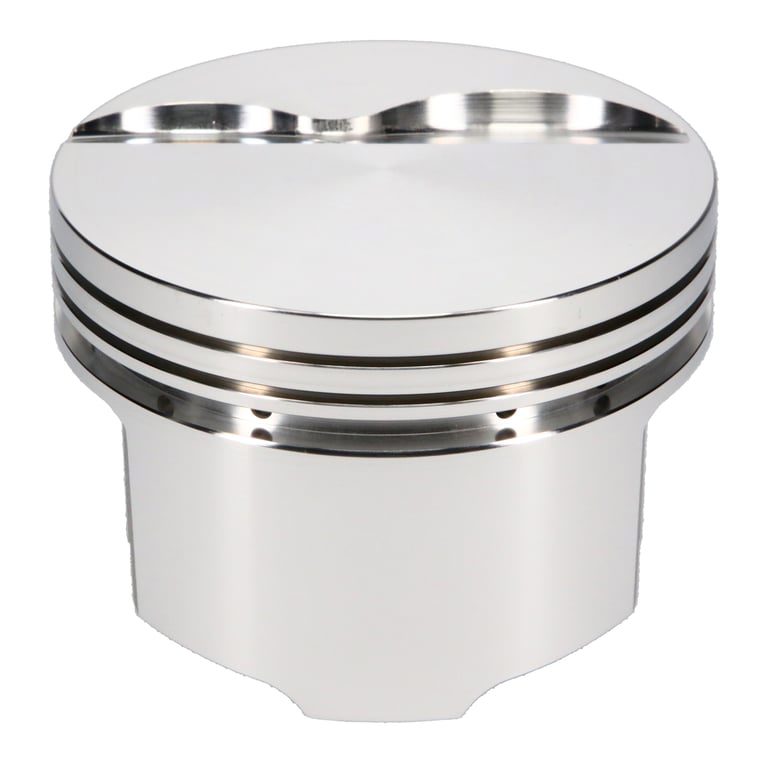

JE Pistons 206066 - Ford Small Block 4.030in Bore 1.165in CH -5.00 CC Piston Kit

Piston Set, 4032, Flat Top, 4.030 Bore, 1.165 CD, 0.927 Pin, Set of 8.

SRP, Ford, Small Block Ford, 4.030 in. Bore, 1.165 CD, Flat Top, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Piston Series: SRP
Cylinder Head: SMALL BLOCK FORD 20 DEG
Bore Diameter: 4.030
Piston Head Type: Flat
Compression Height: 1.165
Piston Volume: -5.00
Piston Material: 4032
Forging Type: FSR
Piston Average Weight: 431
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.218
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Length: 2.750
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: S100S8-4030-5
Engine: Small Block
Make: Ford
Industry: Automotive
Engine Type: ICE
2nd Groove Width: 0.06400
Piston To Wall Clearance: -0.003
Oil Groove Width: 0.21800
Intake Depth: .240
Top Groove Width: 0.06400
Exhaust Angle: 20
Exhaust Depth: S
Intake Angle: 20
Oil Rail Support Required. Part Number:: 4030-183
