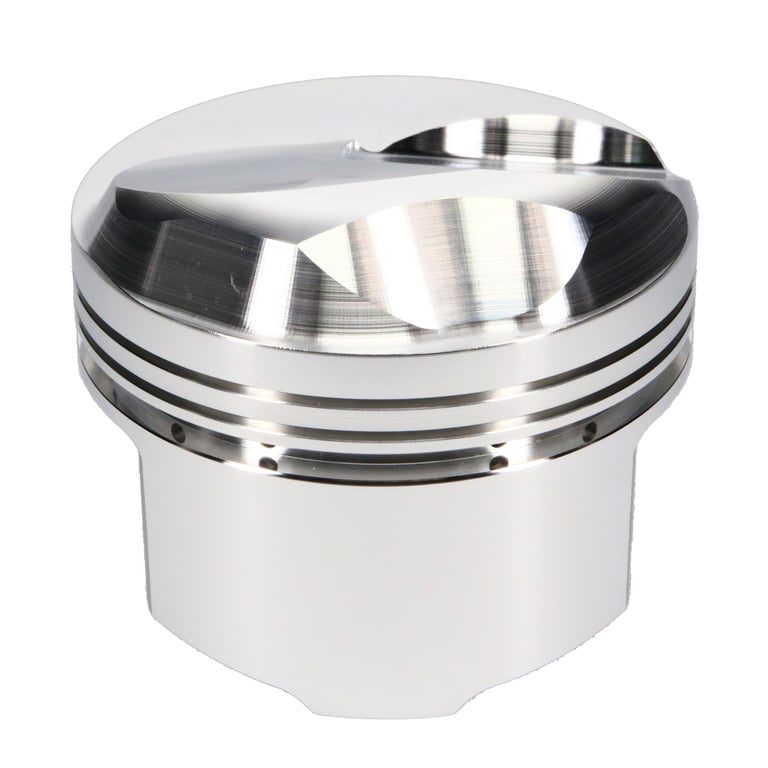

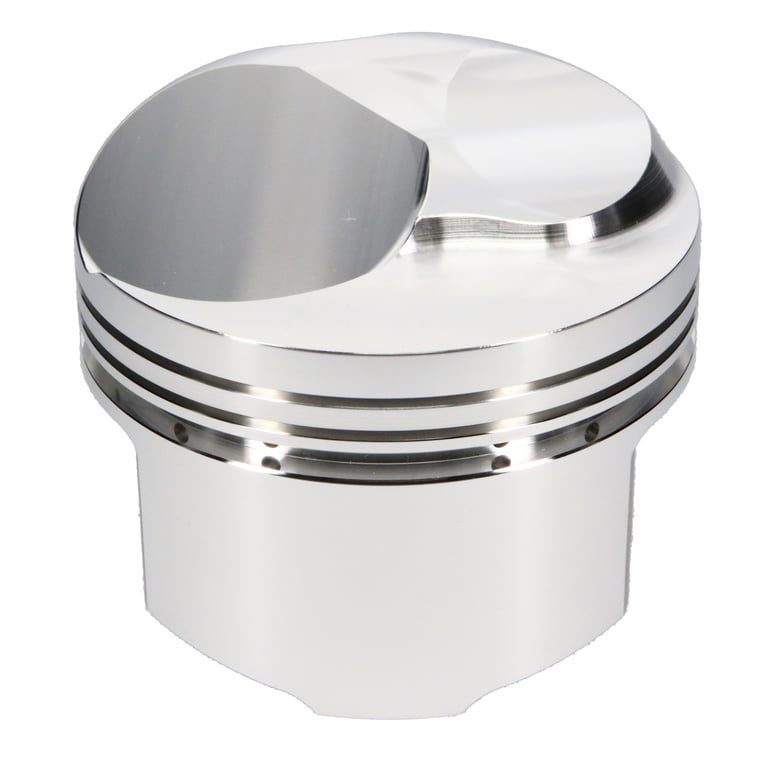

JE Pistons 152156 - 454 BBC 33cc Dome - Set of 8 Pistons

JE Pistons 152156 - 454 BBC 33cc Dome - Set of 8 Pistons

JE Pistons | 152156
SKU: BHXG-152156
Regular price $839.99 USD
Regular price $923.99 USD Sale price $839.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

JE Pistons 152156 - 454 BBC 33cc Dome - Set of 8 Pistons

Piston Set, 2618, Dome, 4.560 Bore, 1.270 CD, 0.990 Pin, Set of 8.

SRP, Chevrolet, Big Block Chevrolet, 4.560 in. Bore, 1.270 CD, Dome, 8 Cyl. Piston Kit

Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.

  • Forged in the USA using 4032 aluminum, yielding tensile strength and minimal thermal expansion
  • Dedicated forging helps optimize strength and weight throughout the piston design
  • Perfect for street/strip applications
  • Forced pin oiling for improved pin lubrication
  • Made 100% in the USA
Piston Series: SRP
Cylinder Head: OPEN CHAMBER
Bore Diameter: 4.560
Piston Head Type: Dome
Compression Height: 1.270
Piston Volume: 33.00
Piston Material: 2618
Forging Type: FSR
Piston Average Weight: 631
Ring Set Included: No
Top Compression Ring Thickness: 0.0640
Second Compression Ring Thickness: 0.0640
Oil Ring Thickness: 0.218
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.990
Wrist Pin Length: 2.930
Wrist Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Product Market: Domestic
Add-On: S100S8-4560-5
Engine: Big Block
Make: Chevrolet
Industry: Automotive
Engine Type: ICE
Top Groove Width: 0.06400
Piston To Wall Clearance: -0.004499
Oil Groove Width: 0.21800
2nd Groove Width: 0.06400
Intake Angle: 25
Stroke: 4.250
Exhaust Angle: 16
Exhaust Depth: ^.080
Intake Depth: .310
Oil Rail Support Required. Part Number:: 4562-203
