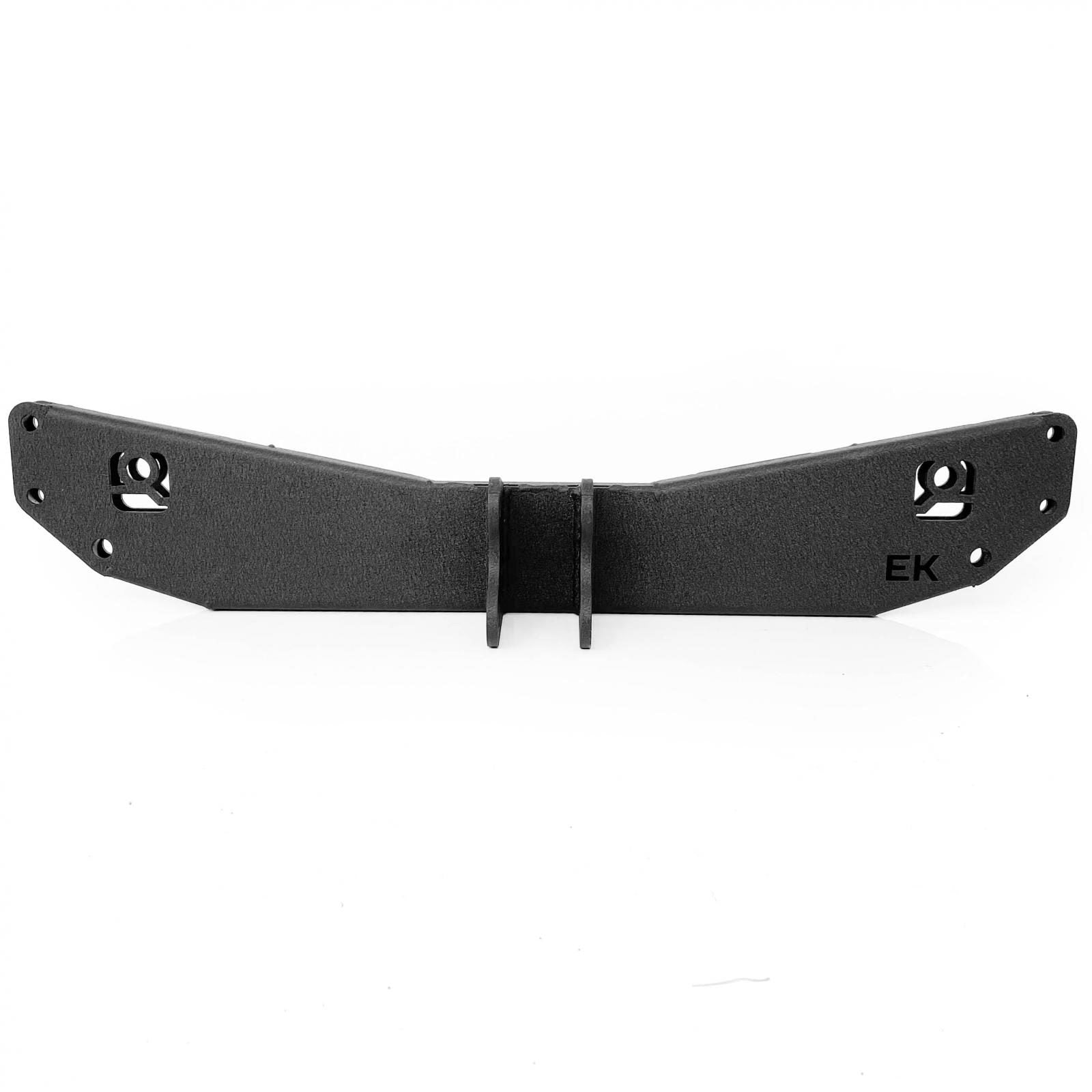

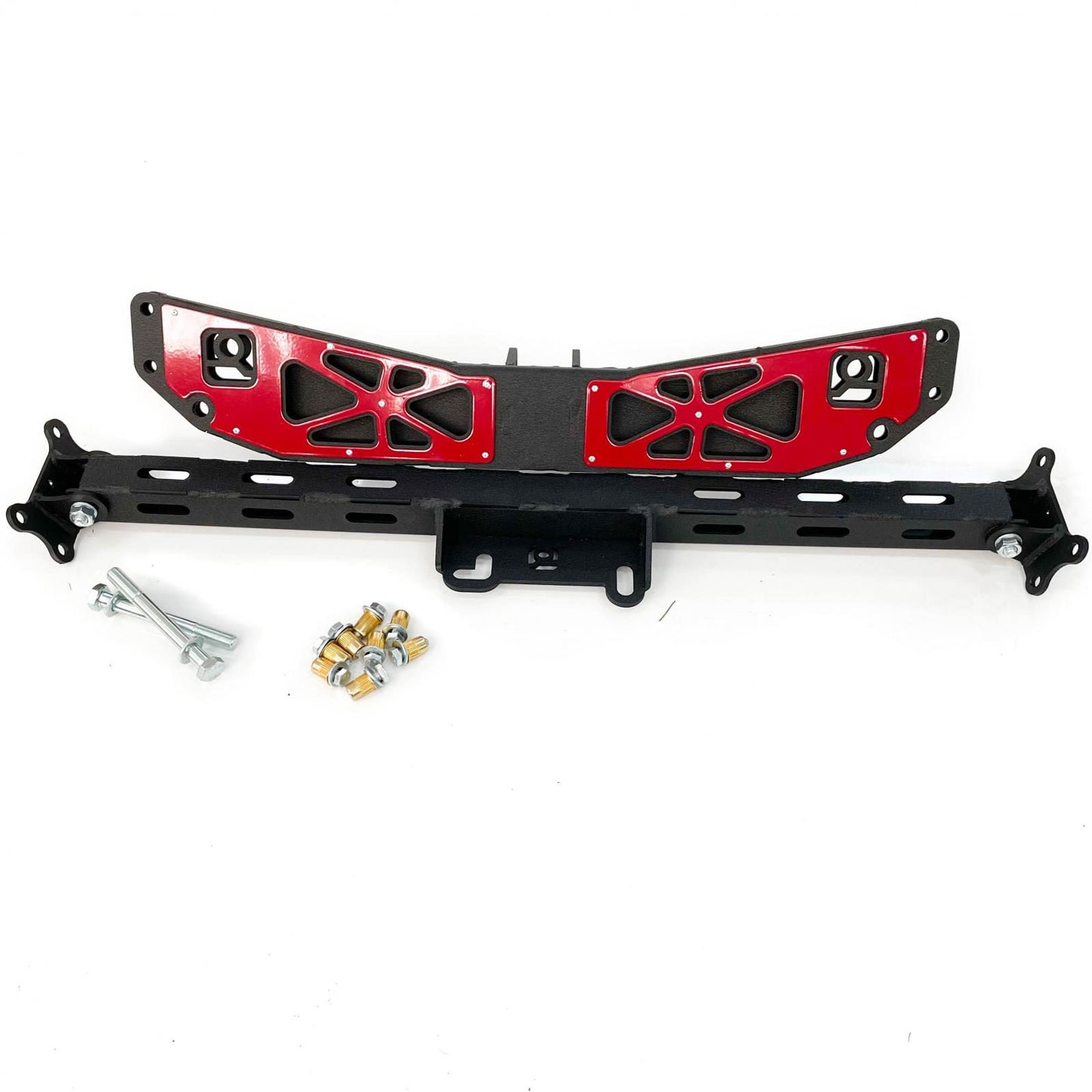

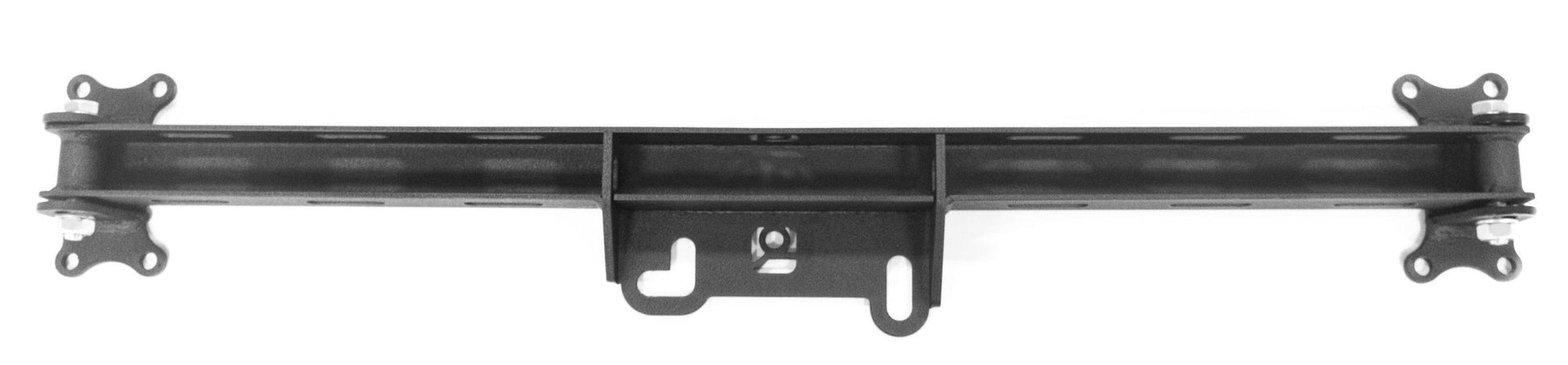

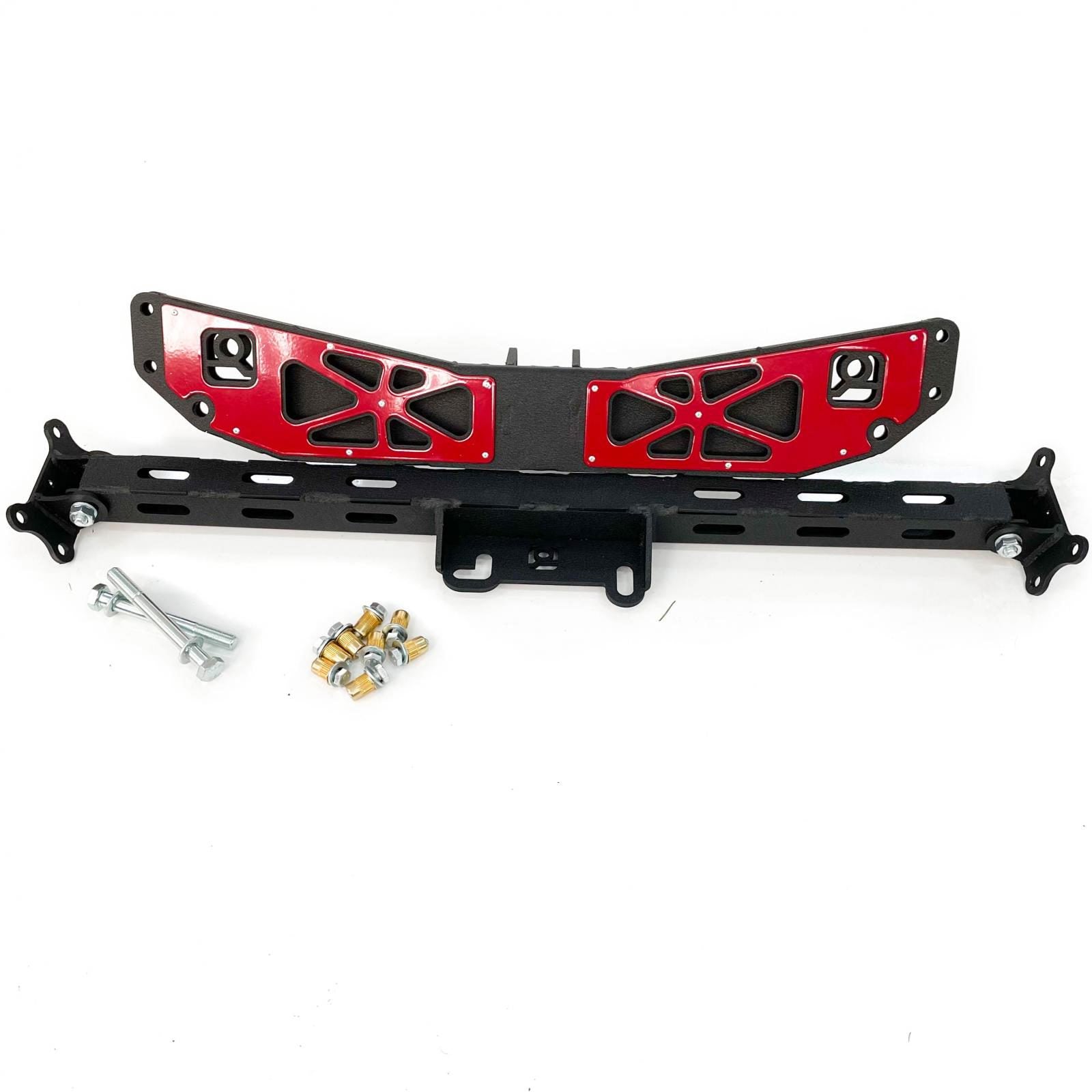

Innovative Mounts 103460 - AWD Rear Diff Mount Kit - EK Black/Red

Innovative Mounts 103460 - AWD Rear Diff Mount Kit - EK Black/Red

AWD Rear Differential Conversion Mount Kit For the 1996-2000 Honda Civic EK). Designed to use the 88-91 Wagon or 96-06 Element/CRV Rear differential.

Features:

• AWD Rear Diff Mount Kit EK Black/Red
• No Welding Required
• Easy removal of top Mount
• Sway bar provisions
• CAD/CAM Designed
• Stress Analyzed
• Lifetime Warranty

Notes:

• Notching of Rear sub-frame required. For installation, connect differential to Rear Mount and Bolt to subframe. Use a jack to level the Front of differential With the drivetrain and Bolt in the top Mount using Rivnuts. Rivnuts require a 13.5mm or 17/32 drill bit.
• For high-performance applications, it is recommended to also weld the Brackets to the frame for extra strength
• It is strongly recommended that all installs be done by a mechanic or automotive specialist.
• Mounts Can Not be returned or Swapped out after they have been Bolted down revealing Bolt impressions).
• Please Make sure this Kit fits your vehicle before Bolting them in place.
