Innovate - 39150
Data Logger Thermocouple Amplifier Interface - TC-4 - 4 Channel - Innovate LM-1/2 or MTS Components - Kit

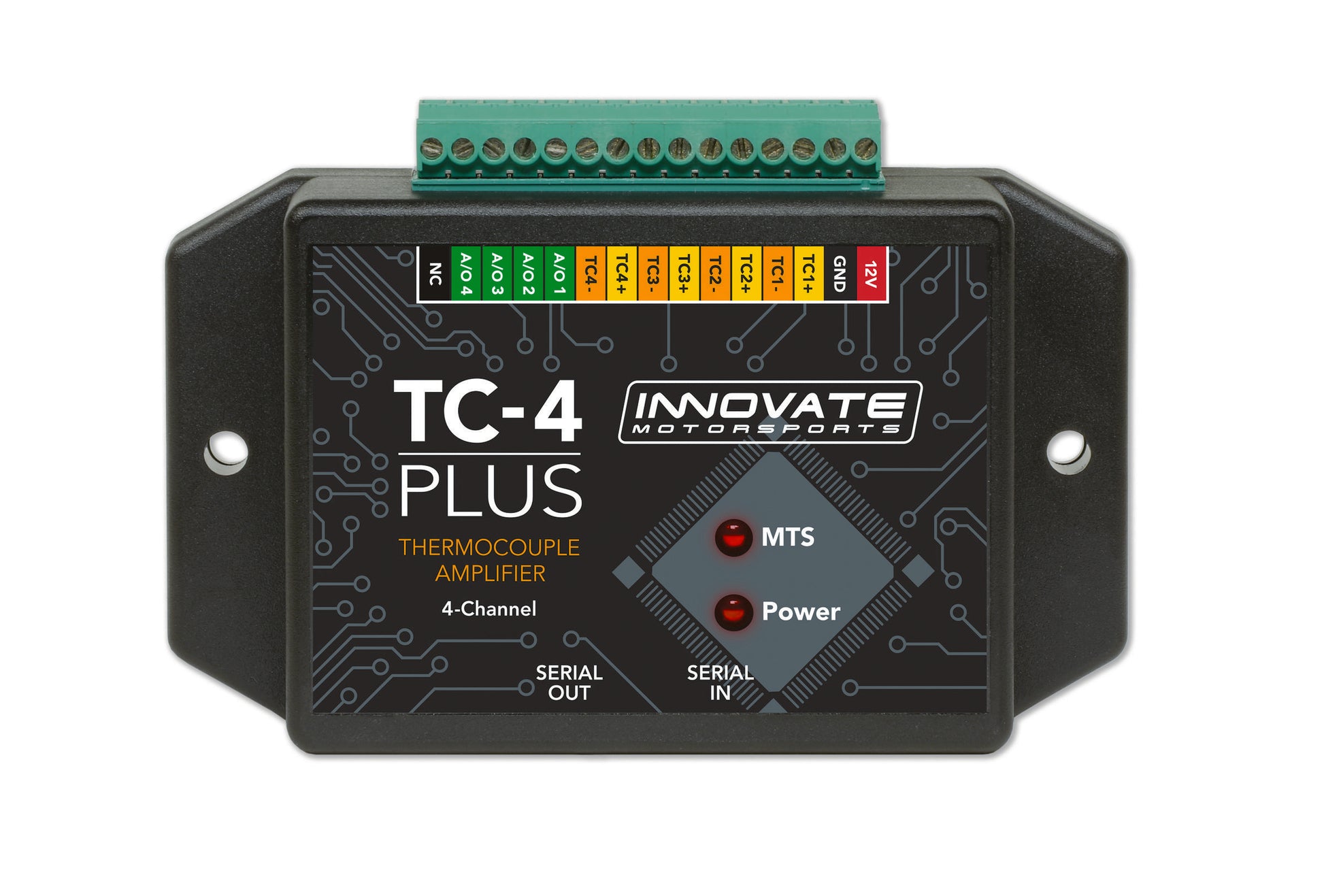

TC-4 PLUS: Thermocouple Amplifier for MTS; 4-Channel w/Analog Outputs 3915
The Tc-4 Plus Is 4 Channel Type-K Thermocouple Amplifier Device That Can Be Used A Stand-Alone System Or As Part Of A Mts (Modular Tuning System). The Tc-4 Plus Includes A Digital Input/Output, 4 Full-Programmable Analog Outputs, And Is Ideal For Applications Such As Dynamometers, Data Acquisition Systems, Or Standalone Ecus. The Tc-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Tc-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Ssi-4 Plus.
- 4-Configurable Linear 0-5V Analog Outputs- One Per Input
- Adds 4 Temperature Inputs To An MTS Log Chain
- Can Be Used To Measure Other Temperature Metrics
- Incl. Serial Program Cable- Molex to Molex Patch Cable- Manual
- K-Type Thermocouple Amplifier
- Temperature Range- 32-1999 Deg. F.- 0-1093 Deg. C.
Add-On: 3877
Included Wire Harness: 3840, 3846
Related Item: 77020
Upsell: 3895
