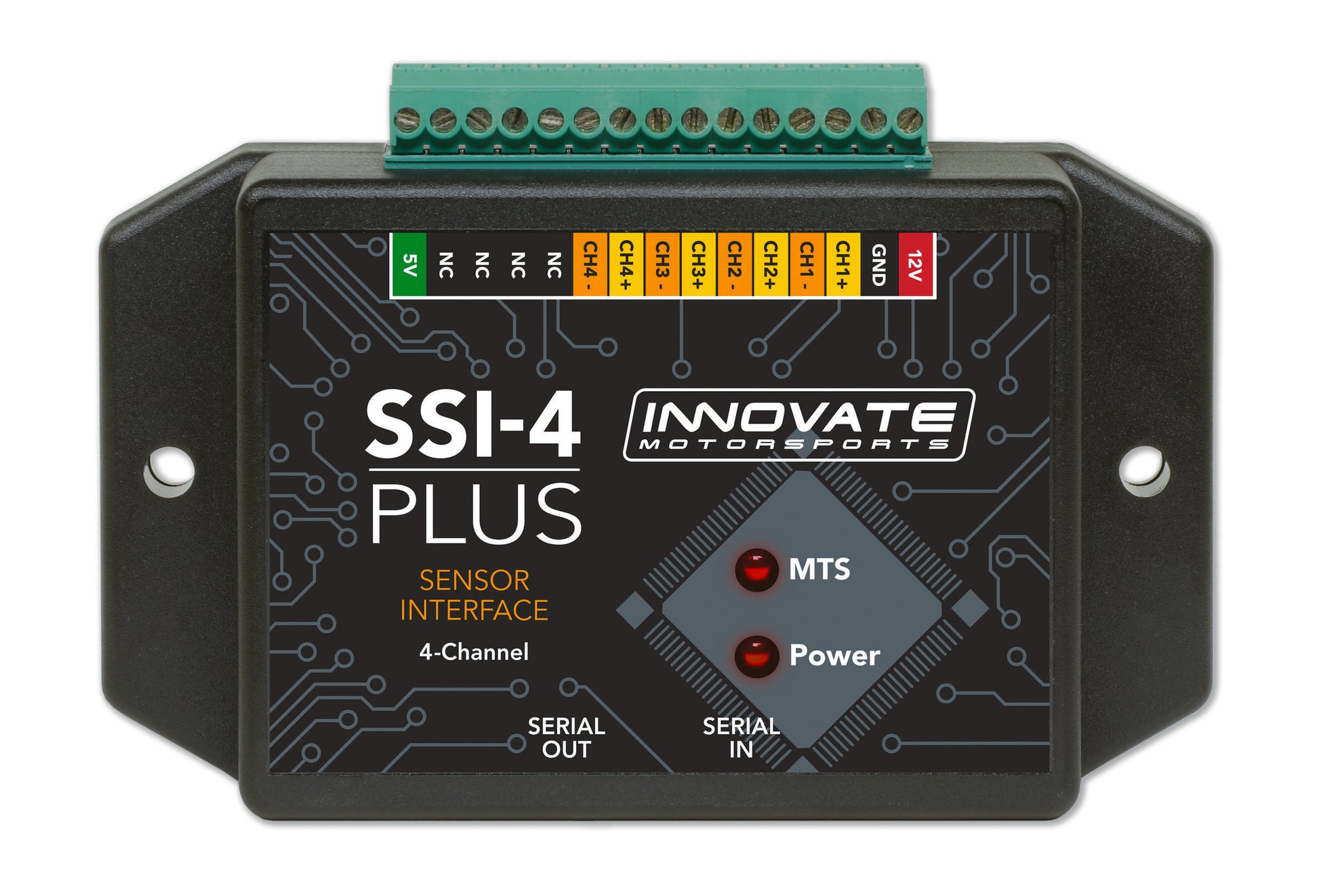

Innovate 39140 - SSI-4 PLUS: 4 Channel Sensor Interface

Innovate 39140 - SSI-4 PLUS: 4 Channel Sensor Interface

Data Logger Sensor Interface - SSI-4 - 4 Channel - Innovate LM-1/2 or MTS Components - Kit

SSI-4 PLUS: Simple Sensor Interface; 4-Channel

The SSI-4 PLUS will allow the capture of data from 4 external sensors. These sensors can be frequencies such as engine RPM and speed sensors or 0-5V references like MAP sensors and pressure transducers. The SSI-4 PLUS may be used as a stand-alone system or integrated with other Innovate Motorsports MTS products to create a log chain. The SSI-4 is also a key component of Innovate Motorsports' Modular Tuning System (MTS). Using the SSI-4 PLUS's serial ports you can daisy-chain other Innovate devices such as the MTX-L, LM-2, LC-2, and TC-4 PLUS.

• 5 Volt Output To Power External Sensors
• Channel 1/2 Inputs- Configured For RPM- Speed- Frequency- 0-5V
• Channel 3/4 Inputs Can Be Used For 0-5 Volt
• Incl. Serial Program Cable- Molex to Molex Patch Cable- Manual
• Simple Sensor Device That Adds 4-Inputs To And MTS Log Chain
