Innovate - 3914

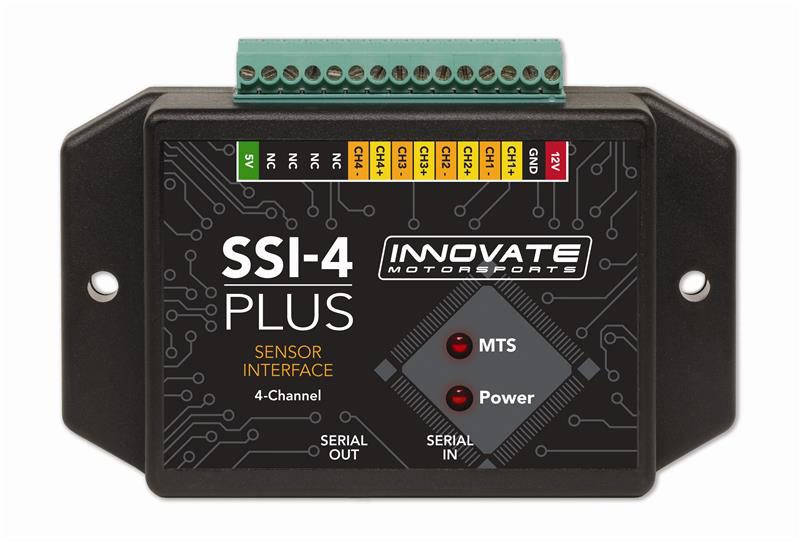

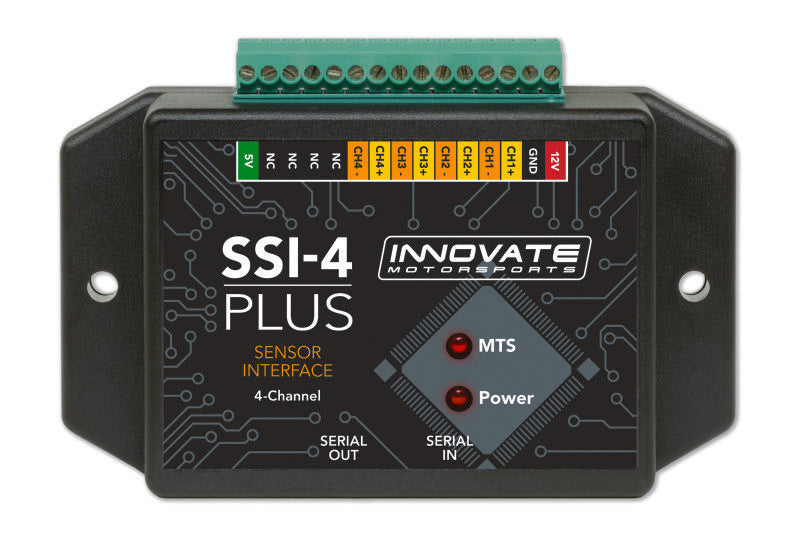

SSI-4 PLUS: Sensor Interface for MTS; 4-Channel
The Ssi-4 Plus Will Allow The Capture Of Data From 4 External Sensors. These Sensors Can Be Frequencies Such As Engine Rpm And Speed Sensors Or 0-5V References Like Map Sensors And Pressure Transducers. The Ssi-4 Plus May Be Used As A Stand-Alone System Or Integrated With Other Innovate Motorsports Mts Products To Create A Log Chain. The Ssi-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Ssi-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Tc-4 Plus.
- Simple Sensor Device That Adds 4-Inputs To And MTS Log Chain
- Channel 1/2 Inputs; Configured For RPM; Speed; Frequency; 0-5V
- Channel 3/4 Inputs Can Be Used For 0-5 Volt
- 5 Volt Output To Power External Sensors
- Incl. Serial Program Cable; Molex to Molex Patch Cable; Manual
Add-On: 3877
Included Wire Harness: 3840, 3846
Related Item: 77020
