Injen - SES9300ICPWB
Injen SES Wrinkle Black Intercooler Pipes

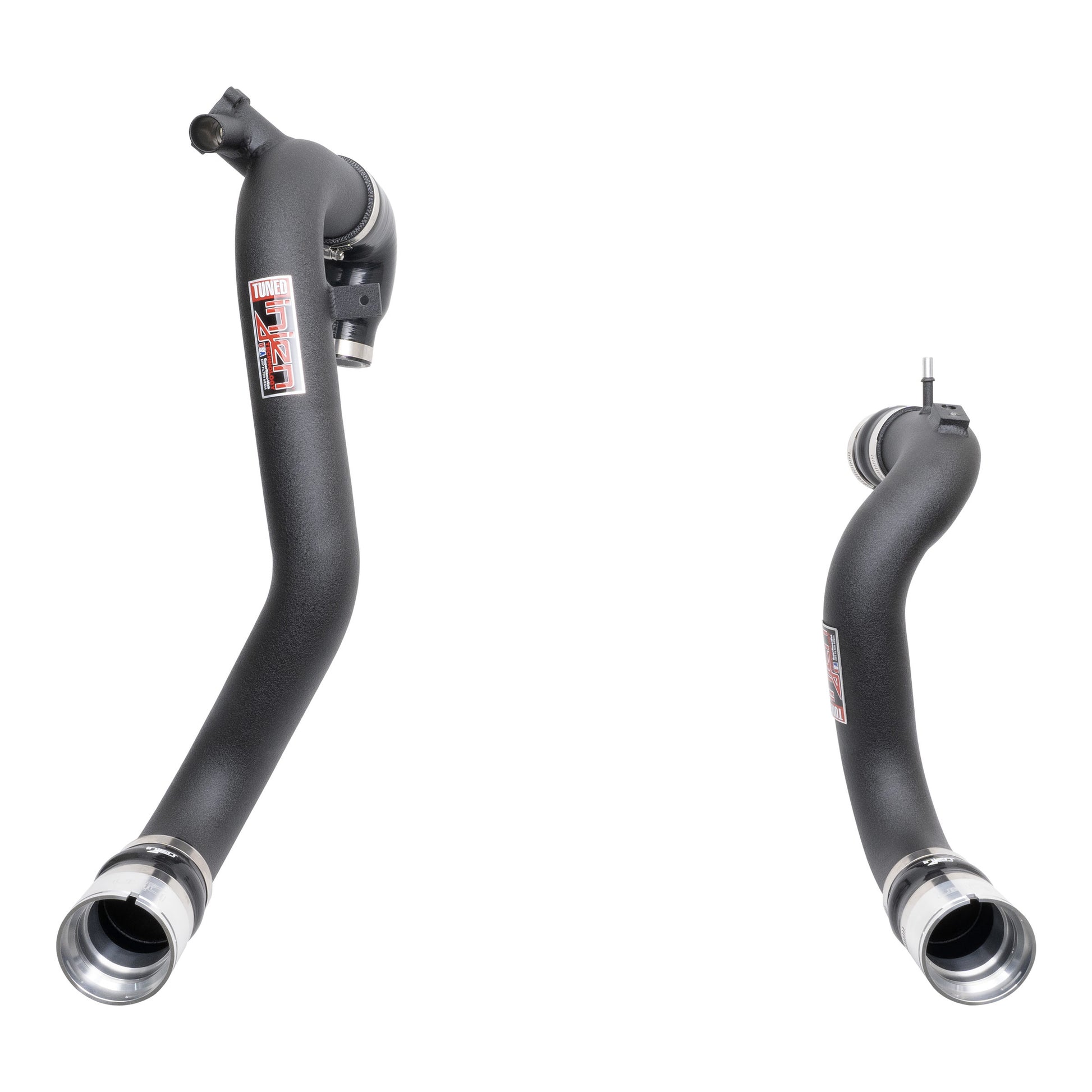

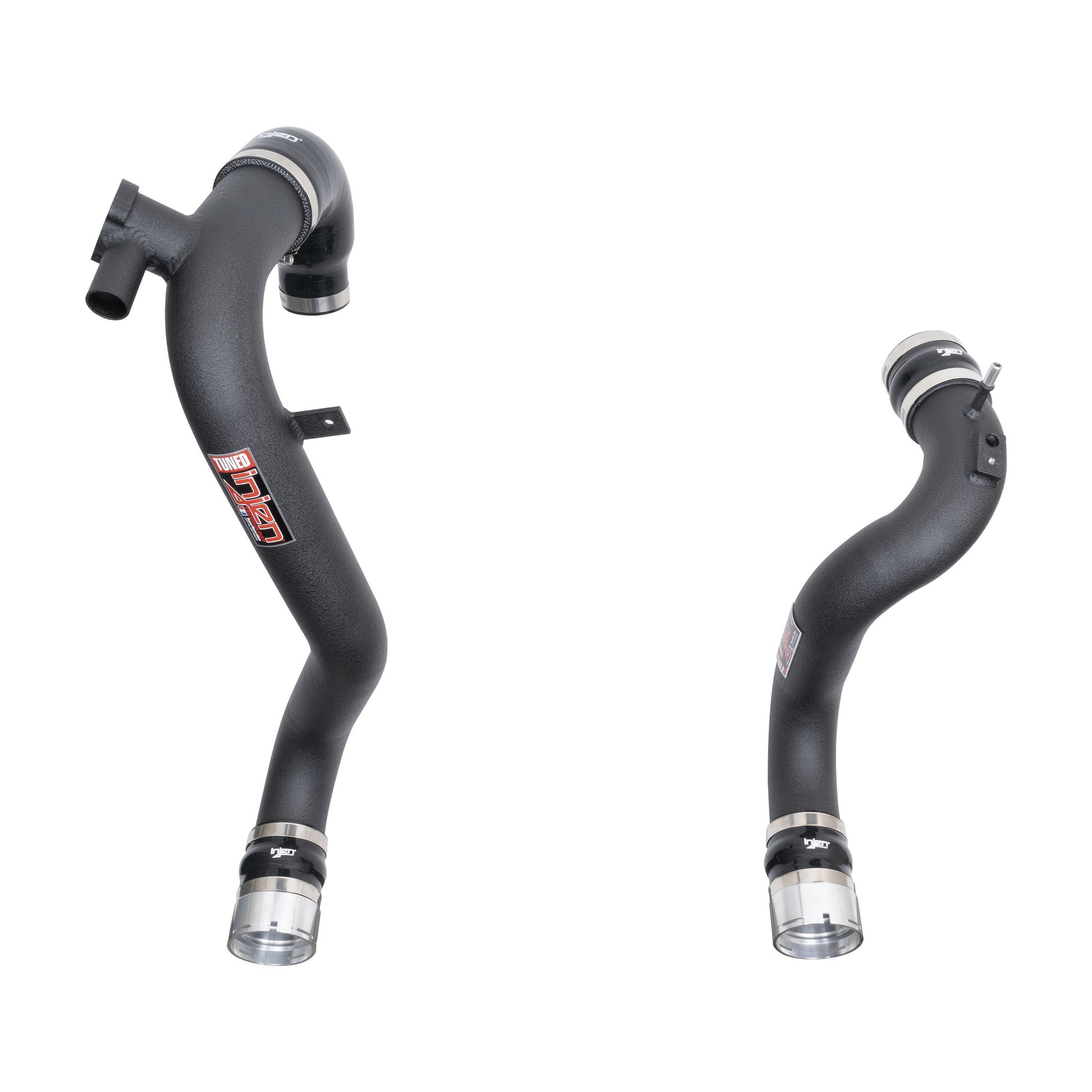

SES Intercooler Pipe - Part No. SES9300ICPWB, 2021-2024 Ford Bronco L4-2.3L (t) EcoBoost
The Injen Technology engineers spent abundant amounts of time designing, testing, and perfecting this performance intercooler charge pipe system to develop some serious bolt-on power. The soul of this charge pipe system is with our mandrel-bent, over-sized 2.75" 6061-T6 aluminum tube that provides a smooth uninterrupted path for highly efficient airflow and a look that will impress every time you open your hood! The engineering team also developed precision CNC machined adapter flanges that mimic the OE-Style connections for a simple install.
- Manufactured from 2.75? Lightweight 6061-T6 Aluminum Piping
- Aluminum piping is mandrel-bent for smooth, unrestricted flow
- Oversized piping reduces restriction providing increased airflow to the engine
- 6061-T6 aluminum piping replaces the brittle, failure-prone factory unit.
- CNC machined quick connect flanges for an OE-Style attachment
- Available in three amazing finishes
- SES9300ICP (Polished)
- SES9300ICPWB (Wrinkle Black)
- SES9300ICPWR (Wrinkle Red)
- Seamlessly adapts with the OE Intercooler

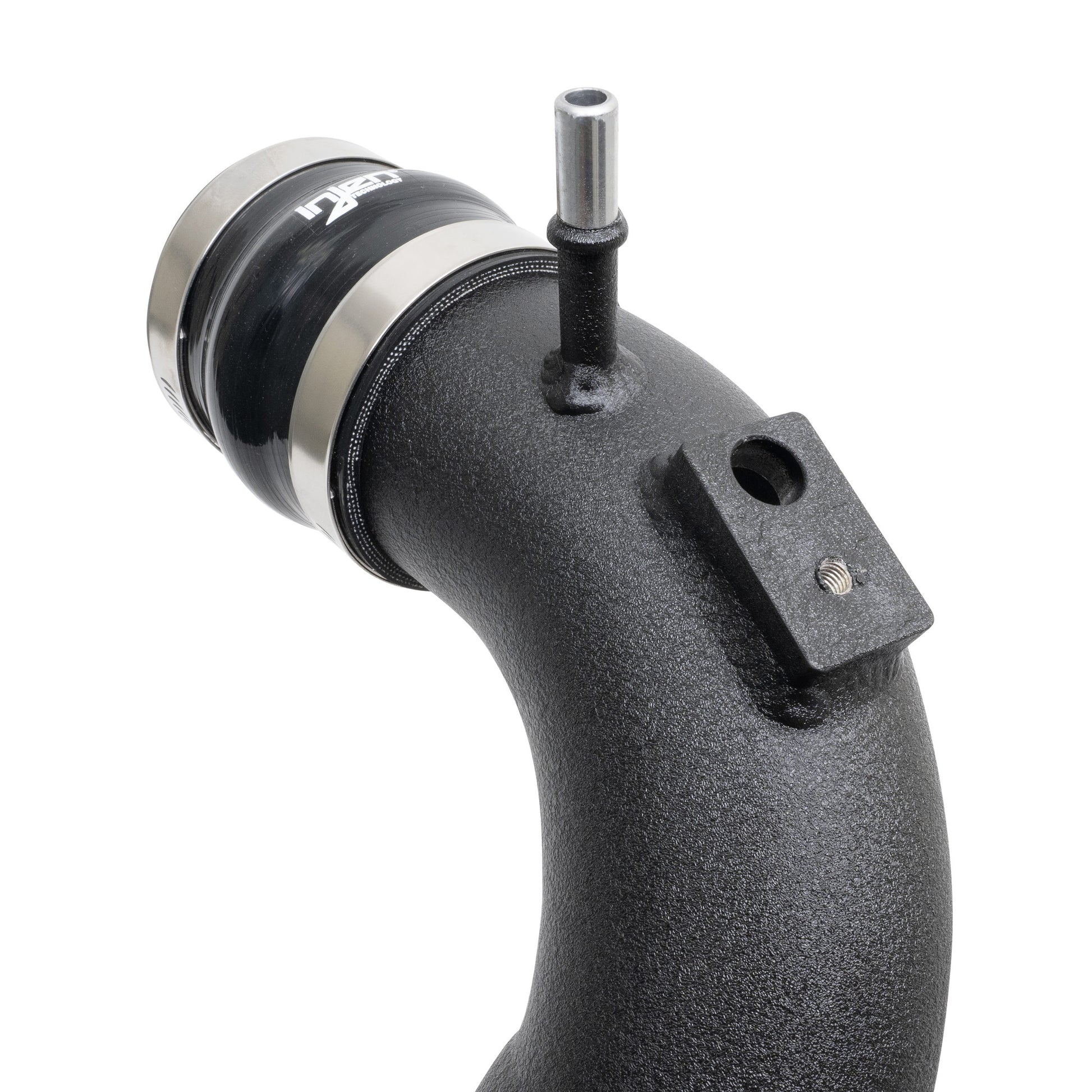

- Precision CNC machined, and TIG-Welded sensor flanges included
- Stainless Steel Band Clamp with Inner Protective Liner
- Automotive Grade Silicone Couplers
- Increase Throttle Response and Decreases Turbo Lag
- Beaded Tube Ends to Help Prevent Couplers from Coming Off
- Uses all factory mounting locations

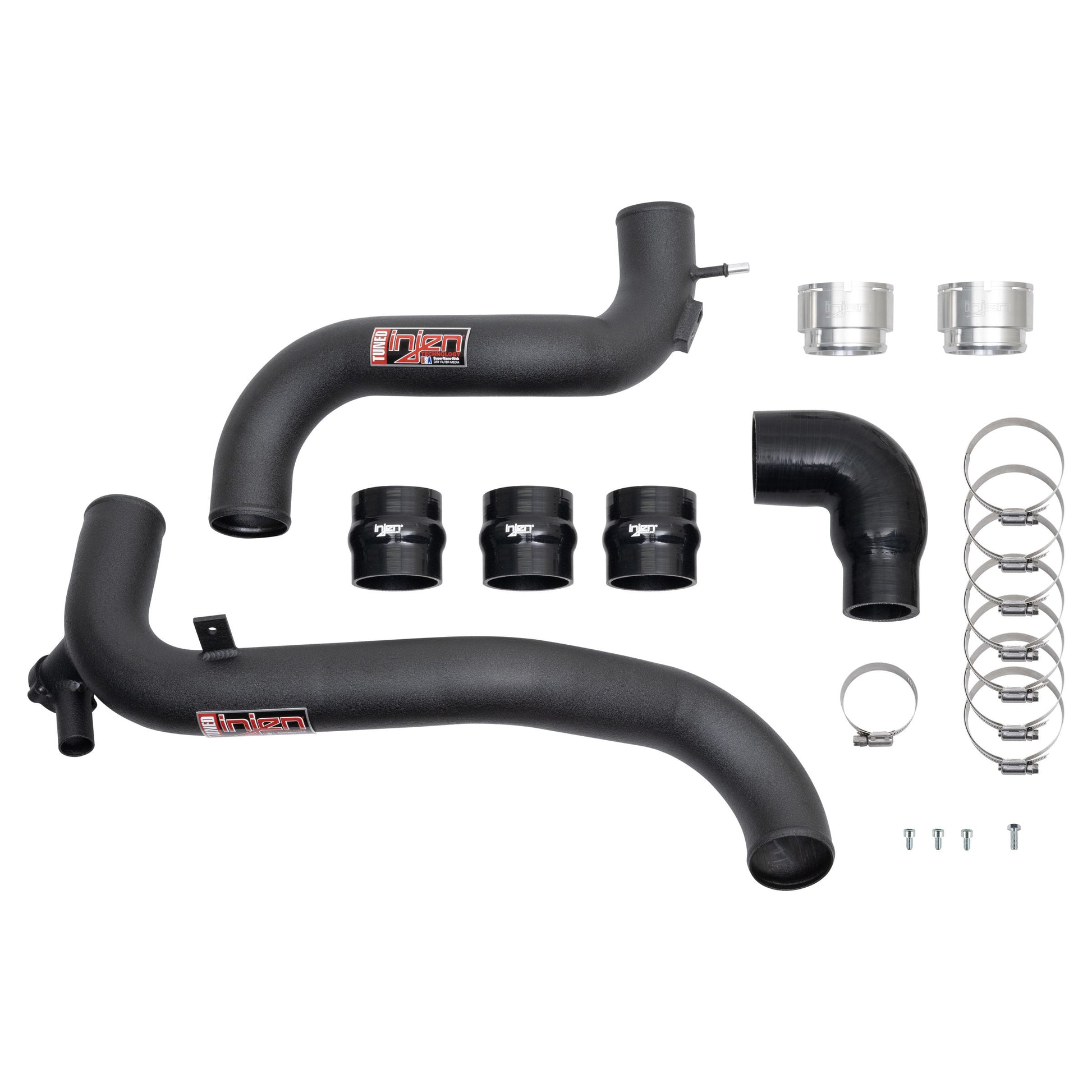

- Includes all necessary hardware for a hassle-free installation
- Made in Pomona California, USA
- Injen Technology Limited Lifetime Warranty
Attachment Method: Coupler/OEM Retaining Clip
CNC Flanges Included: Yes
CNC Sensor Adapters Inlcuded: Yes
Compatible Intercooler: FM9300i
Compatible Throttle Controller: PT0013B
Finish: Wrinkle Black
Grade Type: Performance
Hardware Included: Yes
Hot and Cold Side Included: Yes
Intercooler Included: No
NPT Fitting Quantity: N/A
NPT Fitting Size: N/A
Pipe Material: 6061-T6 Aluminum
Pipe Size: 2.75
Stepped Design: No
