Icon K67204R - 08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM
Icon K67204R - 08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM
SKU: ICON-K67204R
Out of stock
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Icon K67204R - 08-10 FORD F250/F350 7" STAGE 5 SUSPENSION SYSTEM W RADIUS ARM

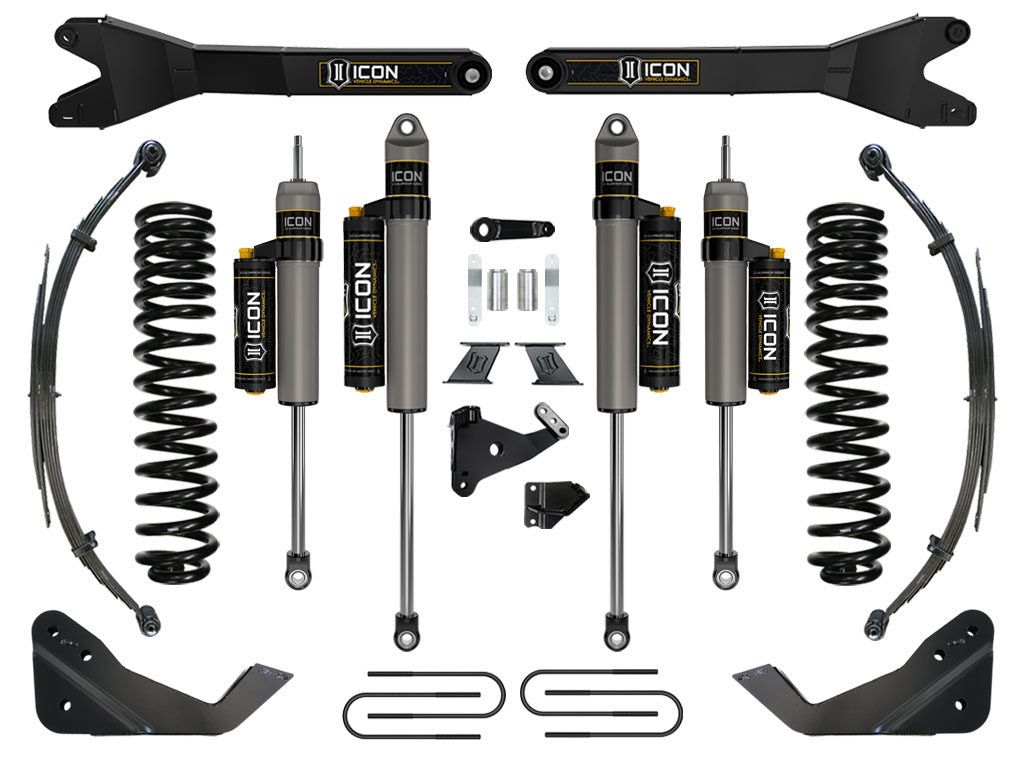

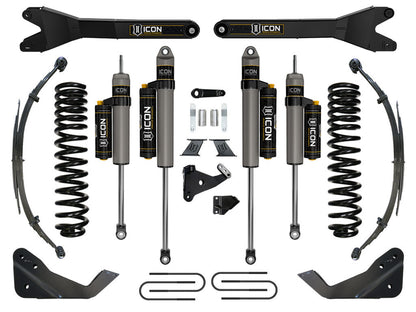

2008-2010 FORD F250/F350 SUPER DUTY 7" LIFT STAGE 5 SUSPENSION SYSTEM WITH RADIUS ARM

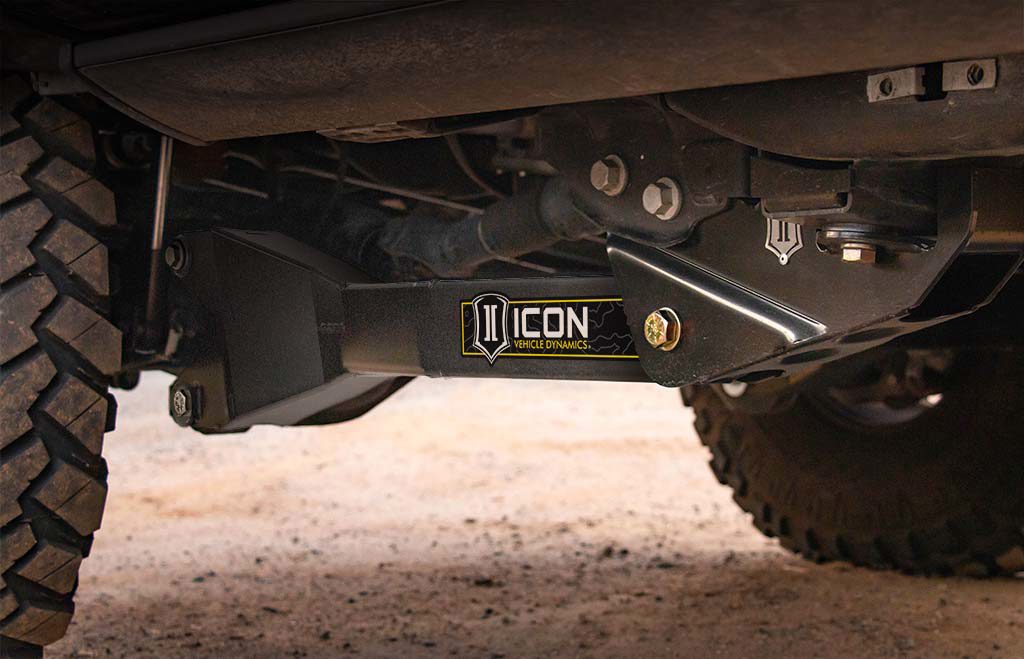

This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- ICON engineered dual rate coil springs with match tuned 2.5 Series reservoir shocks w/ CDCV
- Shock absorbers feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
- Correctly positioned steering and track bar components
- Rear progressive design leaf pack for smooth compliant ride
- No drive shaft modifications needed
