Icon - K53271

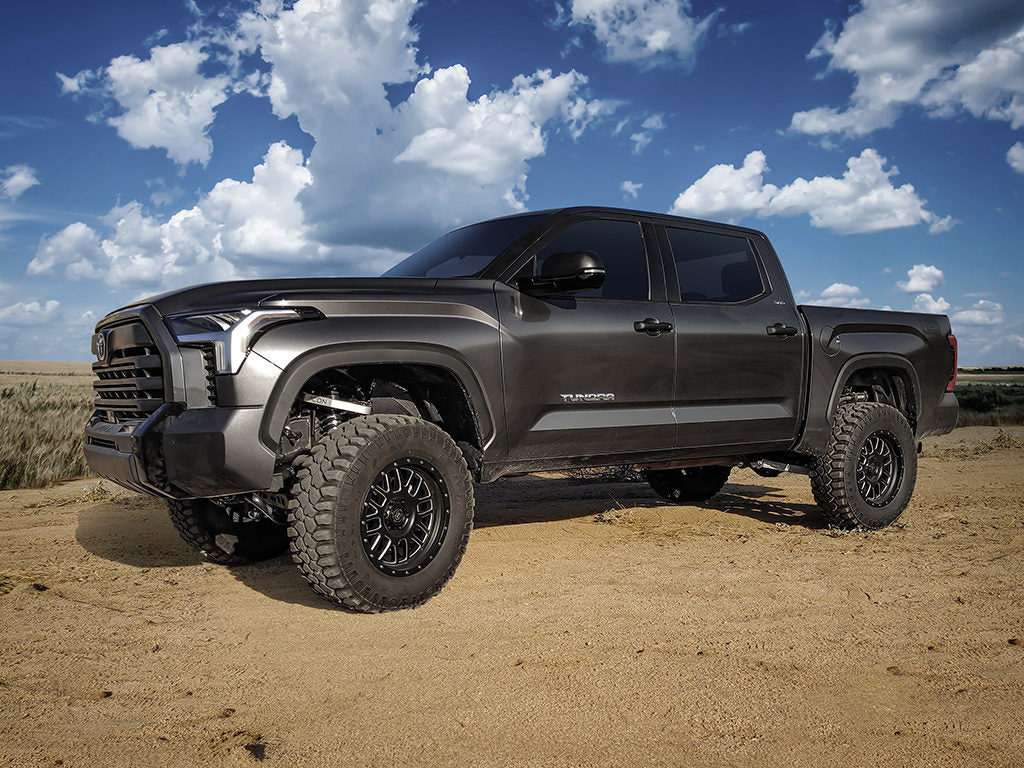

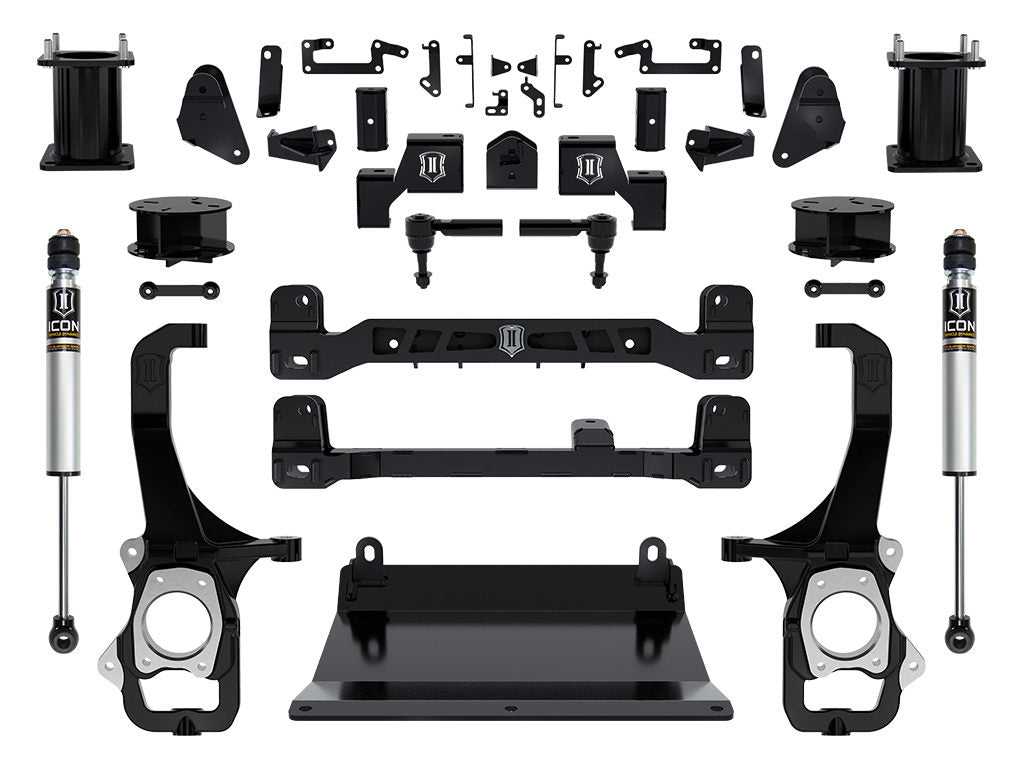

22-23 TOYOTA TUNDRA 6" STAGE 1 SUSPENSION SYSTEM
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Front coilover spacer kit with heavy duty steel construction
- Provides 6" front suspension lift with only 4" of crossmember drop
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks to improve rear suspension performance
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 58461DJ - 22-25 TUNDRA/23-24 SEQUOIA TUBULAR UCA DJ PRO KIT
Add-On Part: 58561DJ - 22-25 TUNDRA/23-24 SEQUOIA BILLET UCA DJ PRO KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Bushings Included: No
Grade Type: Performance
Maximum Lift: 6
Maximum Lift Front: 6
Maximum Lift Rear: 3
Mounting Hardware Included: Yes
OEM Wheels & Tires Fitment: No
Rear Reservoir Style: Internal
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Shocks Included: Yes
Strut(s) Included: No
