Icon K53069T - 10-24 Toyota 4Runner 0-3.5in Stage 9 Suspension System w/ Tubular UCA

Icon K53069T - 10-24 Toyota 4Runner 0-3.5in Stage 9 Suspension System w/ Tubular UCA

10-23 4RUNNER 0-3.5" STAGE 9 SUSPENSION SYSTEM W TUBULAR UCA

ICON suspension systems lift your 4Runner or FJ Cruiser while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

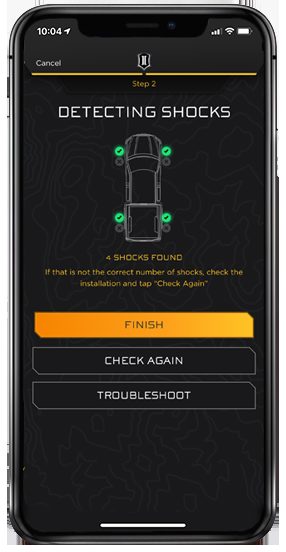

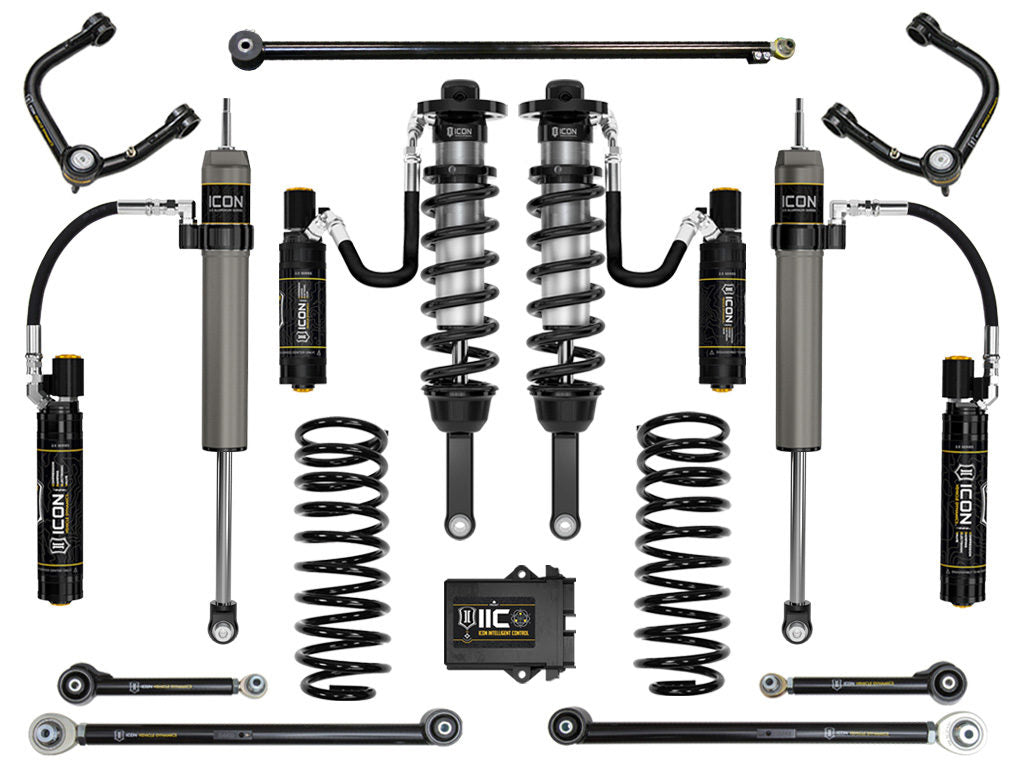

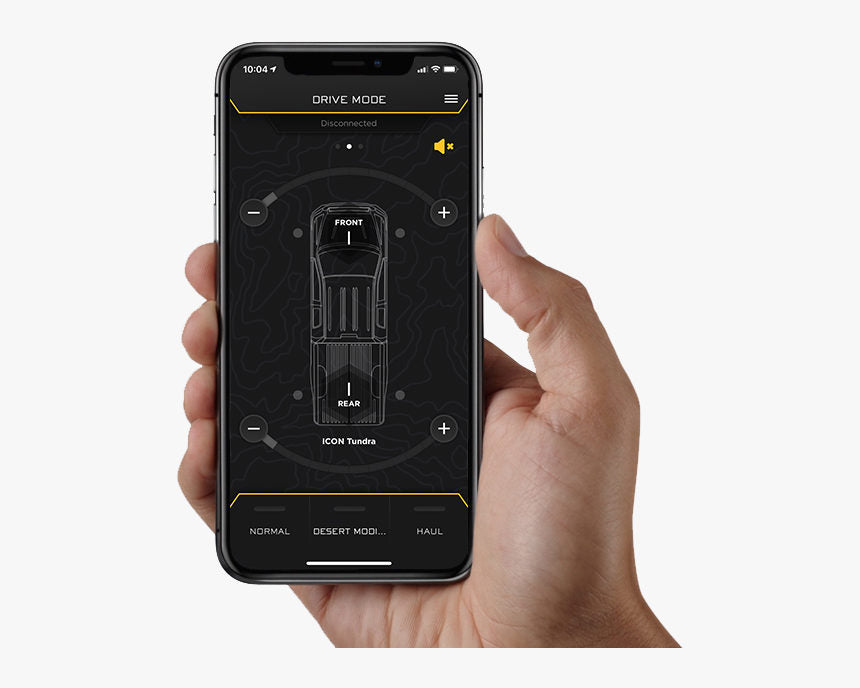

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 9 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDEV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular Delta Joint upper control arms not only add strength and durability, but help retain factory alignment specs, increasing caster over stock and allow proper wheel alignment at the lift height this system provides. ICON's tubular steel upper and lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDEV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with active, adjustable compression damping.

• Increased wheel travel and ride quality over stock
• Vehicle specific tuned front and rear shocks for superior shock damping and control

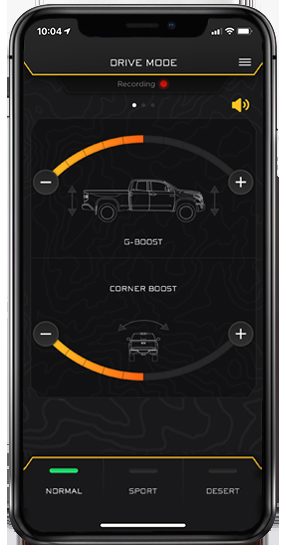

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

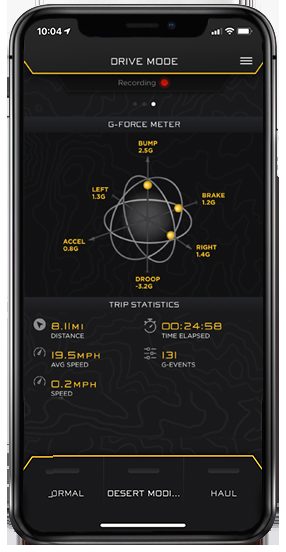

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers provide 0-3.5" of front lift height
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• Tubular upper and lower rear links offer increased strength, improved geometry, and pinion angle adjustment
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Adjustable rear track bar proper rear axle placement under vehicle
• Bolt-on system means no cutting or welding necessary for install
