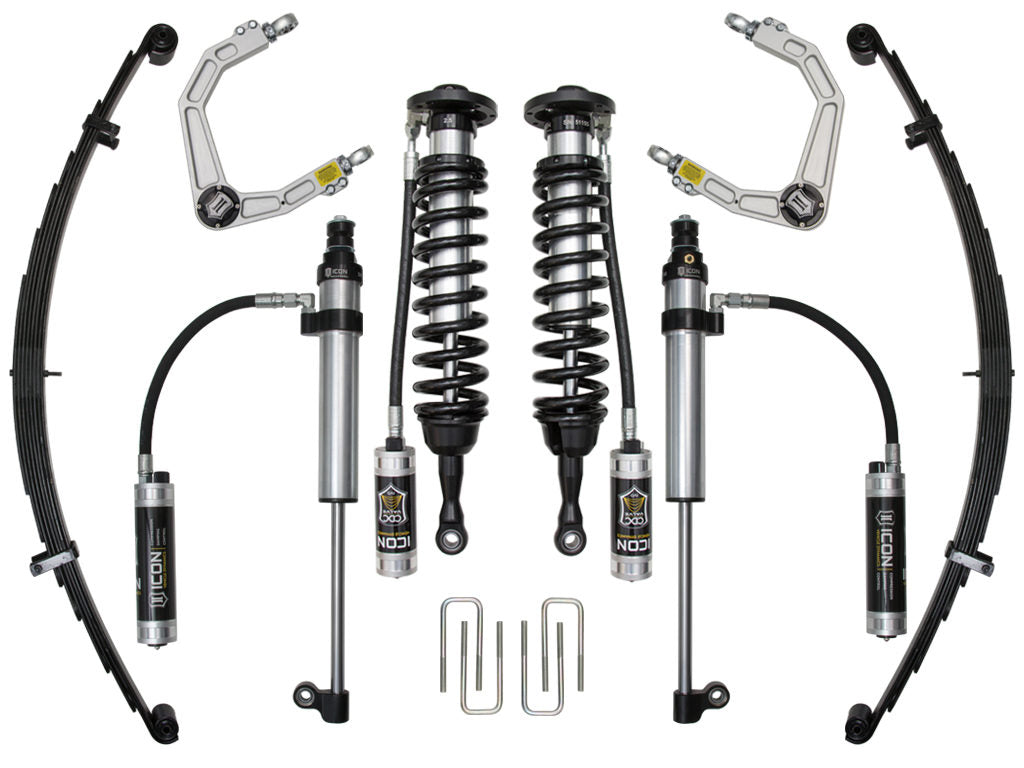

07-21 TUNDRA 1-3" STAGE 9 SUSPENSION SYSTEM W BILLET UCA

2007-2021 TUNDRA 1-3" LIFT STAGE 9 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS

The Stage 9 system includes vehicle-specific tuned 2.5 Series coilover shocks equipped with ICON's CDC (Compression Damping Control) Valve. The easy-to-adjust CDC Valve allows for end-user compression changes to provide optimal ride quality across all types of terrain and vehicle cargo configurations. In addition, the coilovers feature a remote reservoir for exceptional cooling properties, ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel, and are height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations. Used in conjunction with the included ICON upper control arm, these coilovers increase droop travel to the front suspension. To further increase the ride quality of the truck and gain additional droop travel, the ICON RXT multi-rate leaf springs are added to the rear. Designed with an additional leaf (included with kit) that can be exchanged or added to the pack to yield additional spring rate, this leaf spring is perfect for drivers seeking improved rear ride quality in an “unloaded” vehicle as well as those that are have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. To compliment this increase in rear wheel travel, the Stage 9 system includes a unique 2.5 Aluminum Series CDC remote reservoir shock that features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location. This shock also features ICON's CDC technology for simple compression adjustability, and a large ten-inch remote reservoir was added to aid in heat dissipation and resist shock fade during spirited driving.

• Increased wheel travel and ride quality over stock
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for 10 settings of quick and easy compression damping adjustment
• Adjustable coilovers provide 1-3" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir RXT rear shocks with impact extruded aluminum cylinders and 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• 3 user-adjustable rear leaf spring rates for unique vehicle configurations
• Military wrap front leaf spring eyelets for increased durability
• Galvanized leaf separators reduce friction and aid in corrosion resistance
• Leaf spring tip inserts reduce noise and increase ride comfort
• Increased wheel travel when used with RXT shock without sacrificing up-travel
• Unique side-mounted lower eyelet allows for increased rear shock travel while utilizing factory mounting location
• 10” aluminum reservoirs in RXT shocks provide generous oil and nitrogen volume for consistent damping as shock temperature increases
