21-23 BRONCO SASQ 2-3" LIFT STAGE 7 SUSPENSION SYSTEM CDXS BILLET HEAVY RATE

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

The ICON Vehicle Dynamics Stage 7 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDCV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 2-3” of front lift and 1.25-2.25” of rear lift over stock 4-door Broncos with the Sasquatch Package. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. Stage 7 also features ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. To accommodate the increased travel and lift height afforded by the ICON Coilovers, this Stage 7 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement.

• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14” rear wheel travel with 35” tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Coilovers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable coilovers yield up to 2-3" of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
• High strength alloy CNC machined lower bar pins
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

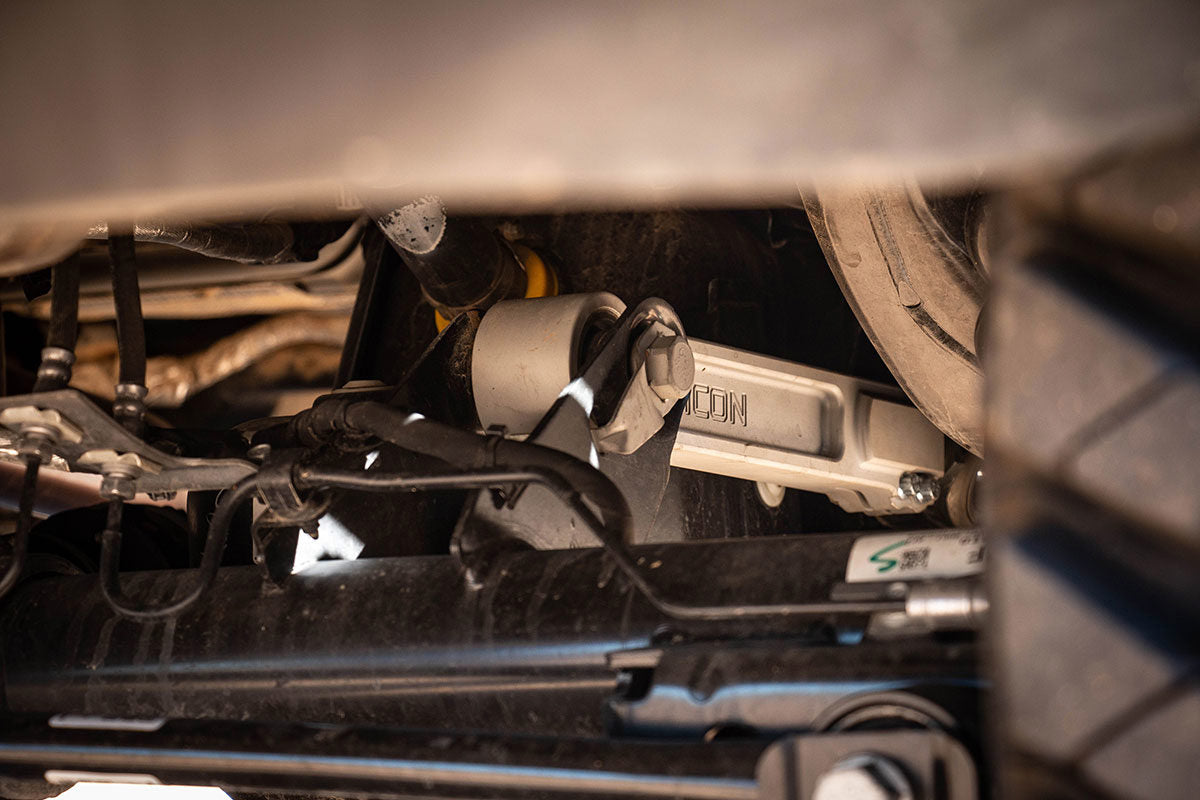

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind

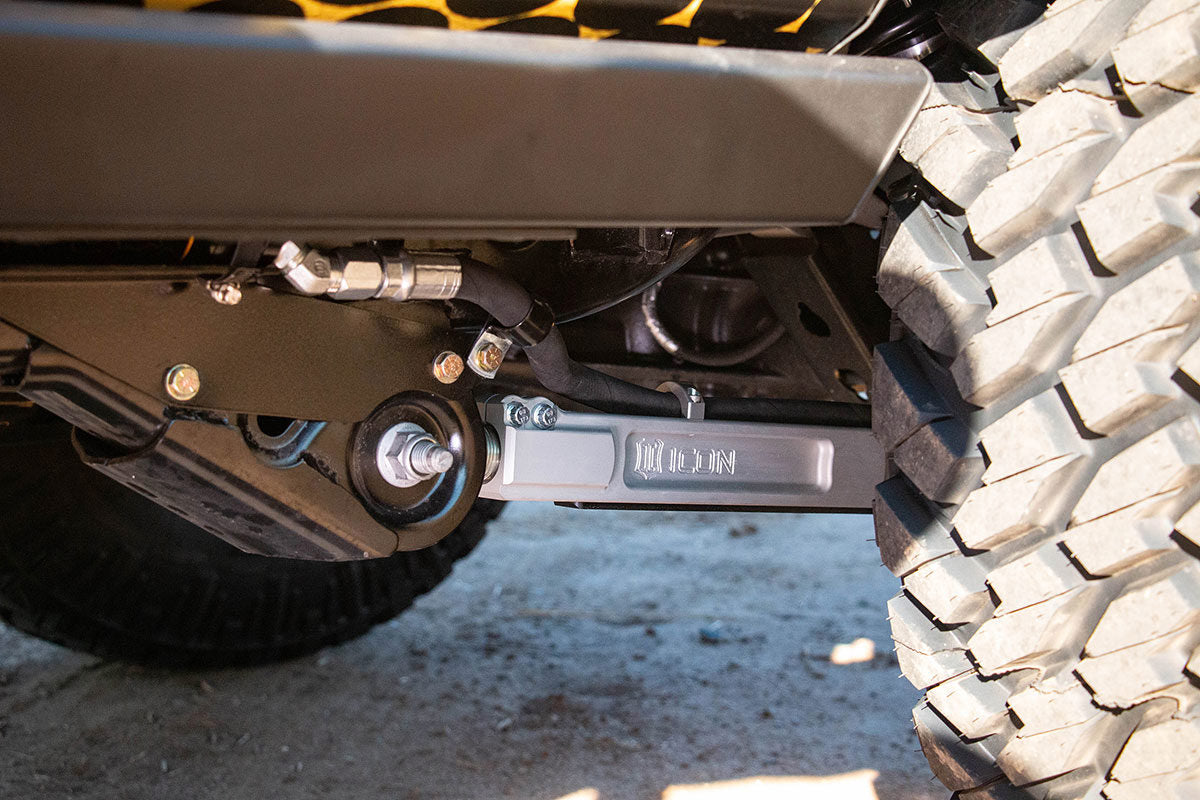

• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
